D is asse m bly

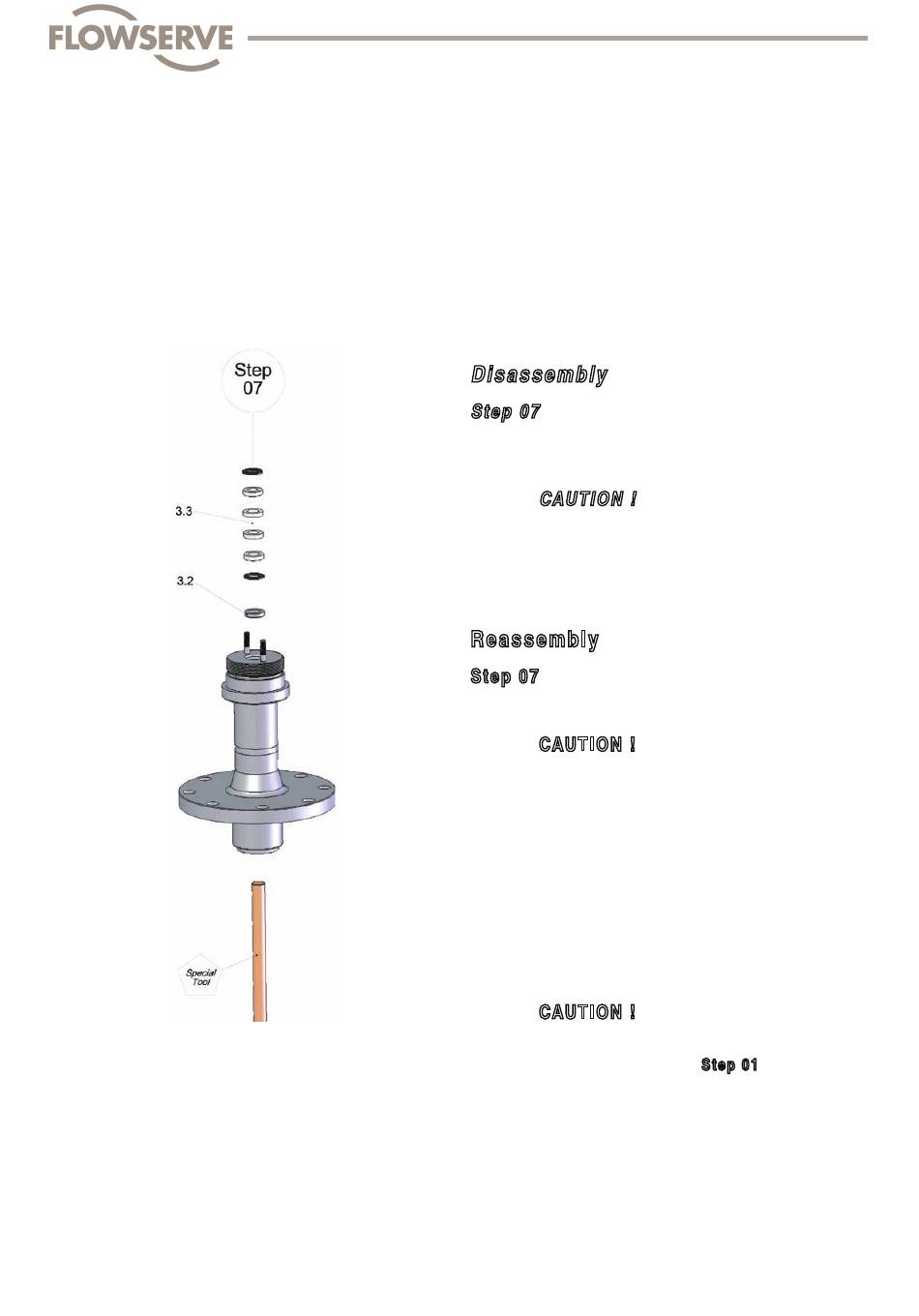

S t ep 07
• Remove packing (3.3) and bottom ring (3.2)
with Special Tool
(Packing driver tool)
CAUT ION !
Do not damage packing area and guide !
R e asse m bly
S tep 07
Reassembly takes place in reverse order.
CAUT ION !
Clean parts, check packing area and guide for
damage, grease stud screws !
( Damage to the packing packing area will lead to early
leaks in the packing unit )
Lubrication as per Table 06 (Page 65)
The packing unit is confi gurated as per the
variant drawing (Page 61 - 63)
Use new packing (3.3) !
• Tighten hexagon nuts (3.6 / 3.9) by hand fi rst
CAUT ION !
The hexagon nuts (3.6 / 3.9) are tightened
at the "Reassembly" step
Schmidt Armaturen
AI - FlowTop
S tep 01
