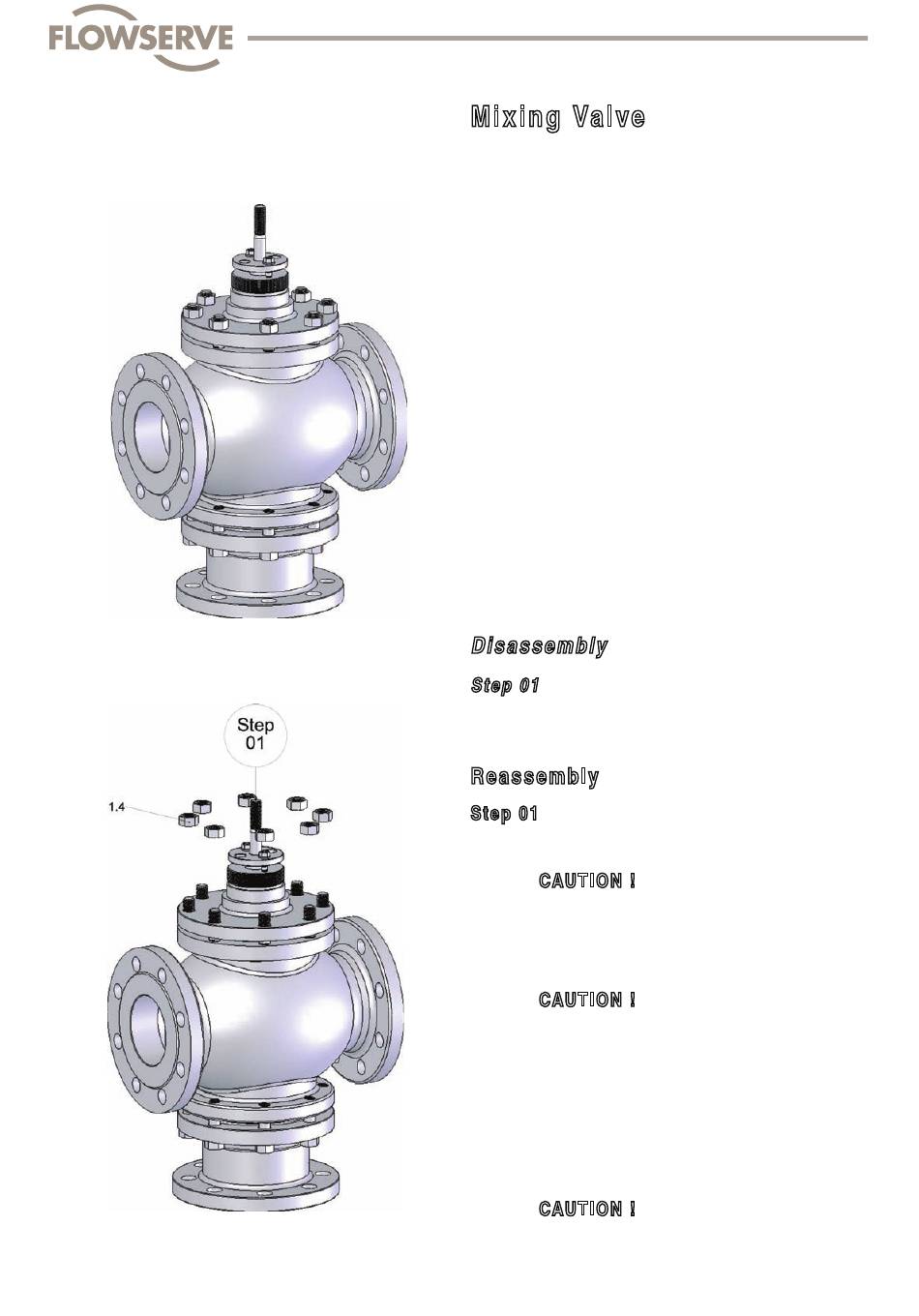

M ix in g Valve
SPM - Code : V7xx WxVNA . . . MOTP2LG
D is asse m bly
S t ep 01
• Unscrew hexagon nuts (1.4)
R e asse m bly
S tep 01
• Grease stud screws
CAUT ION !
Lubrication as per Table 06 (Page 65)
• Screw hexagon nuts in place (1.4) and tighten in a
diagonally opposite sequence using the torque wrench
CAUT ION !
Nut tightening moment (1.4)
as per Table 01 (Page 64)
When tightening the nuts pay attention to the
alignment of the plug (do not rub or insert the
plug in the open / closed movement)
• Tighten the hexagon nuts of the compression gland (3.6)
using the torque wrench
CAUT ION !
Tightening moment of the hexagon nuts (3.6)
as per Variant drawing (Page 61 - 63)
