Flowserve FlowTop V726 Disassembly/Reassembly Instructions page 43

D is asse m bly
S t ep 07
• Remove head piece
CAUT ION !
Ensure it hangs vertically !

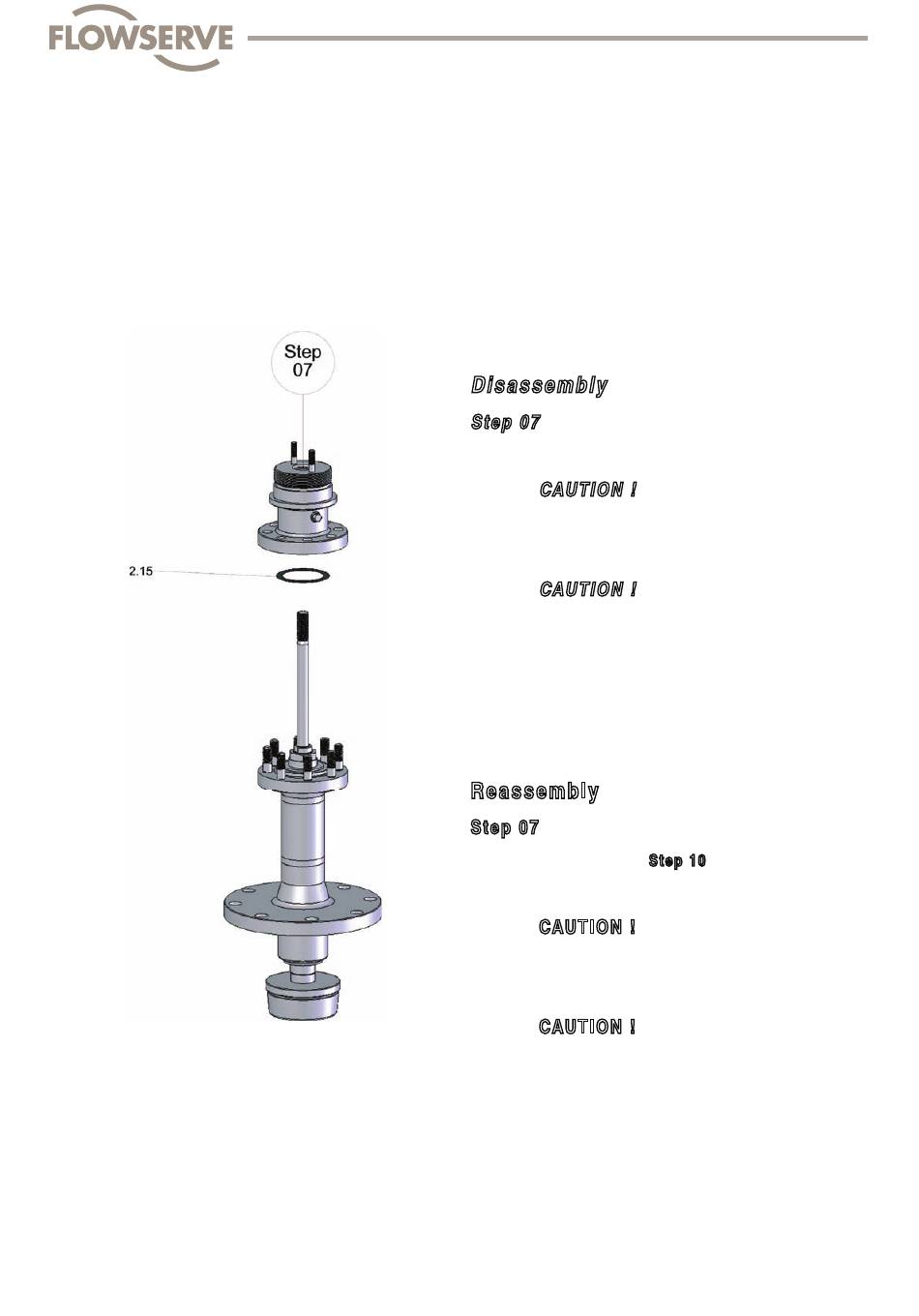

• Remove gasket (2.15)
CAUT ION !
Remove remains of gasket (2.15) in the body
and on the head piece.
Do not damage sealing surface !
R e asse m bly
S tep 07
After work step "Reassembly"
• Insert gasket (2.15)
CAUT ION !
Use new gasket (2.15) !
• Put head piece in place
CAUT ION !
Ensure it hangs vertically !
Schmidt Armaturen
AI - FlowTop
S tep 10
43
