12. Connect the cable from the control module to the left (data-in) connector of
the first SmartPrep and tighten the retaining screws.
Power Supply Filter
13. If you wish to connect an additional SmartPrep, connect one end of the ca-
ble to the right (data-out) connector and the other end of the cable to the
left (data-in) connector of the next SmartPrep. You may connect up to four
SmartPreps in this manner.
14. Install the power supply filter as follows:
a. Insert the tip of a flat-head screwdriver (or similar object) into the grill
b. Insert one of the filters supplied in the SmartPrep kit.
c. Replace the retainer.
Sep 98
Data-In Connector
(Control Module or
previous SmartPrep)

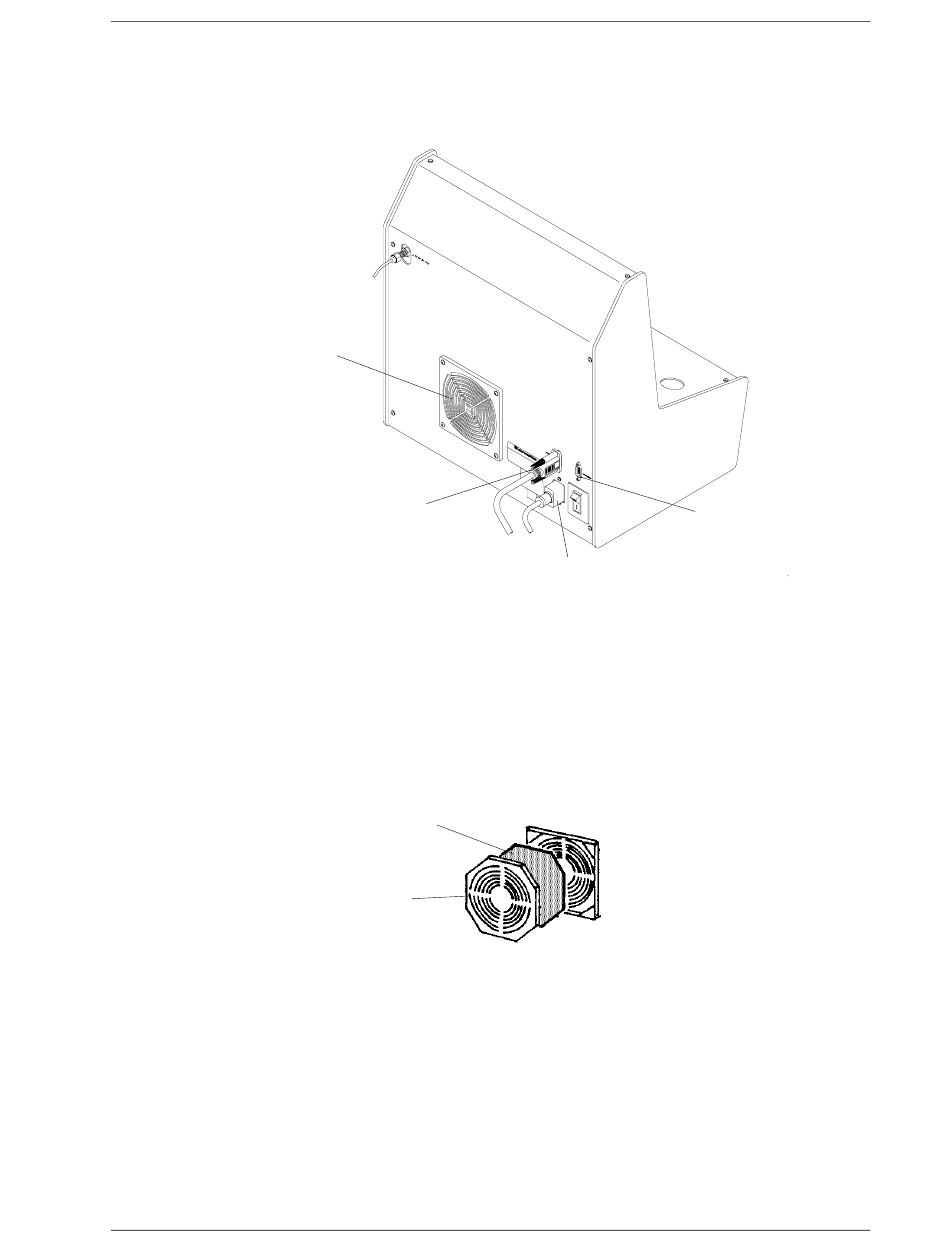

Figure 1-4. Connecting Cables to the Rear Panel
Filter
Retainer
of the retainer and gently pull outward. DO NOT remove the screws on
the plate holding the filter.
Data-Out Connector
(Next SmartPrep)
Power Cord Connector
Installation
1-7
