Mainboard Overview - Bottom (Connectors)

14 13
4
All manuals and user guides at all-guides.com
15
3
12
11
10
9
5
6
7
8
2
1

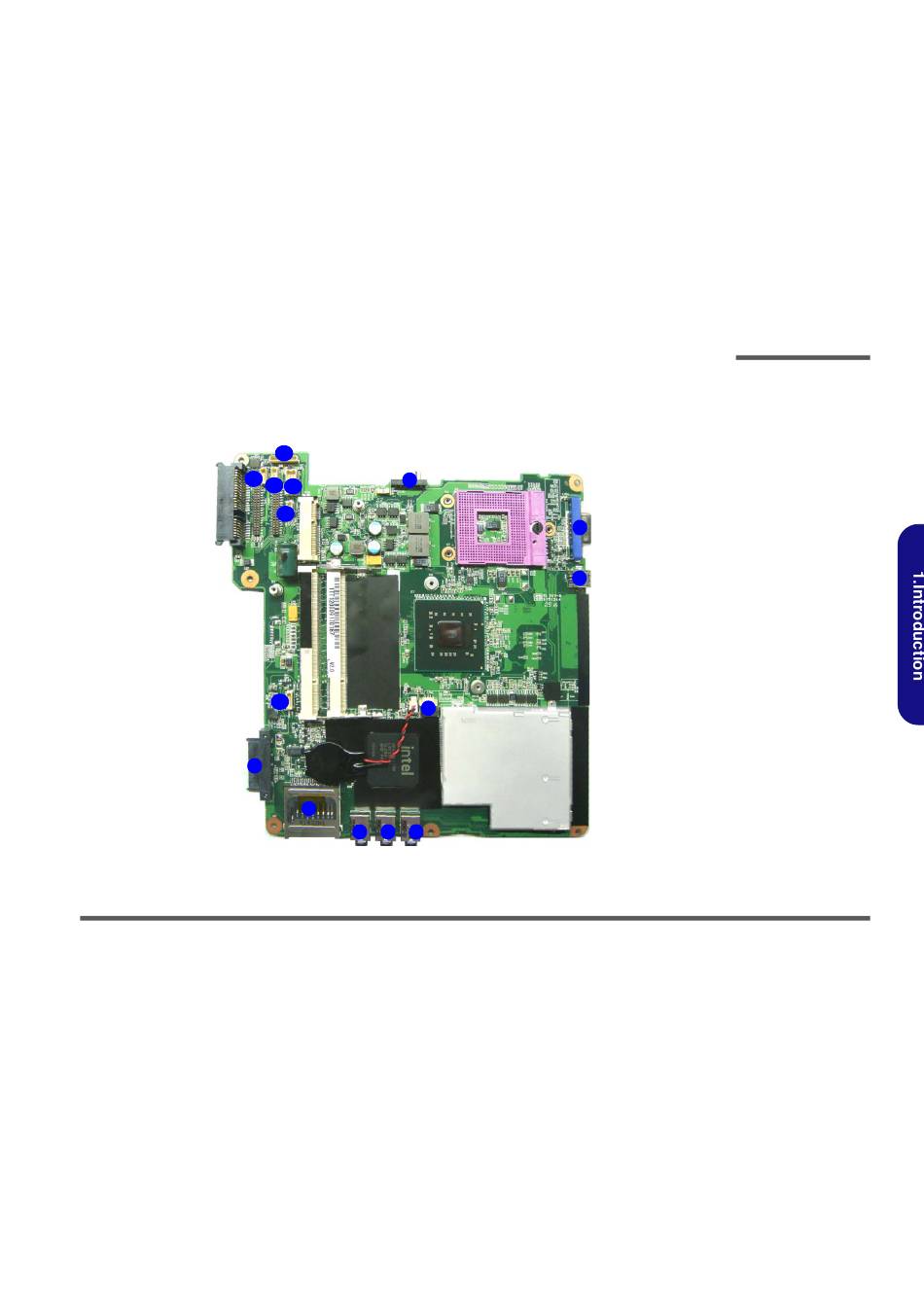

Mainboard Overview - Bottom (Connectors) 1 - 13
Introduction
Figure 10
Mainboard Bottom
Connectors
1. Mini-IEEE 1394 Port
2. External Monitor Port
3. Battery Connector
4. Optical Device Drive
Connector
5. 7-in-1 Card Reader
6. Headphone-Out Jack
7. Microphone-In Jack
8. S/PDIF-Out Jack
9. Fan Cable
Connector
10. Bluetooth Cable
Connector
11. Speaker Cable
Connector
12. LCD Cable
ConnectorDC-In
Jack
13. Inverter Cable
Connector
14. CCD Cable
Connector
15. Fingerprint Cable
Connector
