7. Gently push the two release latches (
arrows
(Figure
d).
8. The RAM module(s)
will pop-up
10
d.
8
9
9. Push the latches to release the second module if necessary.
10. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
11. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
12. Press the module down towards the mainboard until the slot levers click into place to secure the module.
13. Replace the bay cover and the screws
)
-
Figure f
.
14. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
All manuals and user guides at all-guides.com
&
)
on the sides of the memory socket in the direction indicated by the
8
9
(
Figure e
)
, and you can then remove it.
e.
10
(make sure you reconnect the fan cable before screwing down the bay cover
f.
10
Removing the System Memory (RAM) 2 - 11
Disassembly

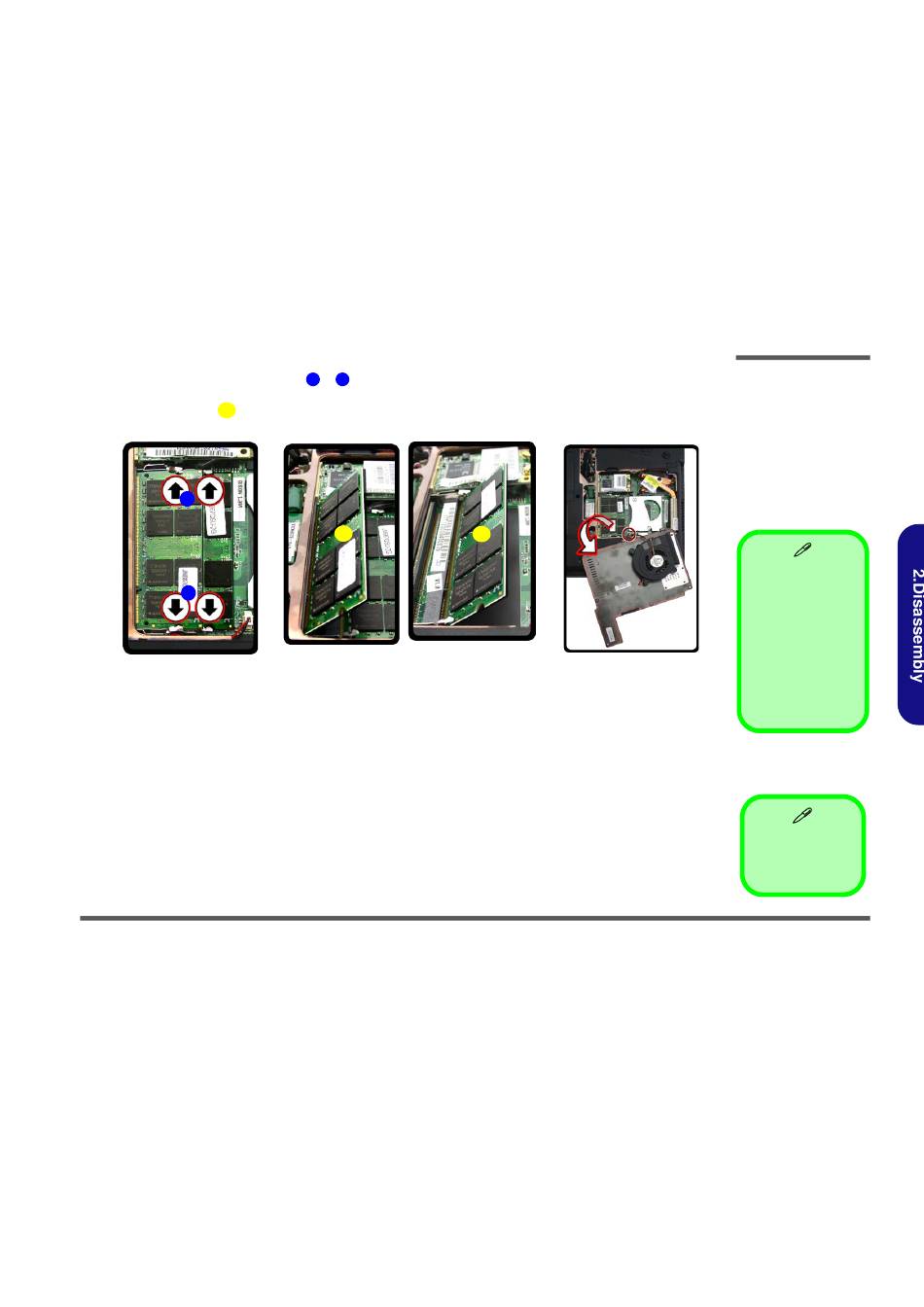

Figure 7
Memory Removal
Sequence
d. Push
the
release
latch(es).
e. Remove the module(s).
f. Make sure you recon-
nect the fan cable.
Single Memory
Module Installation
If your computer has a
single memory module,
then insert the module
into the Channel 0
(JDIMM1) socket. In this
case this is the lower
memory socket (the
socket closest to the
mainboard).
10 RAM Module(s)
