Disassembly
7. Tighten the screws
Figure 10
8. Replace the CPU/RAM bay cover and screws.
Processor Removal
Sequence
f. Tighten the 3 screws in
the order indicated.
In order to prevent damage to the CPU it
is very important that the heat sink screws
are loosened in the correct order.
There are numbers printed on the heat
sink. The order in which the screws
should be loosened, depends on
whether you are removing the CPU, or
installing the CPU.
When INSTALLING the heat sink unit
tighten the screws in the order 1, 2, 3
(as printed on the heat sink). Figure f in-
dicates the correct order to tighten the
screws when installing the heat sink unit.
2 - 14 Removing the Processor
All manuals and user guides at all-guides.com
-

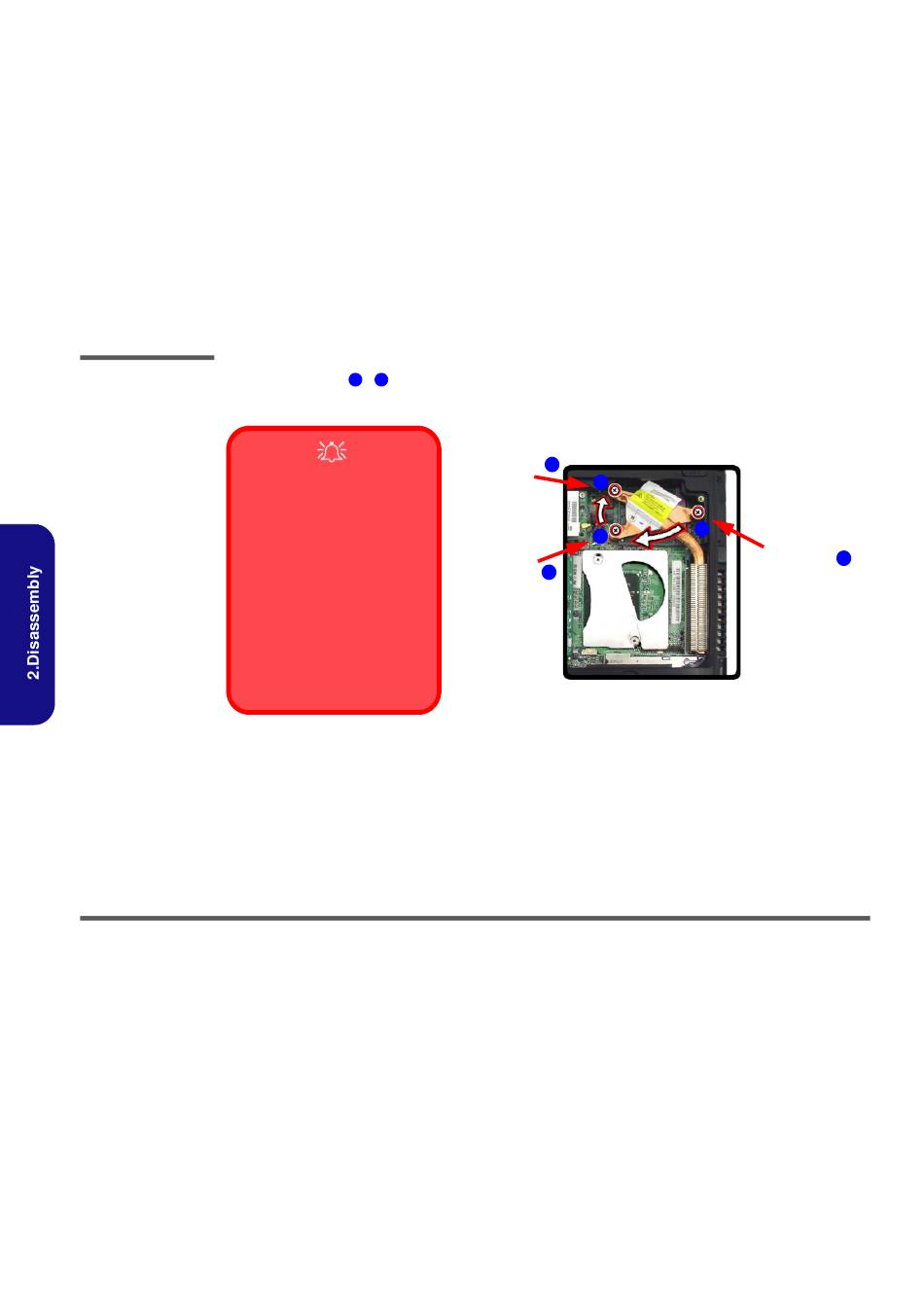

(IN THE ORDER 1, 2, 3 AS INDICATED ON THE HEAT SINK - See below).
1
3
CPU Heat Sink Screws
f. HEAT SINK INSTALLATION
Tighten screw
3
THIRD.
3
2
Tighten screw
2
SECOND.
1
Tighten screw
1
FIRST.
