Mainboard Overview - Bottom (Connectors)

1
2
All manuals and user guides at all-guides.com
3
8
10
9
7
6
5
5
4
Mainboard Overview - Bottom (Connectors) 1 - 11
Introduction

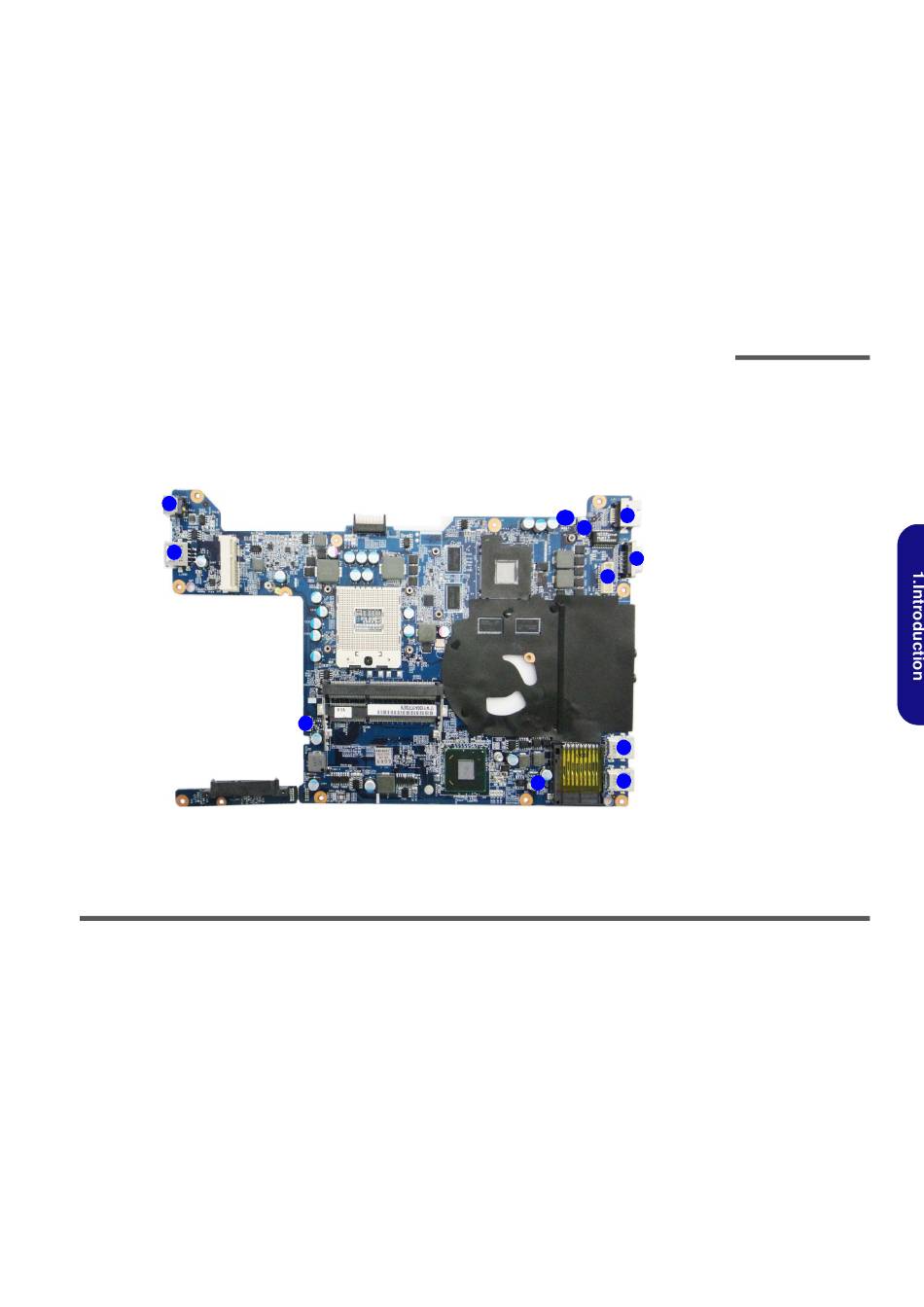

Figure 10
Mainboard Bottom
Connectors
1. DC-In Jack
2. USB 2.0 Ports
3. CMOS Battery
Connector
4. Fan Cable
Connector
5. USB Port
6. LVDS Cable
Connector
7. External Monitor
Port
8. RJ-45 Lan Port
9. CCD Cable
Connector
10. Speaker Cable
Connector
