EUROCOM TN120T Service Manual
  1. Manuals
  2. Brands
  3. EUROCOM Manuals
  4. Laptop
  5. TN120T
  6. Service manual

EUROCOM TN120T Service Manual

Hide thumbs Also See for TN120T:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TN120T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EUROCOM TN120T

Summary of Contents for EUROCOM TN120T

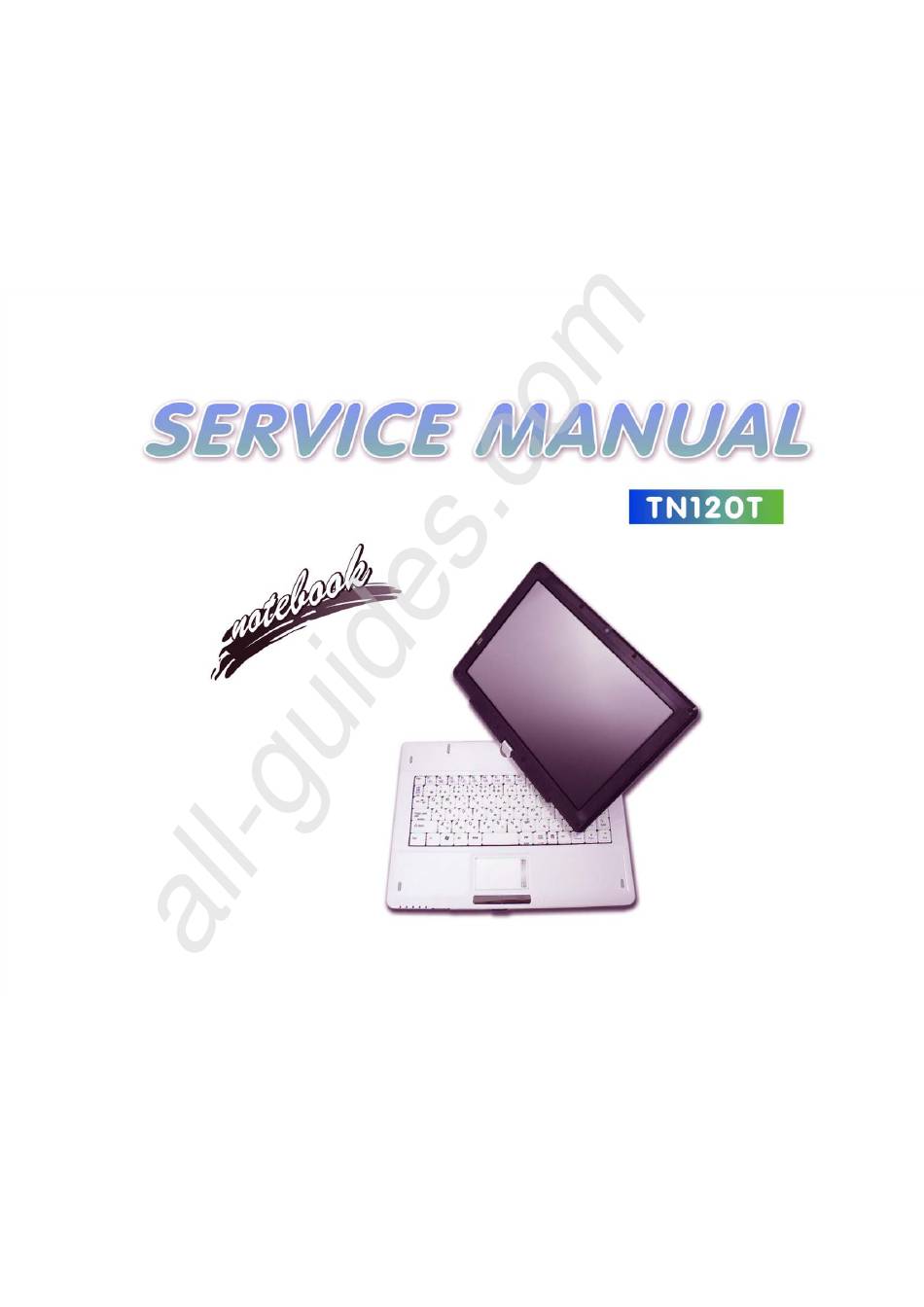

  • Page 1 All manuals and user guides at all-guides.com...
