OPS520 User's Manual
1.2

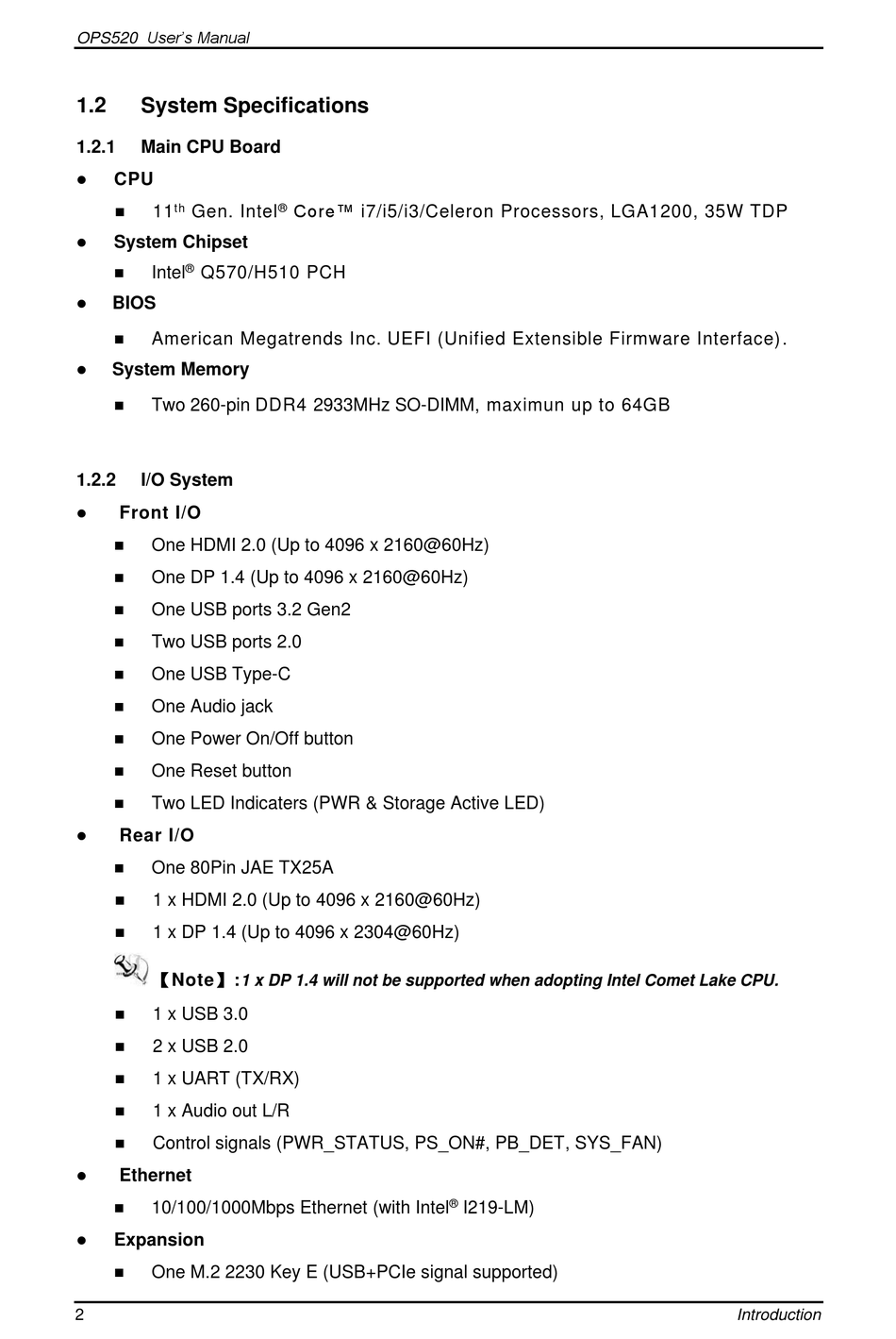

System Specifications

1.2.1

Main CPU Board

⚫ CPU
◼ th
11 Gen. Intel
⚫ System Chipset
®
◼ Intel Q570/H510 PCH
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) .
⚫ System Memory
◼ Two 260-pin DDR4 2933MHz SO-DIMM, maximun up to 64GB
1.2.2

I/O System

⚫ Front I/O
◼ One HDMI 2.0 (Up to 4096 x 2160@60Hz)
◼ One DP 1.4 (Up to 4096 x 2160@60Hz)
◼ One USB ports 3.2 Gen2
◼
Two USB ports 2.0
◼ One USB Type-C
◼ One Audio jack
◼ One Power On/Off button
◼ One Reset button
◼
Two LED Indicaters (PWR & Storage Active LED)
⚫ Rear I/O
◼ One 80Pin JAE TX25A
◼ 1 x HDMI 2.0 (Up to 4096 x 2160@60Hz)
◼ 1 x DP 1.4 (Up to 4096 x 2304@60Hz)
【Note】:
1 x DP 1.4 will not be supported when adopting Intel Comet Lake CPU.
◼ 1 x USB 3.0
◼ 2 x USB 2.0
◼ 1 x UART (TX/RX)
◼
1 x Audio out L/R
◼ Control signals (PWR_STATUS, PS_ON#, PB_DET, SYS_FAN)
⚫ Ethernet
◼ 10/100/1000Mbps Ethernet (with Intel
⚫ Expansion
◼
One M.2 2230 Key E (USB+PCIe signal supported)
2
Core™ i7/i5/i3/Celeron Processors, LGA1200, 35W TDP
®
®
I219-LM)
Introduction
