OPS520 User's Manual
3.1.6

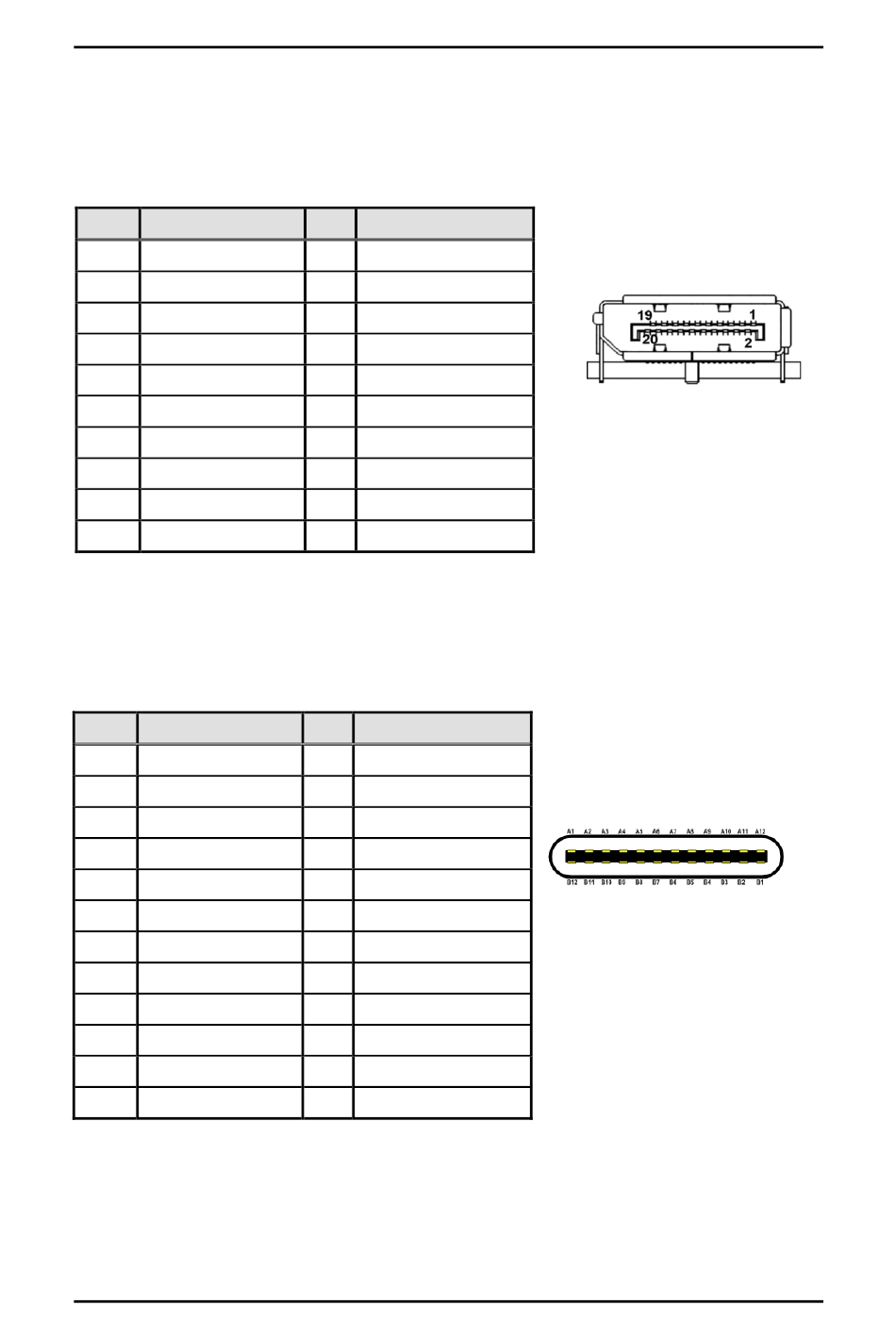

DisplayPort Connector (CN6)

The DP is a digital display interface which is capable of transmitting high-definition video and
high-resolution audio.
Pin Signal
1 DP_DATA0+
3 DP_DATA0-
5 GND
7 DP_DATA2+
9 DP_DATA2-
11 GND
13 NC
15 DP_AUX+
17 DP_AUX-
19 GND
3.1.7

USB3.1 Type-C Port (CN7)

The Universal Serial Bus (compliant with USB 3.1) type C connectors for installing USB
peripherals such as keyboard, mouse, scanner, etc.
Pin Signal
A1 GND
A2 USB3_ SSTX0+
A3 USB3_ SSTX0-
A4 USB3_POWER
A5 NC
A6 USB D0+
A7 USB D0-
A8 NC
A9 USB3_POWER
A10 USB3_ SSRX0-
A11 USB3_ SSRX0+
A12 GND
26
Pin Signal
2 GND
4 DP_DATA1+
6 DP_DATA1-
8 GND
10 DP_DATA3+
12 DP_DATA3-
14 GND
16 GND
18 DP_HPD
20 +3.3V
Pin Signal
B1 GND
B2 USB3_ SSTX1+
B3 USB3_ SSTX1-
B4 USB3_POWER
B5 NC
B6 USB D0+
B7 USB D0-
B8 NC
B9 USB3_POWER
B10 USB3_ SSRX1-
B11 USB3_ SSRX1+
B12 GND
Connectors
