3.1.1

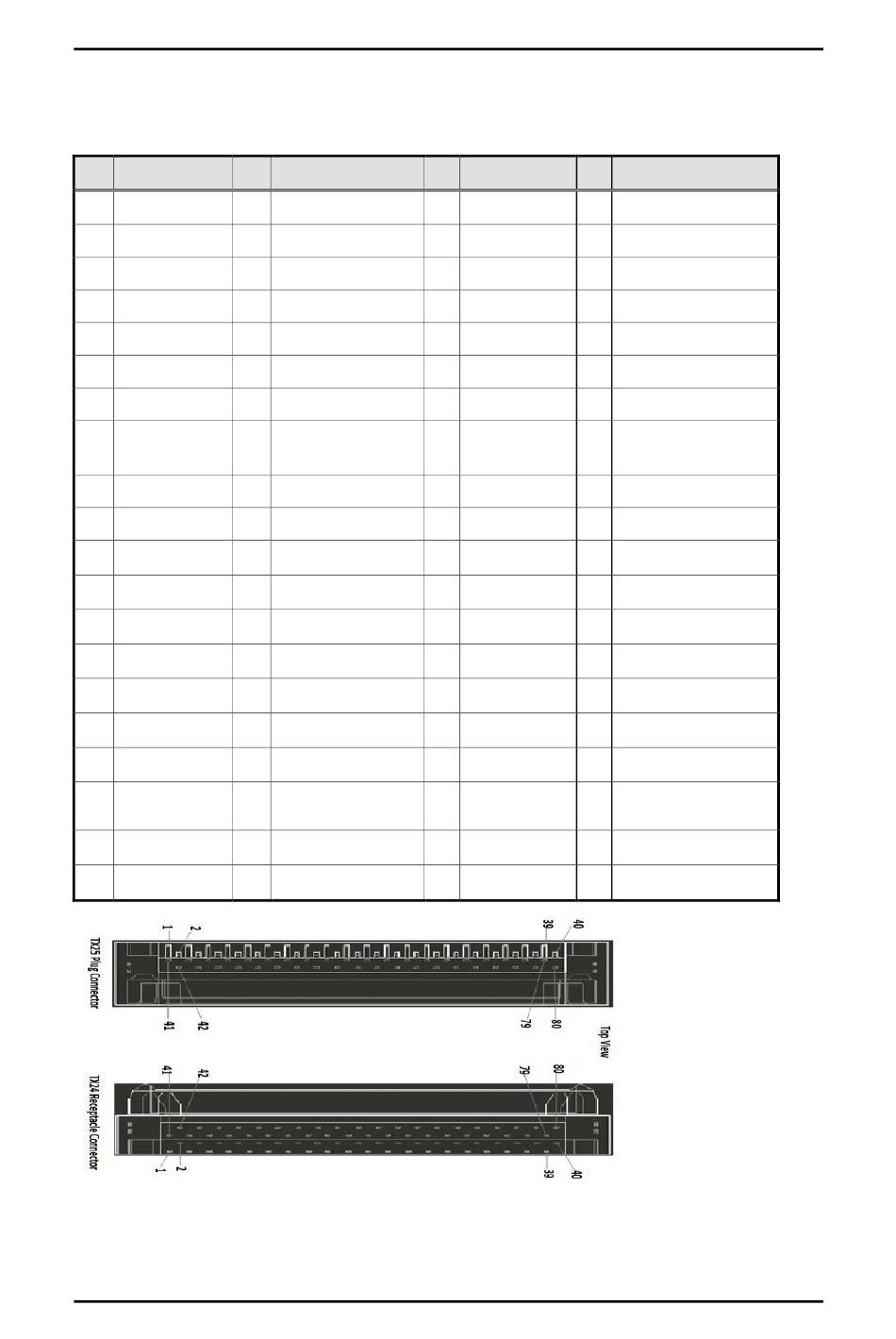

JAE TX25A Connector (CN1)

Connector JAE TX25A CN1 is for JAE improced interface supported.
Pin Signal Pin Signal
1 DDP_3N
5 DDP_2P
9 GND 10 DDP_0N
13 DDP_AUXN 14 DDP_AUXP
17 TMDS_CLK- 18 TMDS_CLK+
21 TMDS0+ 22 GND
25 GND 26 TMDS2-
DVI_DDC_DAT
29 30 DVI_DDC_CLK
A
33 +12V~+19V 34 +12V~+19V
37 +12V~+19V 38 +12V~+19V
41 RSVD 42 RSVD
45 RSVD 46 RSVD
50 SYS_FAN
49 SLP_S3
53 GND 54 StdA_SSRX-
57 StdA_SSTX- 58 StdA_SSTX+
61 USB_PP2 62 GND
65 GND 66 USB_PN0
AZ_LINEOUT_
70 AZ_LINEOUT_R
69
L
73 PS_ON# 74 PWR_STATUS
77 GND 78 GND
Connectors
2 DDP_3P
6 GND
Pin Signal Pin Signal
3 GND 4 DDP_2N
7 DDP_1N 8 DDP_1P
11 DDP_0P 12 GND
15 DDP_HPD 16 GND
19 GND 20 TMDS0-
23 TMDS1- 24 TMDS1+
27 TMDS2+ 28 GND
31 DVI_HPD 32 GND
35 +12V~+19V 36 +12V~+19V
39 +12V~+19V 40 +12V~+19V
43 RSVD 44 RSVD
47 RSVD 48 RSVD
51 UART_RXD 52 UART_TXD
55 StdA_SSRX+ 56 GND
59 GND 60 USB_PN2
63 USB_PN1 64 USB_PP1
67 USB_PP0 68 GND
71 NC 72 PB_DET
75 GND 76 GND
79 GND 80 GND
