OPS520 User's Manual

1.3

Mechanical Assembly

1.3.1

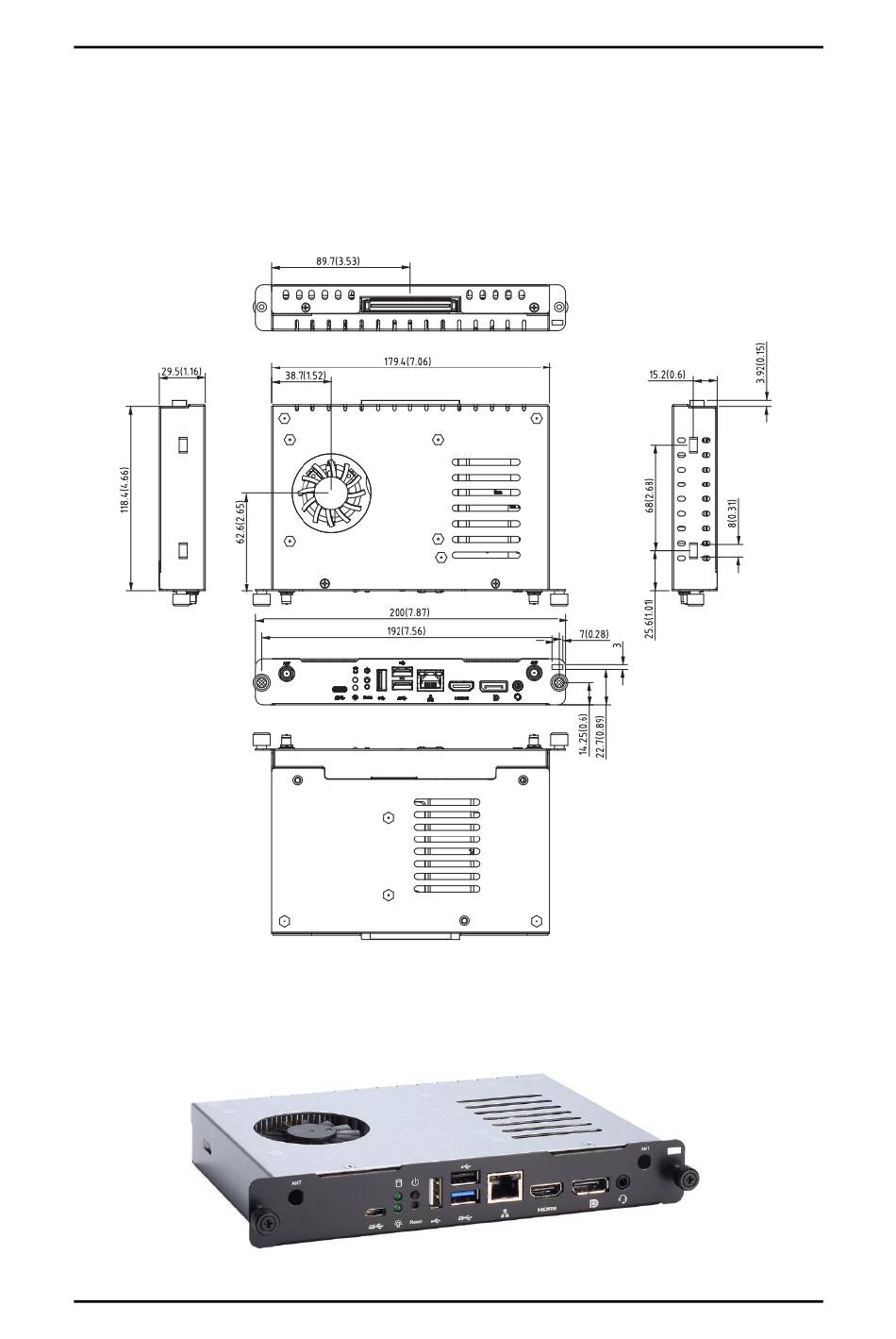

This diagram shows you dimensions and outlines of the OPS520 Series

The overall dimension of the module including the mounting frame is 200mm x 119mm x

30mm, and it shows the location of the screw holes of front panel as well as the security lock.

※ While plugging the OPS module, please make sure the heat sink side of OPS

module toward the outside. Axiomtek will be out of reasonability if there is any

damage occurred due to it.
