2.2
Pluggble Module Method
NOTE: Please contact Axiomtek for the available option display

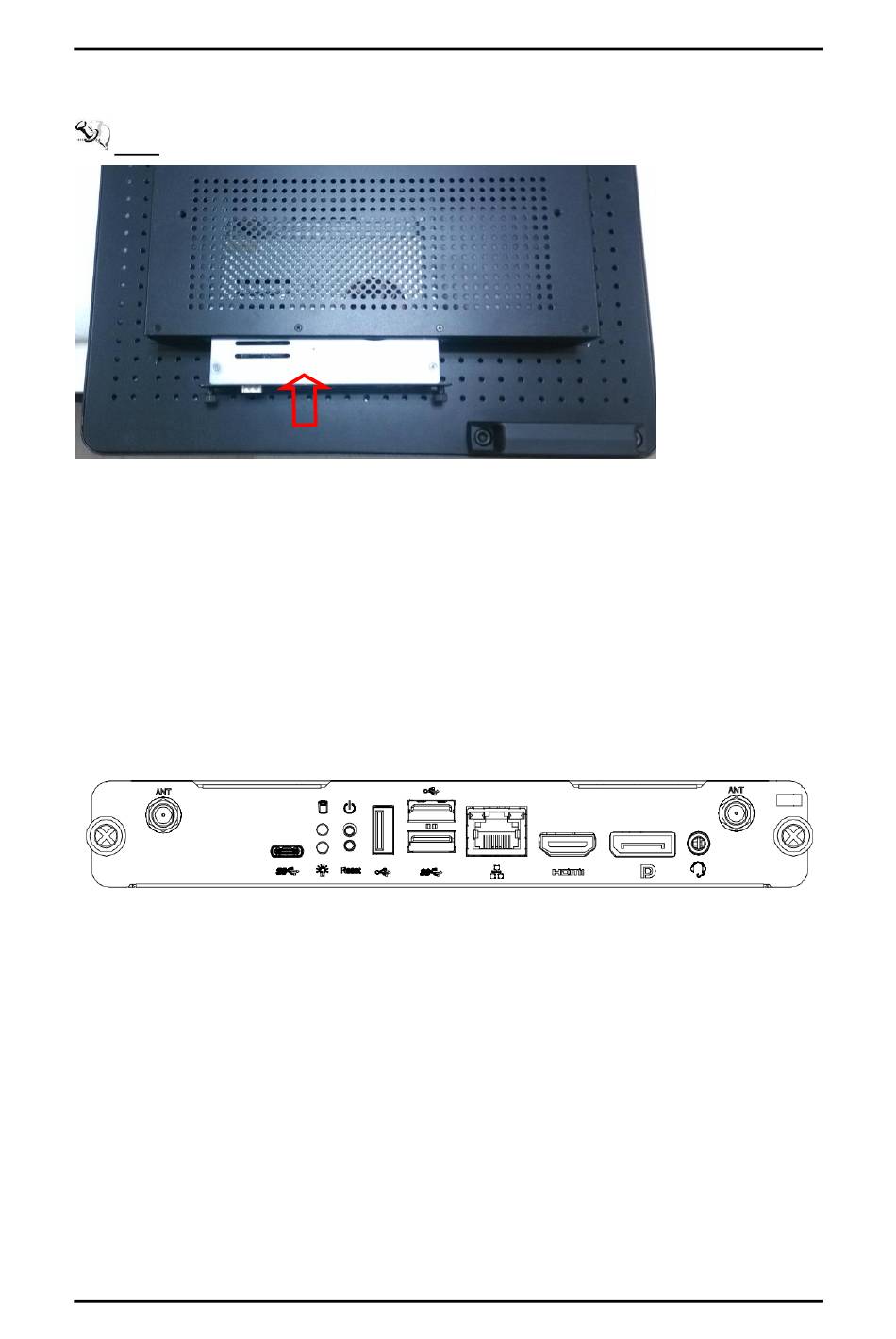

Step 1
Pluggable the box into display
Caution: When plugging OPS520 Series module into an OPS display, make sure the
module's heat sink is facing outside of the display. Axiomtek is not
responsible for any damage caused by wrong installation
Step 2
Fasten the screws as illustrated.
Hardware Installation
OPS520 User's Manual
.
19
