OPS520 User's Manual
Step 3

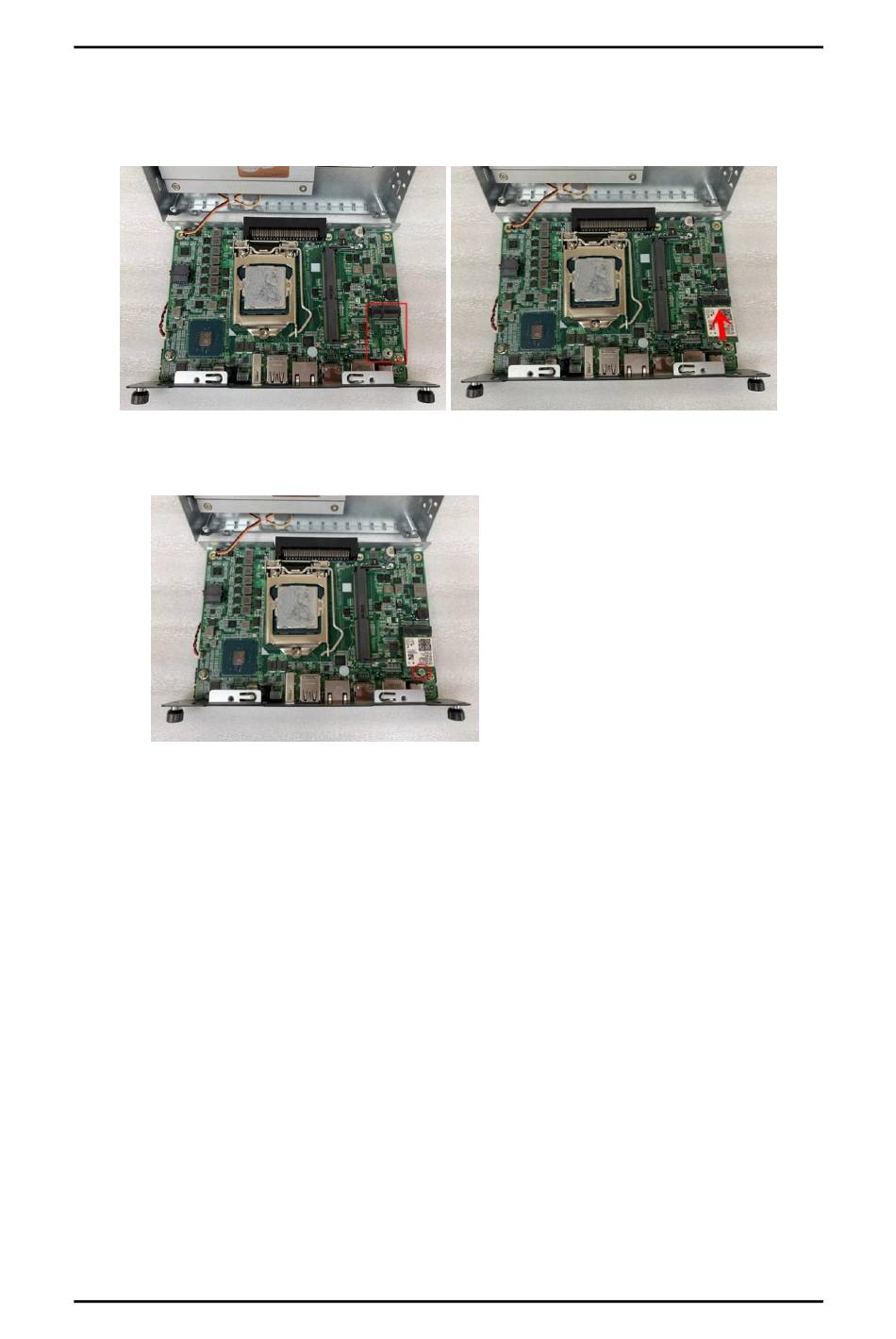

Locate the M.2 2230 Key E slot on the board. And holding the M.2 2230 Key E
card at a 30 degree angle up from horizontal, slowly insert the golden fingers
into the M.2 2230 Key E slot until it is fully inserted in.
Step 4
Then secure the M.2 2230 Key E Wi-Fi Module to the carrier by tightening up
the one M3*4L pan head screw to the marked position.
18
Hardware Installation
