OPS520 User's Manual

Step 3

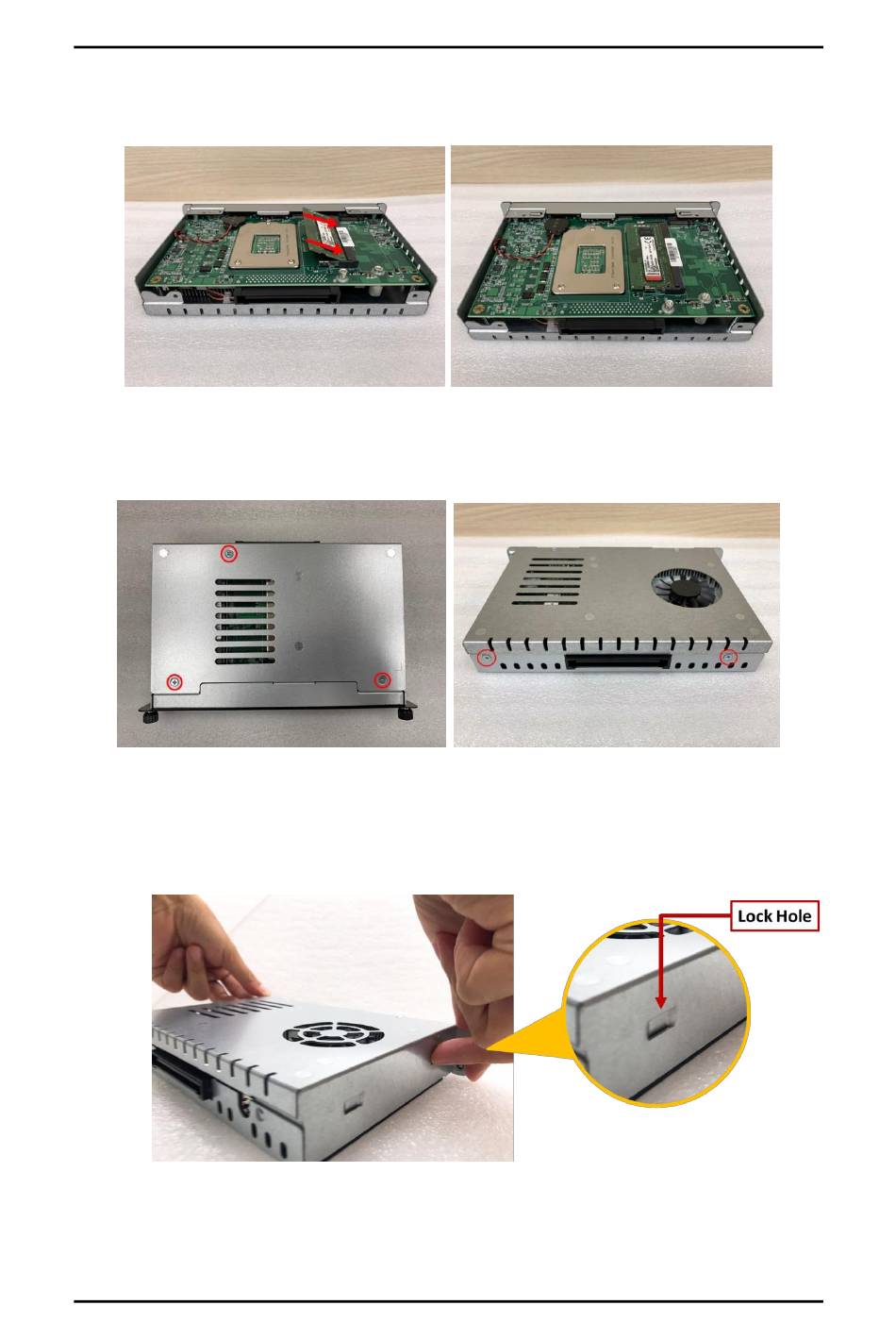

Place the memory module into the socket and press it firmly. The socket

latches are levered upwards and clipped on to the edges of the SO-DIMM.

2.1.2

DDR4 SO-DIMM DRAM Installation (SO-DIMM 2)

Step 1

Locate screws at the chassis as red marked and loosen four screws.

Step 2

To open the upper case, please hold the system with your middle fingers at

the Lock Hole, and put your thumbs at the edge of the front panel, then use

your thumbs press enough force at the edge of the front panel (①red arrow in

the second figure below), meanwhile; lift up the upper case with your middle

fingers (②blue arrow in the second figure below).

Hardware Installation
