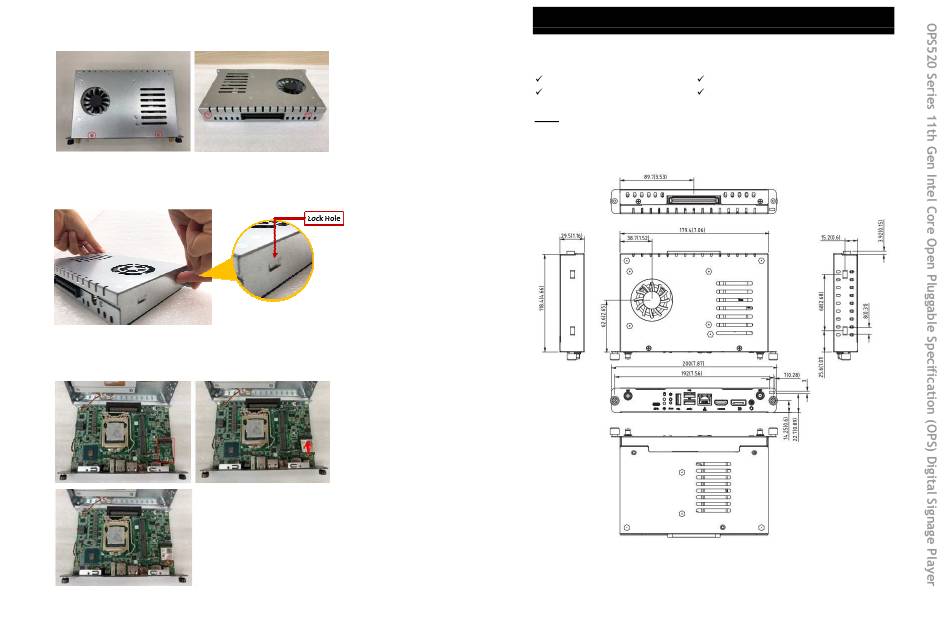

Wireless Module (M.2 Key E Card)

Step 1

Locate screws at the chassis and loosen four screws.

Step 2

Hold the system with your middle fingers at the Lock Hole,

and use your thumbs press enough force on the front panel,

meanwhile; lift up the upper case with your middle fingers.

Step 3

Slowly insert the M.2 Key E card into the M.2 slot until it is

fully inserted. Then secure the M.2 Wi-Fi Module to the

carrier.

9412M520000E

Version A1 April 2021

Printed in Taiwan

OPS520 Quick Installation Guide

Checklist

OPS module x 1

Quick Installation Guide x 1

M.2 thermal pad x 1

Thermal Grease x 1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Dimensions

9412M520000E

Version A1 April 2021

Printed in Taiwan

Need help?

Do you have a question about the OPS520 and is the answer not in the manual?

Page 1 Wireless Module (M.2 Key E Card) OPS520 Quick Installation Guide Step 1 Locate screws at the chassis and loosen four screws. Checklist OPS module x 1 Quick Installation Guide x 1 M.2 thermal pad x 1 Thermal Grease x 1 Note: Please contact your local vendors if any damaged or missing items.
Page 2 Place the memory module into the socket and press it firmly. The socket latches are levered upwards and clipped on to the edges of the SO-DIMM. Note: Please be informed that you can get more detail information in OPS520 user’s manual. 9412M520000E 9412M520000E ©...
