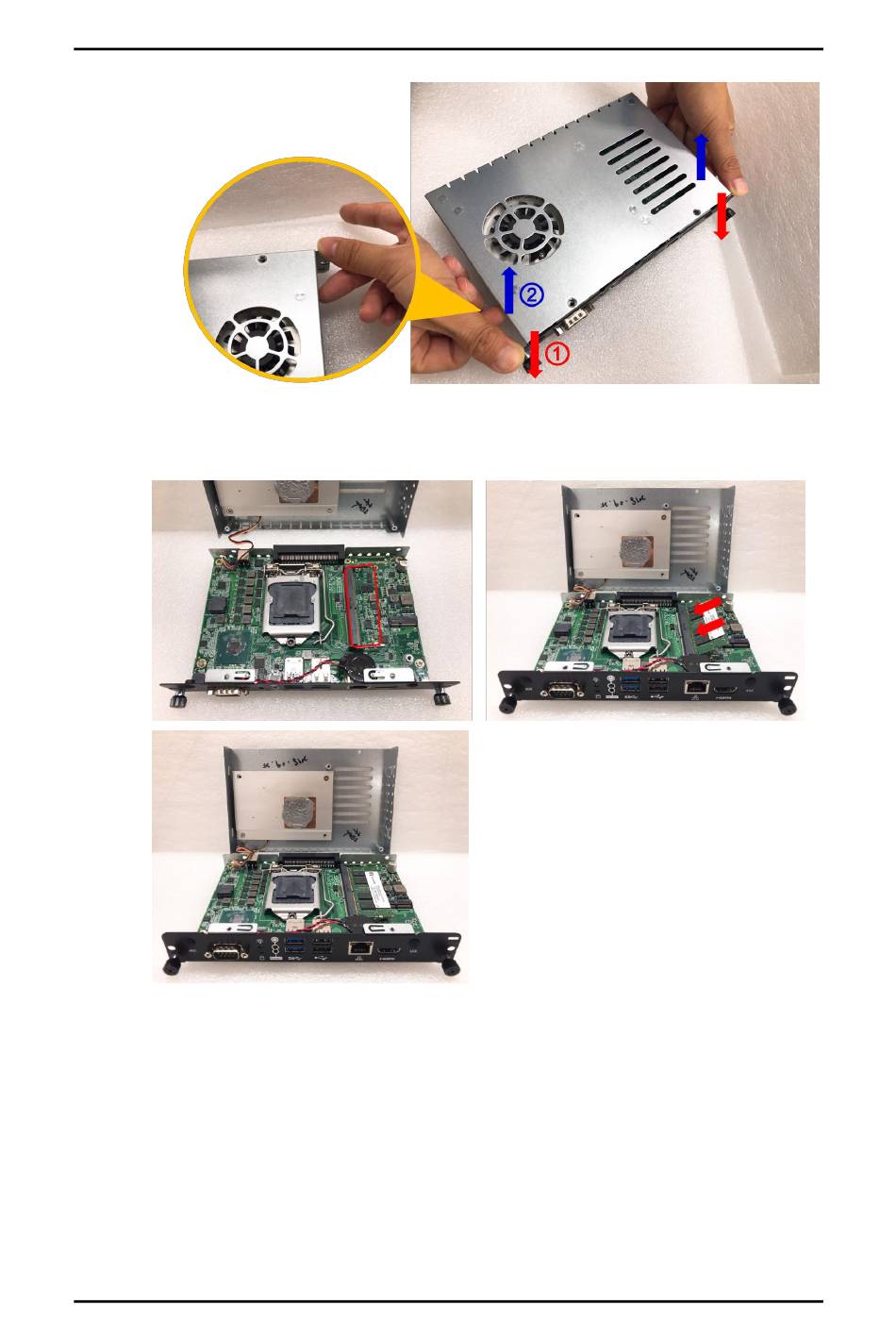

Step 3
Place the memory module into the socket and press it firmly. The socket
latches are levered upwards and clipped on to the edges of the SO-DIMM.
Hardware Installation
OPS520 User's Manual
15
