OPS520 User's Manual

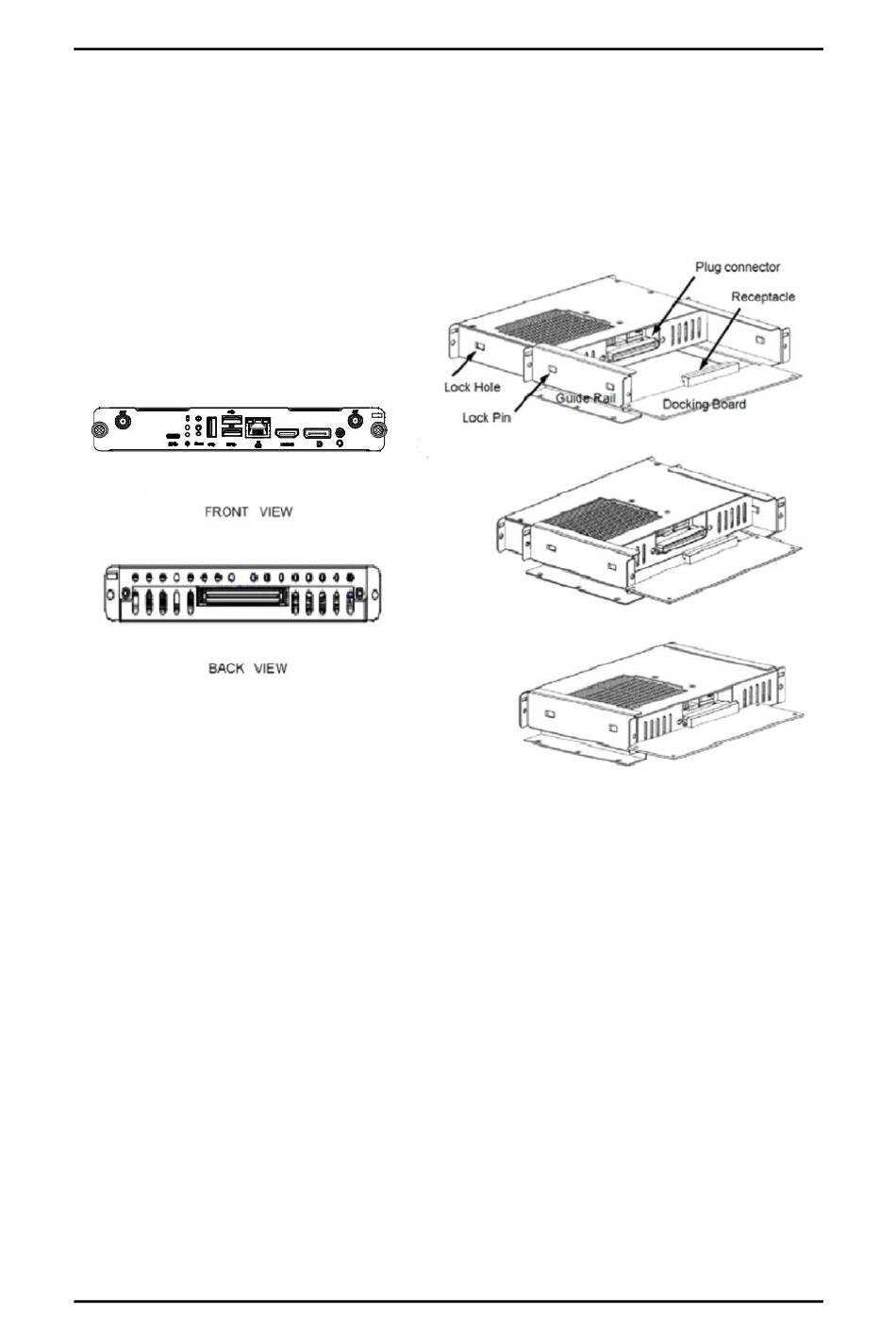

The Guide Rail Mechanism for the OPS520 Series Module
You can use the rails alongside of OPS520 Series Module to dock and undock the plug
connector at the back of the module to connect with docking board. There are two lock pins
on each side of the rail, and they serve as the locking mechanism to attach the lock holes on
the series module.
7
