3.1.8

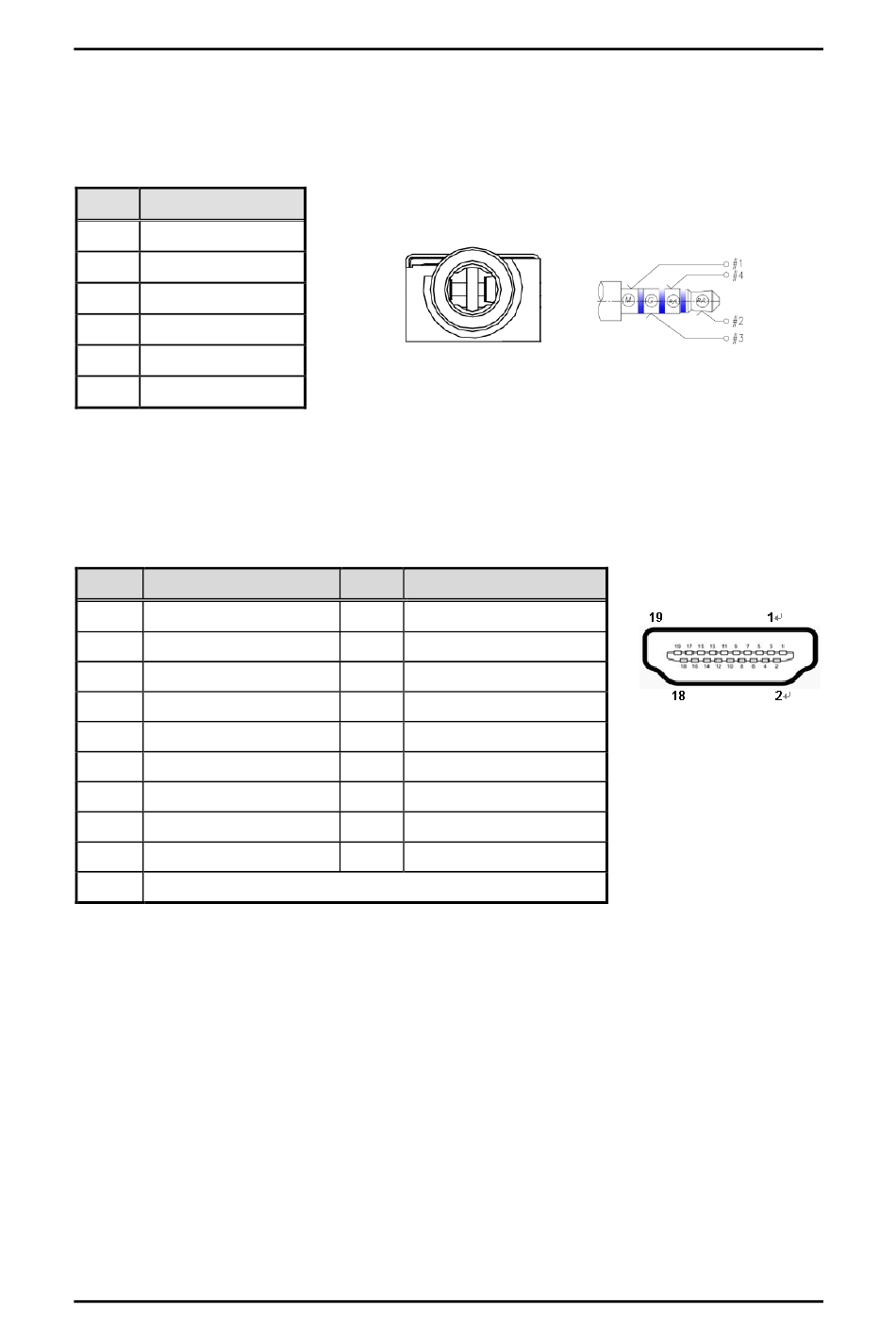

Audio Combo Jack (CN8)

The system provides one HD audio 4-poles jack headset connector.
Pin Signal
1 SLEEVE
2 LINE_L
3 RING
4 LINE_R
5 GND
6 HPOUT_JD
3.1.9

HDMI Connector (CN9)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single cable.
Pin Signal
1 HDMI OUT_DATA2+
3 HDMI OUT_DATA2-
5 GND
7 HDMI OUT_DATA0+
9 HDMI OUT_DATA0-
11 GND
13 N.C.
15 HDMI OUT_SCL
17 GND
19 HDMI_HTPLG
Connectors
Pin Signal
2 GND
4 HDMI OUT_DATA1+
6 HDMI OUT_DATA1-
8 GND
10 HDMI OUT Clock+
12 HDMI OUT Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
