Wire the Communicator
When connecting component wires, route all wires so they will not interfere with the tamper switch. See Figures 2
and 3 for wire routing options.
Connect the Antenna
Place the antenna onto the SMA connector. Refer back to Figure 1a or 1b. Twist the antenna until it is securely
tightened.
Replace the housing cover on the mounted base. Be sure to not damage any PCB components when removing or
replacing the housing cover.
Tamper
Wiring
Tamper
DualCom Programming and Installation Guide
Wiring

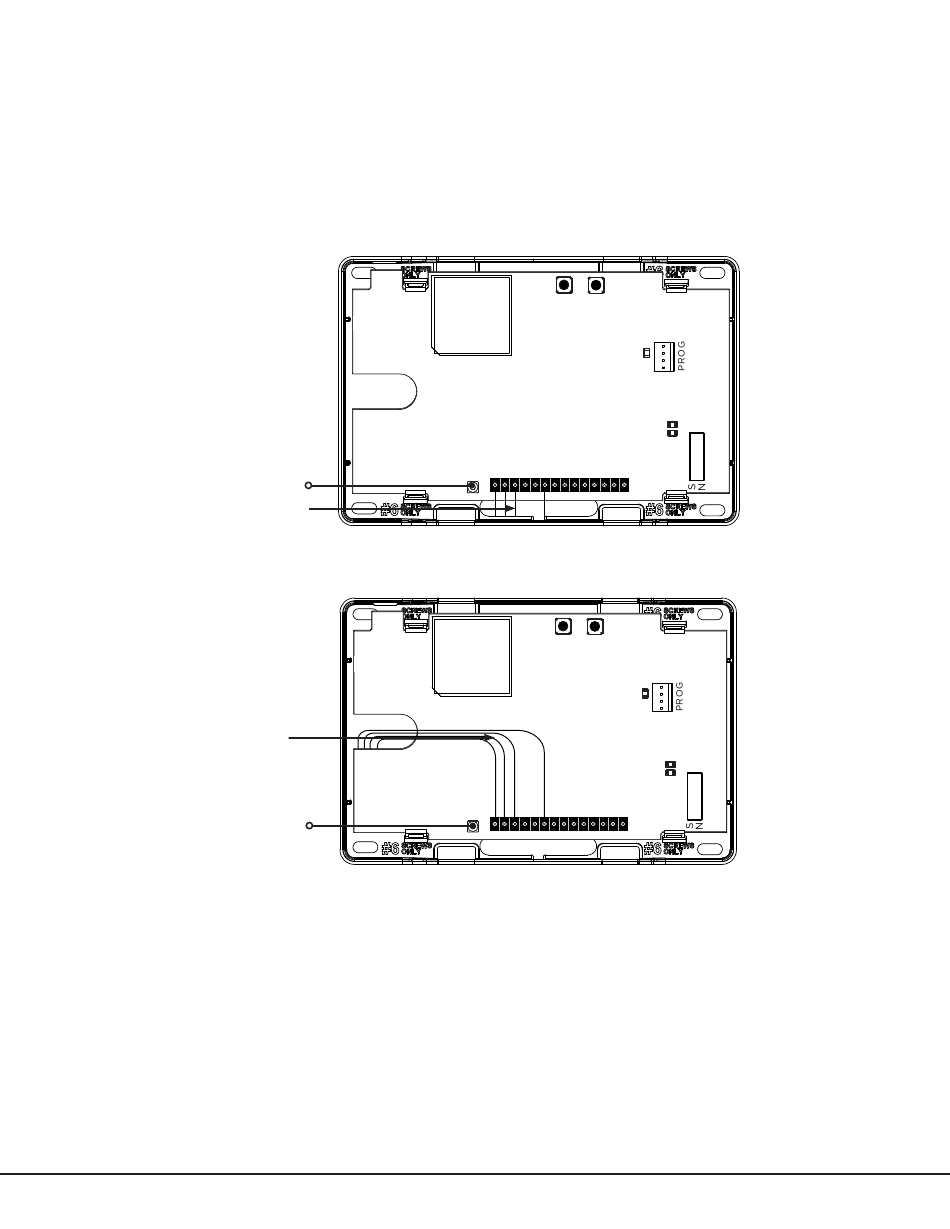

Figure 2: Wire Routing Option One
Figure 3: Wire Routing Option Two
LOAD RESET
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
LOAD RESET
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
