INSTALLATION
Select a Location
Install the communicator away from metal objects. Do not mount the communicator inside or on a control panel metal
enclosure. Mounting the communicator on or near metal surfaces impairs cellular performance.
Mount the Communicator
The communicator should be mounted to a wall using the included #6 screws in the mounting holes. See Figure 1a
and 1b. Mount the communicator in a secure, dry place to protect the communicator from damage due to tampering
or the elements. It is not necessary to remove the PCB when installing the communicator.
Cellular
Antenna
SMA
Connector
Network
Connection
Tamper

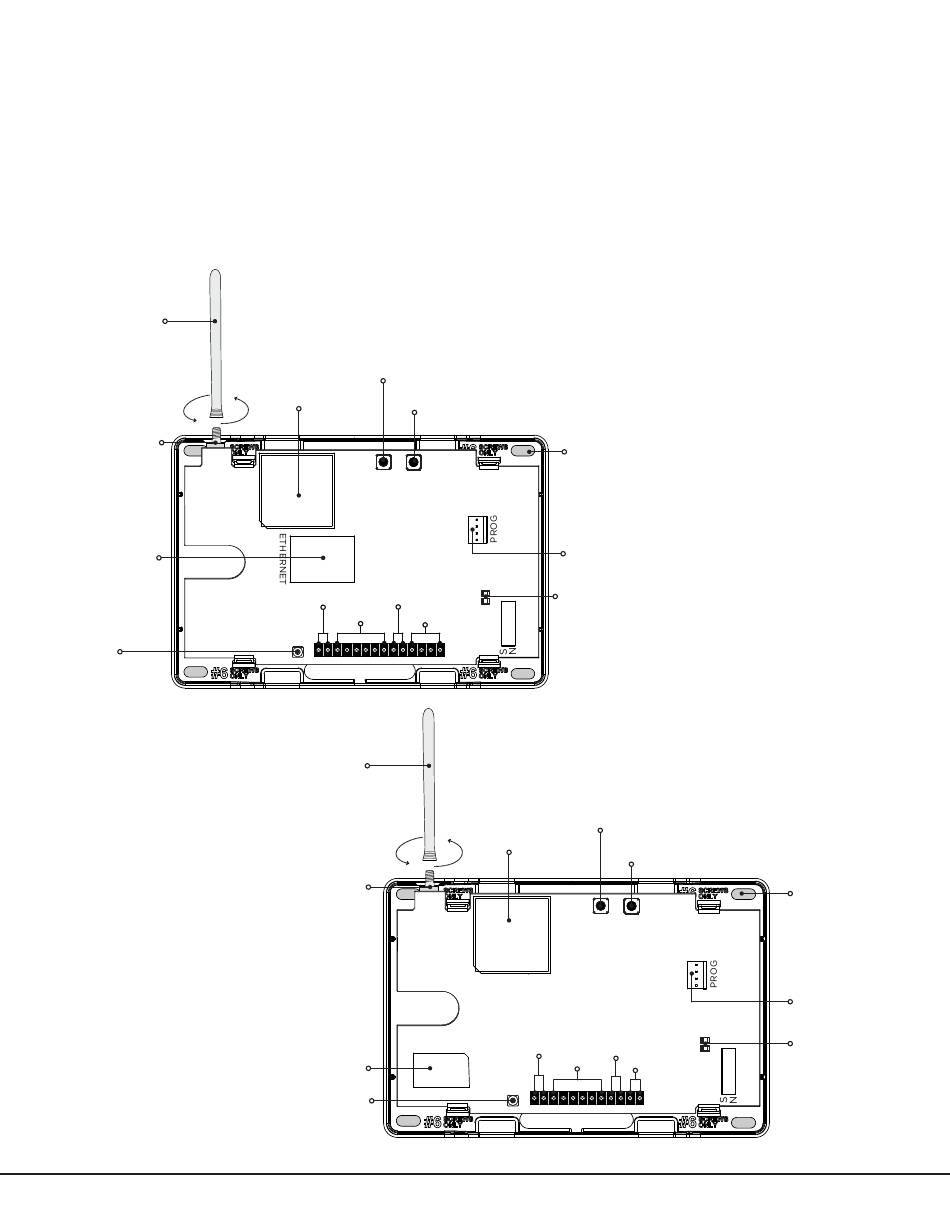

Figure 1a: DualComNF System Components
Digital Monitoring Products
4
Load
Button
Cell
Reset
Modem
Button
LOAD RESET
DC Power
Outputs
Zones 1-4
Tip & Ring
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
Cellular
Antenna
SMA
Connector
Wi-Fi
Tamper
Figure 1b: DualComWZ System Components
Mounting
Hole
Programming
Connection
Backlit Logo,
Power/Armed
LEDs
Load
Cell
Button
Modem
Reset
Button
LOAD RESET
DC Power
Outputs
Tip & Ring
Zones 1-4
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1
DualCom Programming and Installation Guide
Mounting
Hole
Programming
Connection
Backlit Logo,
Power/Armed
LEDs
