BEFORE YOU BEGIN
This guide provides compliance information for the DualCom Series Universal Alarm Communicator. Read through the
contents of this guide before starting the installation process. It describes the functions along with available installation
options. Information contained in this guide allows you to learn the operation, functionality, and programming features of
the communicator to meet specific applications.

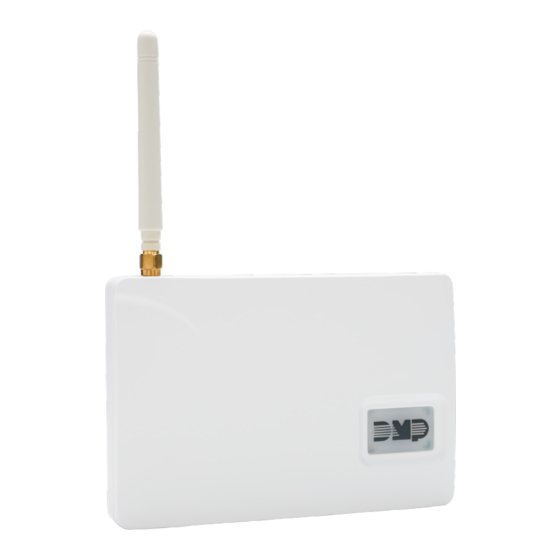

The DualCom Series Universal Alarm Communicator provides a fully supervised alarm communication path for
commercial control panels. This section applies to the following models:
• DualComNF
• DualComNF-FN
• DualComN
PROGRAMMING REQUIREMENTS
Notice to users, installers, authorities that have jurisdiction, and other involved parties: This product incorporates
field-programmable software. In order for the product to comply with the requirements of a certificated installation,
certain programming features or options must be limited to specific values or not used at all as indicated below.
Program feature or option
System Reports, RESTORAL
Communication, CHECKIN MINUTES
Communication, FAILTIME MINUTES
COMMERCIAL FIRE INSTALLATION
CID Dialer Connection
Directly connect both tip and ring terminals from the control panel to the communicator. See Figure 1. This
connection captures Contact ID messages from any fire panel that are based on the SIA communication standard
DC-05-1999.09-DCS. Messages are then formatted into a Serial 3 message and sent to an SCS-1R Receiver or
SCS-VR Receiver.
Communication Failure
The phone line voltage on the second tip and ring will drop when DualComNF is in a communication failure state. This
triggers the host panel to annunciate a communication failure. When communications have restored on DualComNF,
voltage will be restored on the second tip and ring terminal, allowing the host panel to see a restoral on the phone line.
Switch
Control Panel
The panel or separate power
supply must be listed for fire,
regulated, and power limited.
12/24 VDC Aux. Output
Ground
BELL +
BELL -
Telephone
Jack
Connector
Telephone
Jack
Connector
SERIES UNIVERSAL ALARM
TM
Cellular Communicator with Network/LTE for Commercial Fire
Cellular FirstNet Communicator with Network/LTE for Commercial Fire
Cellular Communicator with Network/LTE for Commercial Burglary
Standard
ANSI/UL 864
ANSI/UL 864
ANSI/UL 864
Use 18-22 AWG for
power supply connection
+
-
If FACP only has one phone line, connect to T2, R2
Wiring to FACP shall be connected within 20 ft in the same room and routed in conduit.

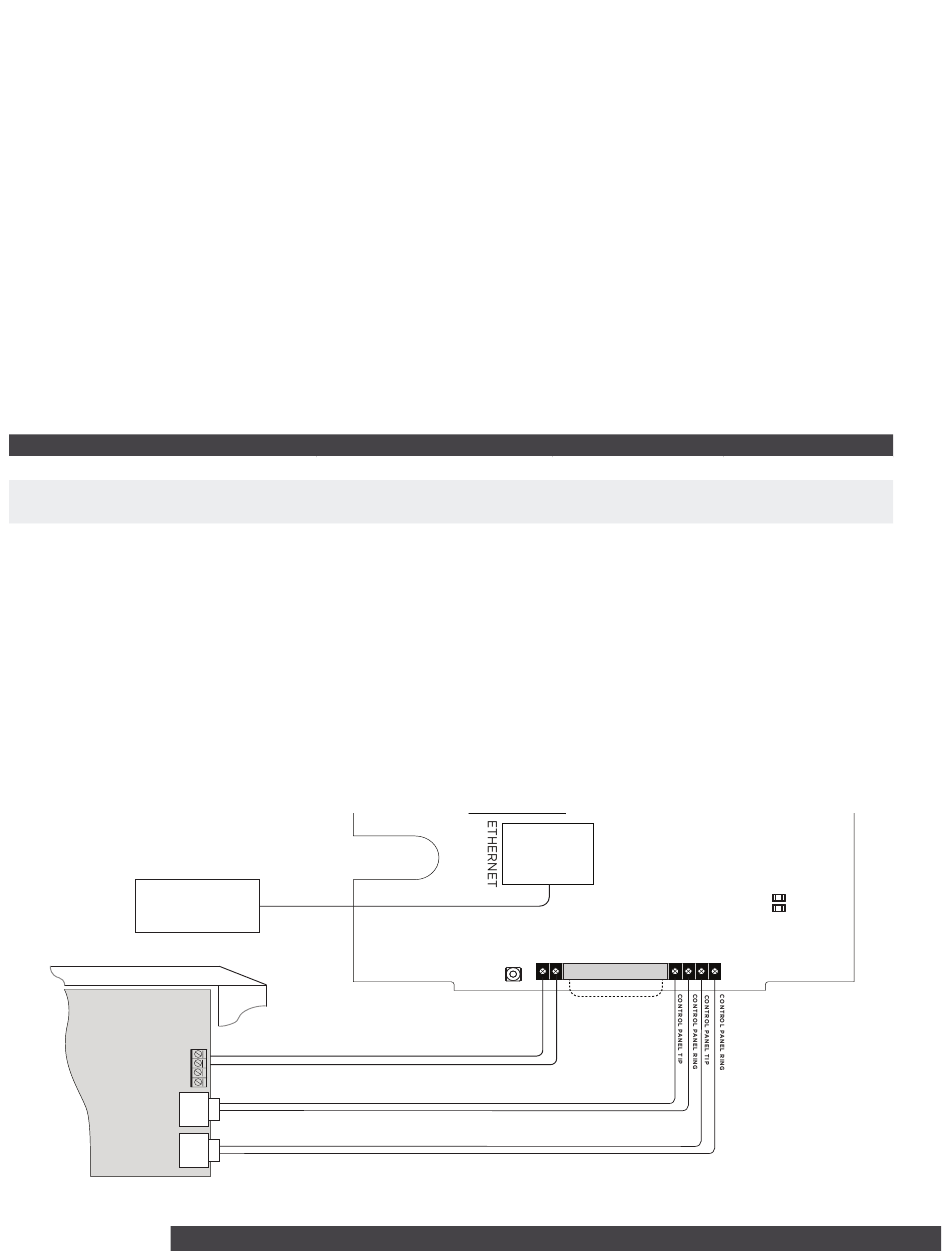

Figure 1: Wiring Diagram for Tip and Ring Connection
DIGITAL MONITORING PRODUCTS | DUALCOM SERIES COMPLIANCE LISTING GUIDE
Permitted? Possible settings
Y NO, YES, DISARM
Y 3-240
Y 3-240
LOAD RESET
(CellComDF Only) Connect the Ethernet within 20 ft and routed in
conduit to network equipment in the same room (supervised, power limited).
+DC- Z1 Z2 Z3 G +Z4- 01 02 T1 R1 T2 R2
No Connection
(Zone Inputs Not
Evaluated By UL)
Settings permitted
YES, DISARM
3-238 (Dual Path)
3-58 (Single Path)
3-240 (Dual Path)
3-60 (Single Path)
