The fifteen-pin D-connector (5) is for further digital input/output communication, e.g.
with PLC equipment; more information and an appropriate cable can be obtained from
your local Mecmesin distributor.
Note: Communication cable(s) must not exceed 3 metres in length.

Loadcell

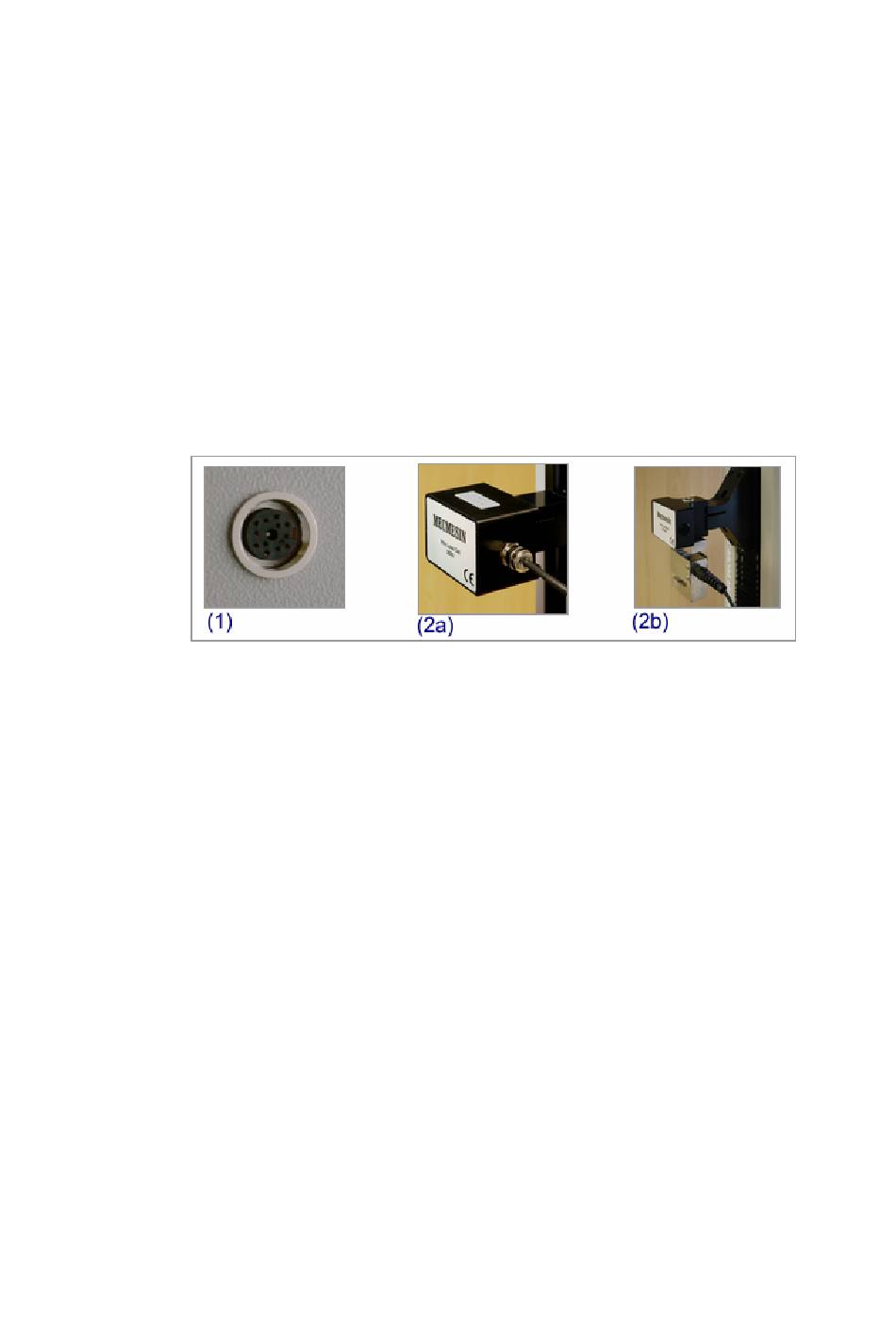

The Xtra loadcell connects to the MultiTest-x via a 12-way Hirose connector.
Gently push the connector on the loadcell cable into the port (1) on the test stand then
twist until the connectors engage, secure the connection by twisting the knurled
connector ring clockwise. Note that the position of the port depends upon the capacity
of the MultiTest. It is: near the top of the left-hand side of the column shroud for a
MultiTest 2.5-x, about half way up the left-hand side of the column shroud for a
MultiTest1-x and MultiTest5-x and for twin-column stands on the rear of the left column.
The 'Xtra' loadcell (2) measures the load applied to the test specimen and uploads
data for display on the LCD screen of MultiTest-x. Xtra loadcells with capacities of
1000N or less have an internal loadcell (2a), but those with capacities of 2.5kN or
greater have an external loadcell (2b).
Note that any loadcell, particularly a low capacity loadcell, is a delicate instrument.
Care should always be taken to avoid excessive load, i.e. any load exceeding 120%
of capacity, being applied to your loadcell. If you believe that excessive load has been
applied, you should contact your local Mecmesin distributor.
