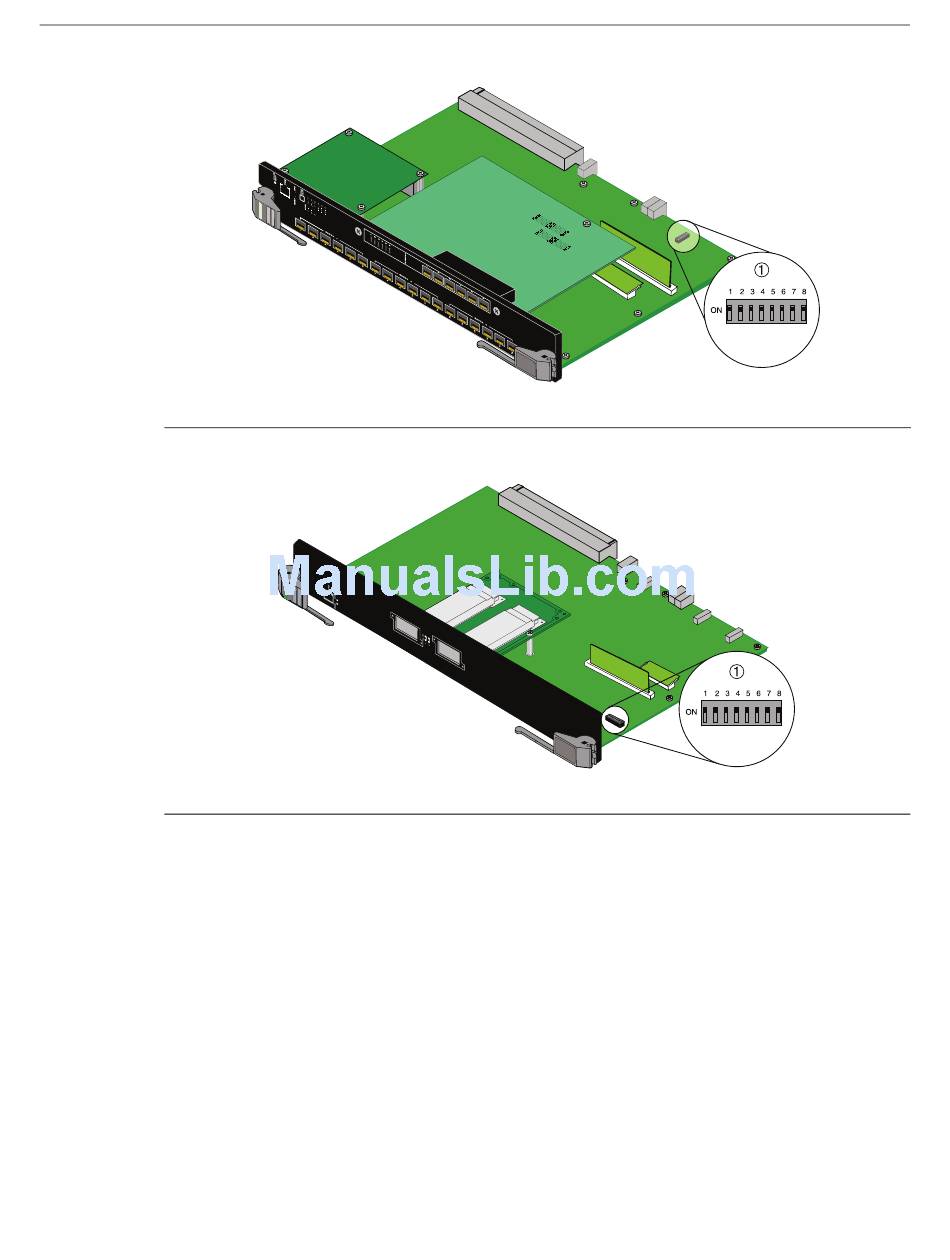

Figure B-3
1 Mode switch pack (7GR4280-19)
Figure B-4
1 Mode switch bank (7KR4290-02)

Memory Locations and Replacement Procedures

In the event that the Dual in Line Memory Module (DIMM) or DRAM Single In‐line Memory
Module (SIMM) needs to be replaced, the following sections describe how to access, locate, and
replace these memory modules. If you have questions concerning the replacement of the memory
modules, refer to "Getting Help" on page xv for details on how to contact Enterasys Networks.

Location of DIMM and DRAM SIMM Memory Modules

Figure B‐5 through Figure
board. The 7GR4270‐12 is shown in Figure
the 7GR4202‐30.

Mode Switch Location on the 7GR4280-19

Mode Switch Location on the 7KR4290-02

B‐7 show the locations of the DIMM and DRAM SIMM on each main
Memory Locations and Replacement Procedures
B‐5. However, the approximate location also applies to
Matrix DFE-Diamond Series Installation Guide B-3
