Installing Module into Matrix N3, N1, or N5 Chassis

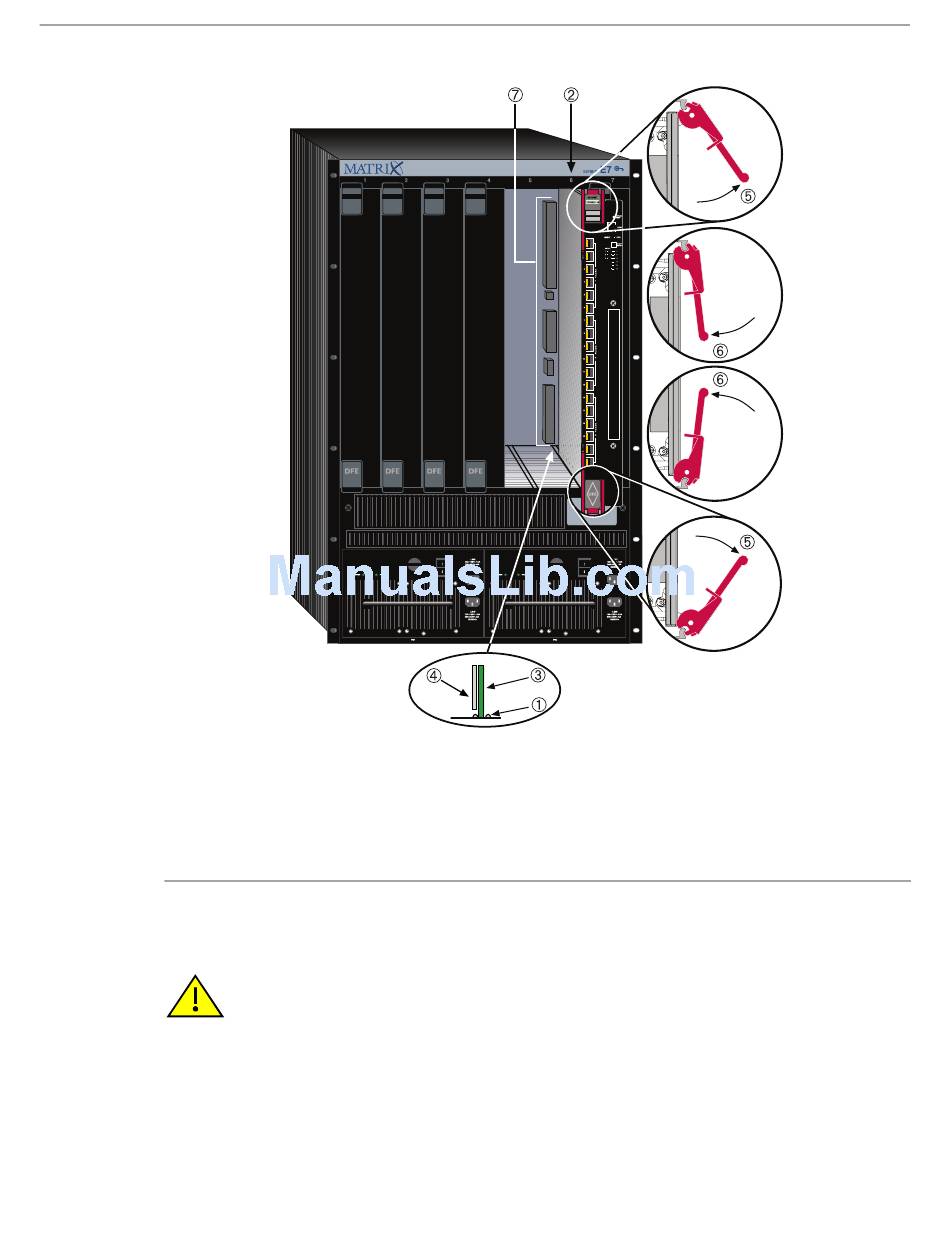

Figure 3-6
1 Card guides
2 Slot number 6 (Left-most slot is 1)
3 Module card
4 Metal back panel
5 Upper/lower locking tabs (in proper open position)
6 Upper/lower locking tab (in closed position)

Installing Module into Matrix N3, N1, or N5 Chassis

3-12 Installation

Installing Module into Matrix E7 or N7 Chassis (Matrix E7 shown)

Caution: Failure to observe static safety precautions could cause damage to the module. Follow
static safety handling rules and wear the antistatic wrist strap.
Do not cut the non-conductive bag to remove the module. Sharp objects contacting the board or
components can cause damage.
Precaución: Si no toma las medidas de seguridad necesarias para evitar descargas de
electricidad estática, es posible que el módulo se dañe. Siga los consejos de seguridad para la
manipulación del producto y no olvide utilizar la pulsera antiestática.
No corte la bolsa antiestática para sacar el módulo. Tenga en cuenta que si algún objeto cortante
entra en contacto con la placa o con los componentes, éstos podrían dañarse.
7 Backplane connectors
• Top two connectors (power and FTM2)
• Bottom two connectors (power and FTM1)
(no bottom connectors in Matrix N7
chassis)
