The DFE Modules

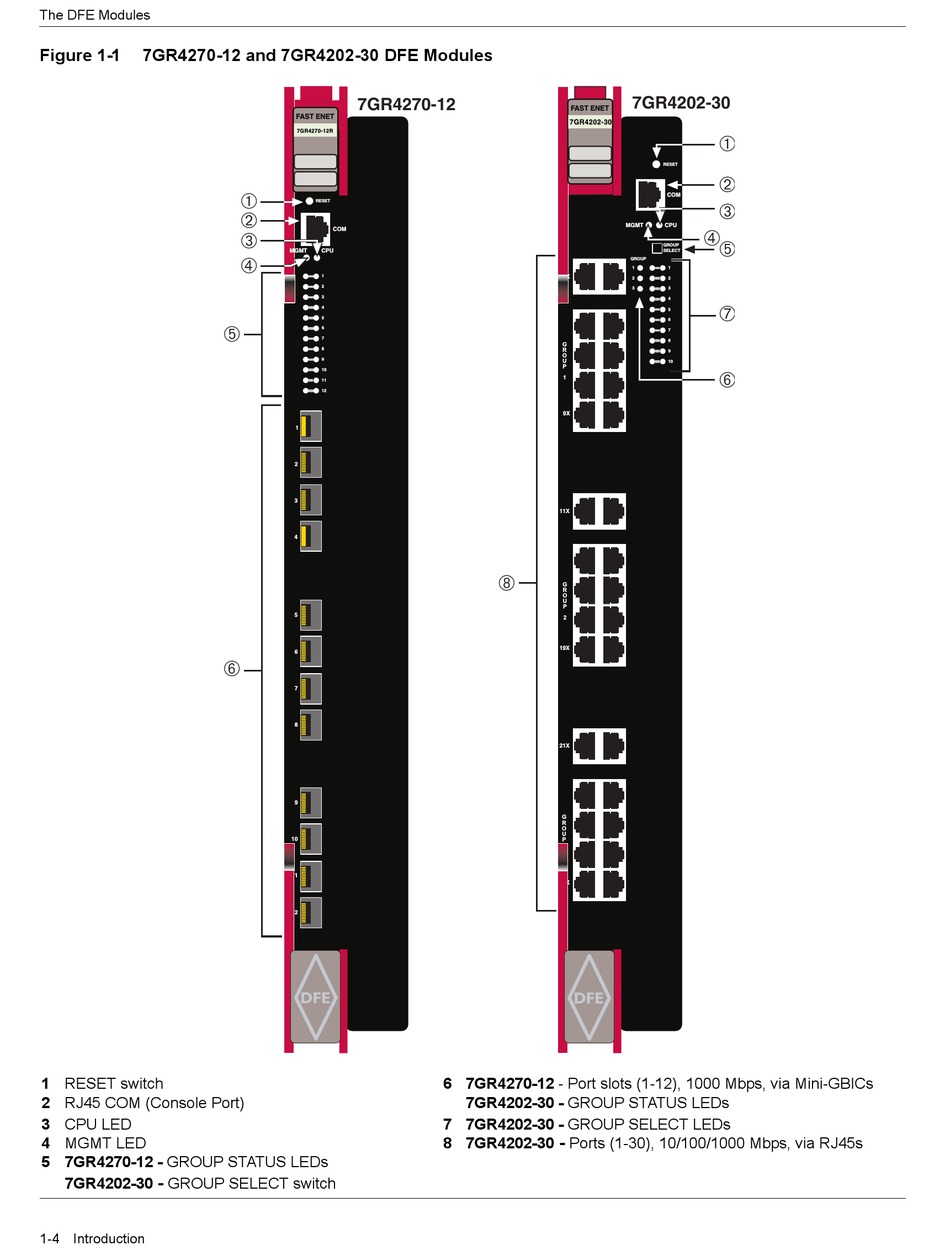

Figure 1-1 7GR4270-12 and 7GR4202-30 DFE Modules
1 RESET switch
2 RJ45 COM (Console Port)
3 CPU LED
4 MGMT LED
5 7GR4270-12 - GROUP STATUS LEDs
-

7GR4202-30

GROUP SELECT switch
1-4 Introduction
À
Á
Â
Ã
Ä
Å
Ç
6 7GR4270-12 - Port slots (1-12), 1000 Mbps, via Mini-GBICs
7GR4202-30 - GROUP STATUS LEDs
7 7GR4202-30 - GROUP SELECT LEDs
-
8 7GR4202-30 Ports (1-30), 10/100/1000 Mbps, via RJ45s
À
Á
Â
Ã
Ä
Æ
Å
