Eight-Wire Crossover Cable Rj45 Pinouts, Connections Between Hub Devices; Eight-Wire Straight-Through Cable Rj45 Pinouts, Connections Between Switches And End User Devices - Enterasys Matrix 7GR4202-30 Hardware Installation Manual

Connecting to the Network

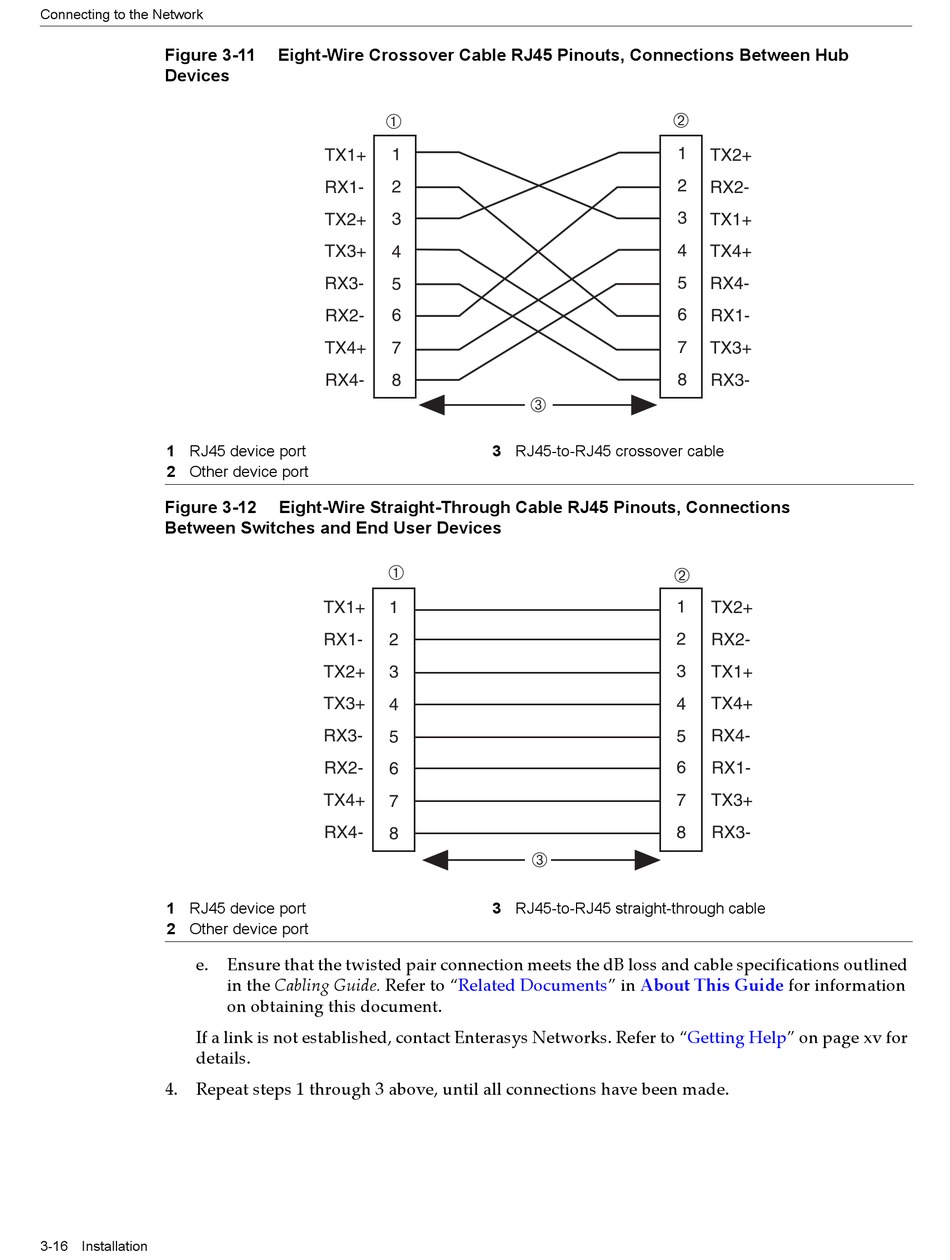

Figure 3-11
Devices
1 RJ45 device port
2 Other device port
Figure 3-12
Between Switches and End User Devices
1 RJ45 device port
2 Other device port
e.
If a link is not established, contact Enterasys Networks. Refer to "Getting Help" on page xv for
details.
4. Repeat steps 1 through 3 above, until all connections have been made.
3-16 Installation
Eight-Wire Crossover Cable RJ45 Pinouts, Connections Between Hub
À
Eight-Wire Straight-Through Cable RJ45 Pinouts, Connections
À
Ensure that the twisted pair connection meets the dB loss and cable specifications outlined
in the Cabling Guide. Refer to "Related Documents" in About This Guide for information
on obtaining this document.
Â
3 RJ45-to-RJ45 crossover cable
Â
3 RJ45-to-RJ45 straight-through cable
Á
Á
