Offline/Reset Switch - Enterasys Matrix 7GR4202-30 Hardware Installation Manual

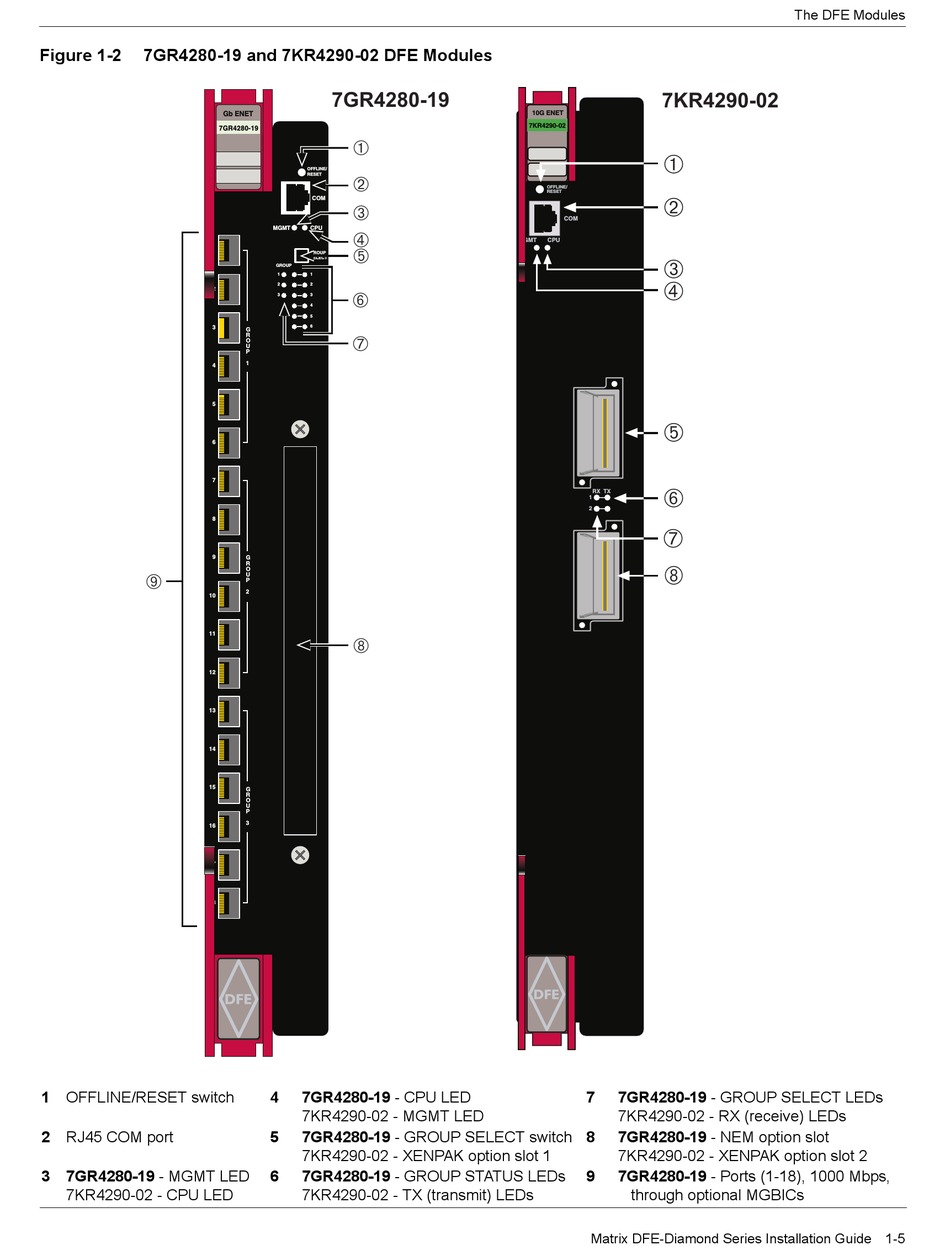

Figure 1-2 7GR4280-19 and 7KR4290-02 DFE Modules
È
1

OFFLINE/RESET switch

2 RJ45 COM port
3 7GR4280-19 - MGMT LED
7KR4290-02 - CPU LED
À
Á
Â
Ã
Ä
Å
Æ
Ç
4 7GR4280-19 - CPU LED
7KR4290-02 - MGMT LED
5 7GR4280-19 - GROUP SELECT switch
7KR4290-02 - XENPAK option slot 1
6 7GR4280-19 - GROUP STATUS LEDs
7KR4290-02 - TX (transmit) LEDs
À
Á
Â
Ã
Ä
Å
Æ
Ç
7 7GR4280-19 - GROUP SELECT LEDs
7KR4290-02 - RX (receive) LEDs
8 7GR4280-19 - NEM option slot
7KR4290-02 - XENPAK option slot 2
9 7GR4280-19 - Ports (1-18), 1000 Mbps,
through optional MGBICs
