Park Brake Linkage

NOTE: Do not use this adjustment for routine adjustments to the parking
6. Release the park brake.
7. Loosen the jam nuts on the adjusting link.
8. Adjust the adjusting link so that all free play is removed from the brake cables without actuating
the arms at the wheels.
9. Tighten the jam nuts on the adjusting link.
10. Set the park brake.
11. Reconnect the main positive and negative cables at the batteries.
12. Remove blocks from behind the wheels.
13. Release the park brake and test drive the vehicle.

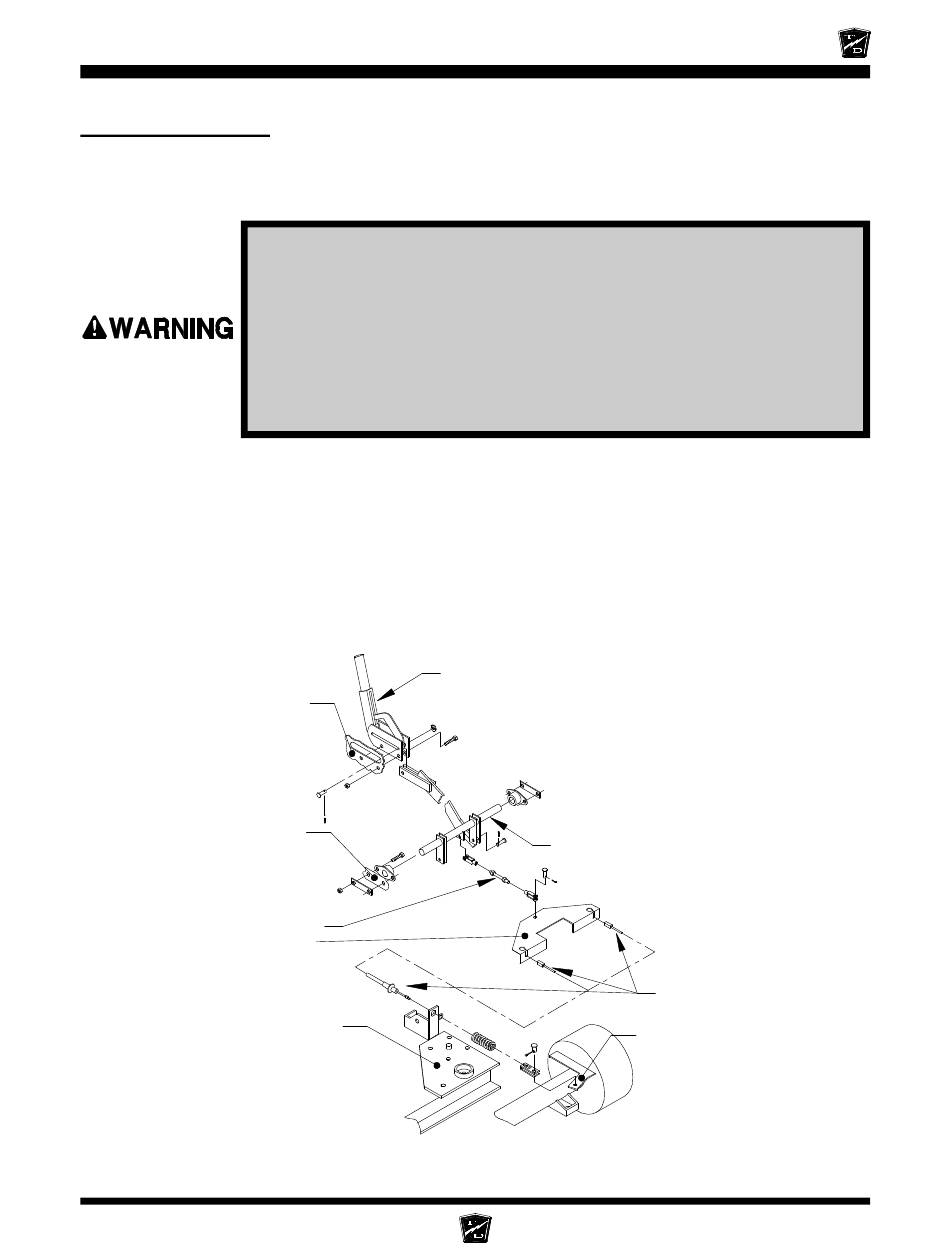

Frame
Adjusting Link
Equilizer
Engine/Transmission
Mounting Frame
Maintenance, Service, and Repair
brake. This adjustment should only be performed when any part of
the brake system has been repaired or replaced.
1. Make sure the key-switch is in the "OFF" position, then remove the
key.
2. Place the Shift lever in the neutral position.
3. Set the park brake.
4. Place blocks under the front wheels to prevent vehicle movement.
5. Disconnect the main positive and negative cables at the battery.
Frame
(ref)
(ref)
Brakes
Park Brake Lever
Cross Shaft
Page 9
Brake Cables
Brake Arm
