USB Deviceserver User Manual Linux
5.2

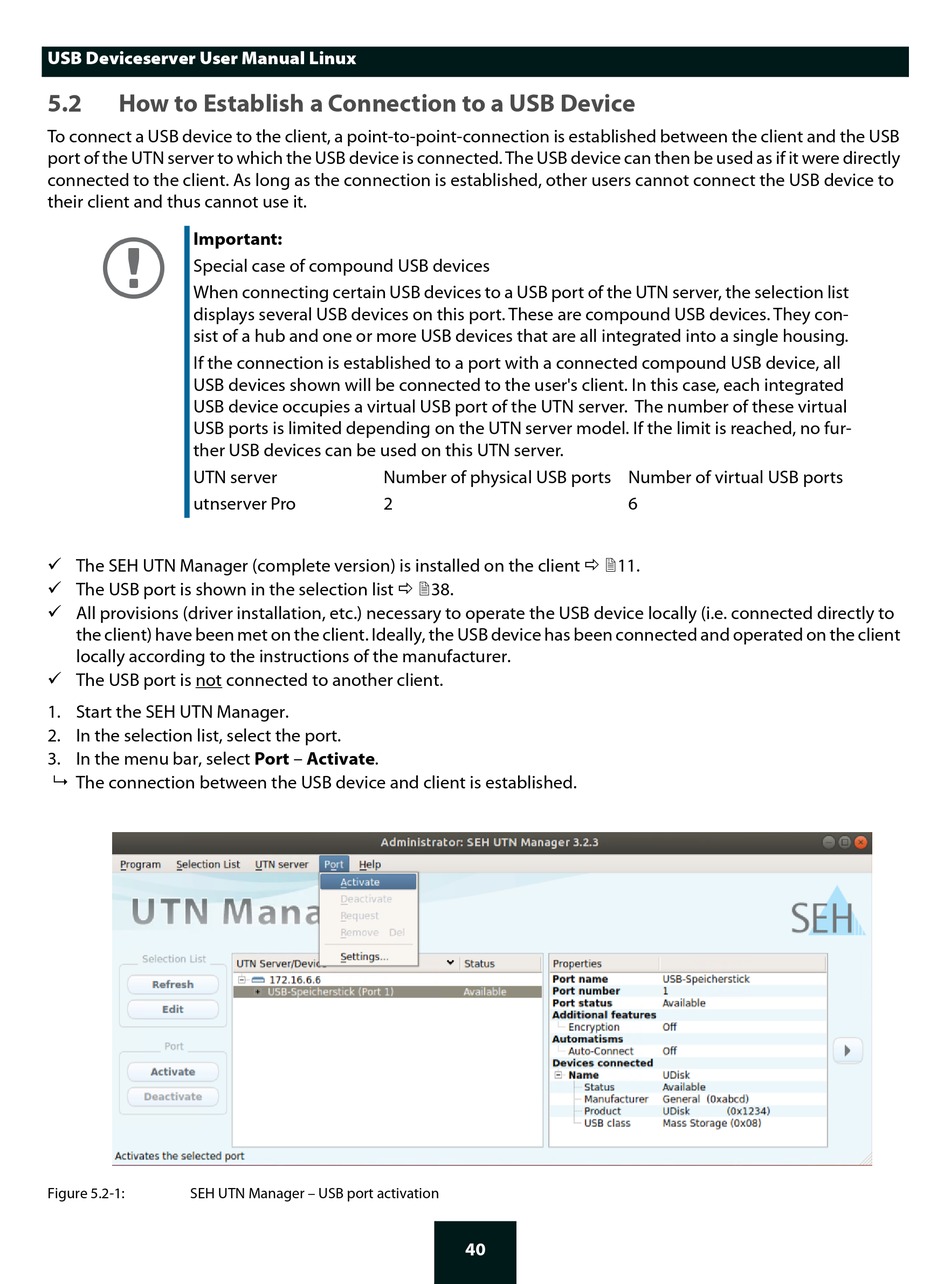

How to Establish a Connection to a USB Device

To connect a USB device to the client, a point-to-point-connection is established between the client and the USB
port of the UTN server to which the USB device is connected. The USB device can then be used as if it were directly
connected to the client. As long as the connection is established, other users cannot connect the USB device to
their client and thus cannot use it.
Important:
Special case of compound USB devices
When connecting certain USB devices to a USB port of the UTN server, the selection list
displays several USB devices on this port. These are compound USB devices. They con-
sist of a hub and one or more USB devices that are all integrated into a single housing.
If the connection is established to a port with a connected compound USB device, all
USB devices shown will be connected to the user's client. In this case, each integrated
USB device occupies a virtual USB port of the UTN server. The number of these virtual
USB ports is limited depending on the UTN server model. If the limit is reached, no fur-
ther USB devices can be used on this UTN server.
UTN server
utnserver Pro
 The SEH UTN Manager (complete version) is installed on the client  11.
 The USB port is shown in the selection list  38.
 All provisions (driver installation, etc.) necessary to operate the USB device locally (i.e. connected directly to
the client) have been met on the client. Ideally, the USB device has been connected and operated on the client
locally according to the instructions of the manufacturer.
 The USB port is not connected to another client.
1. Start the SEH UTN Manager.
2. In the selection list, select the port.
3. In the menu bar, select Port – Activate.
 The connection between the USB device and client is established.
Figure 5.2-1: SEH UTN Manager – USB port activation
Number of physical USB ports Number of virtual USB ports
2
40
6
