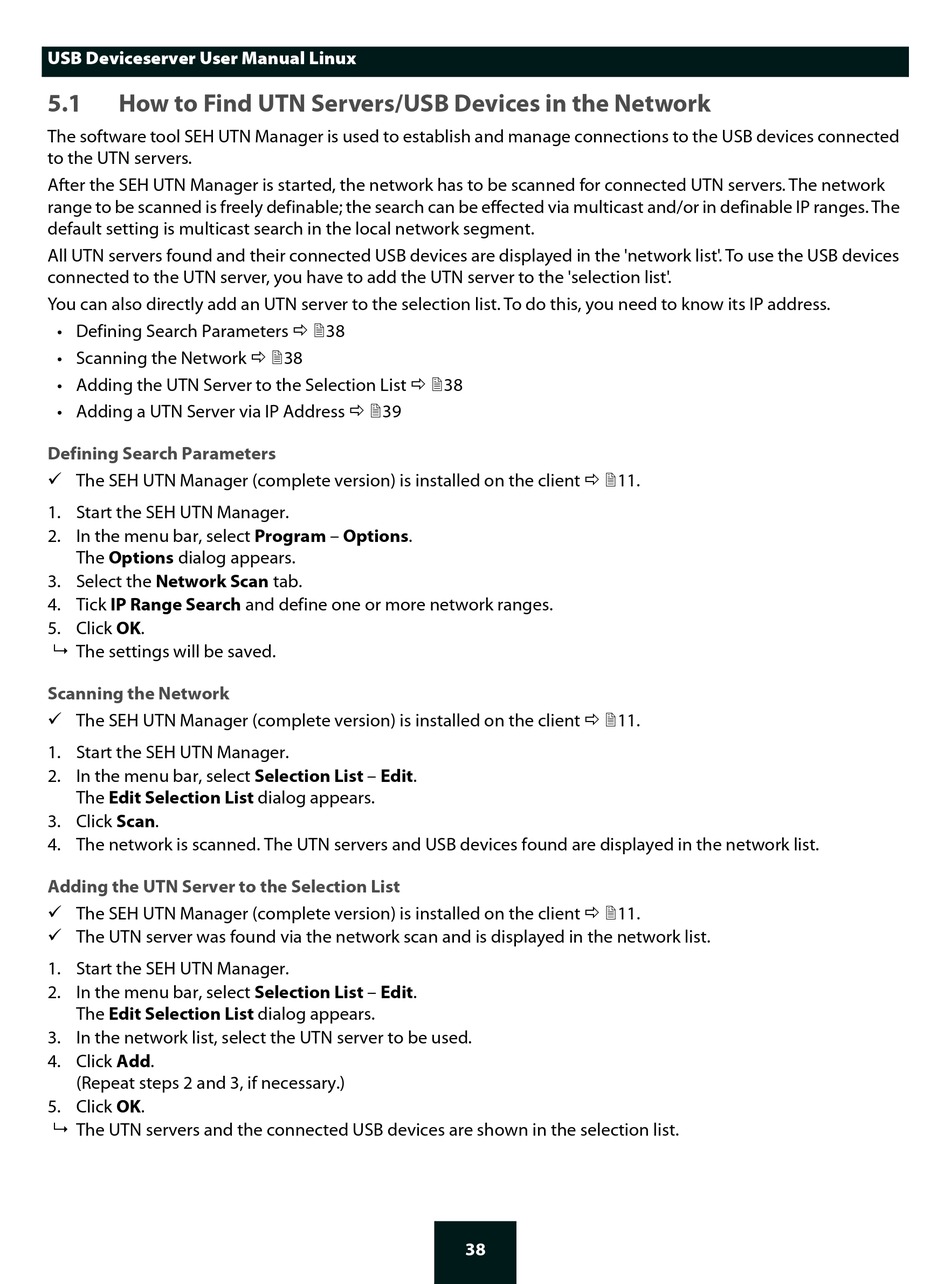

How to Find UTN Servers/USB Devices in the Network

The software tool SEH UTN Manager is used to establish and manage connections to the USB devices connected
to the UTN servers.
After the SEH UTN Manager is started, the network has to be scanned for connected UTN servers. The network
range to be scanned is freely definable; the search can be effected via multicast and/or in definable IP ranges. The
default setting is multicast search in the local network segment.
All UTN servers found and their connected USB devices are displayed in the 'network list' . To use the USB devices
connected to the UTN server, you have to add the UTN server to the 'selection list' .
You can also directly add an UTN server to the selection list. To do this, you need to know its IP address.
• Defining Search Parameters  38
• Scanning the Network  38
• Adding the UTN Server to the Selection List  38
• Adding a UTN Server via IP Address  39
Defining Search Parameters
 The SEH UTN Manager (complete version) is installed on the client  11.
1. Start the SEH UTN Manager.
2. In the menu bar, select Program – Options.
The Options dialog appears.
3. Select the Network Scan tab.
4. Tick IP Range Search and define one or more network ranges.
5. Click OK.
 The settings will be saved.
Scanning the Network
 The SEH UTN Manager (complete version) is installed on the client  11.
1. Start the SEH UTN Manager.
2. In the menu bar, select Selection List – Edit.
The Edit Selection List dialog appears.
3. Click Scan.
4. The network is scanned. The UTN servers and USB devices found are displayed in the network list.
Adding the UTN Server to the Selection List
 The SEH UTN Manager (complete version) is installed on the client  11.
 The UTN server was found via the network scan and is displayed in the network list.
1. Start the SEH UTN Manager.
2. In the menu bar, select Selection List – Edit.
The Edit Selection List dialog appears.
3. In the network list, select the UTN server to be used.
4. Click Add.
(Repeat steps 2 and 3, if necessary.)
5. Click OK.
 The UTN servers and the connected USB devices are shown in the selection list.
