4.3

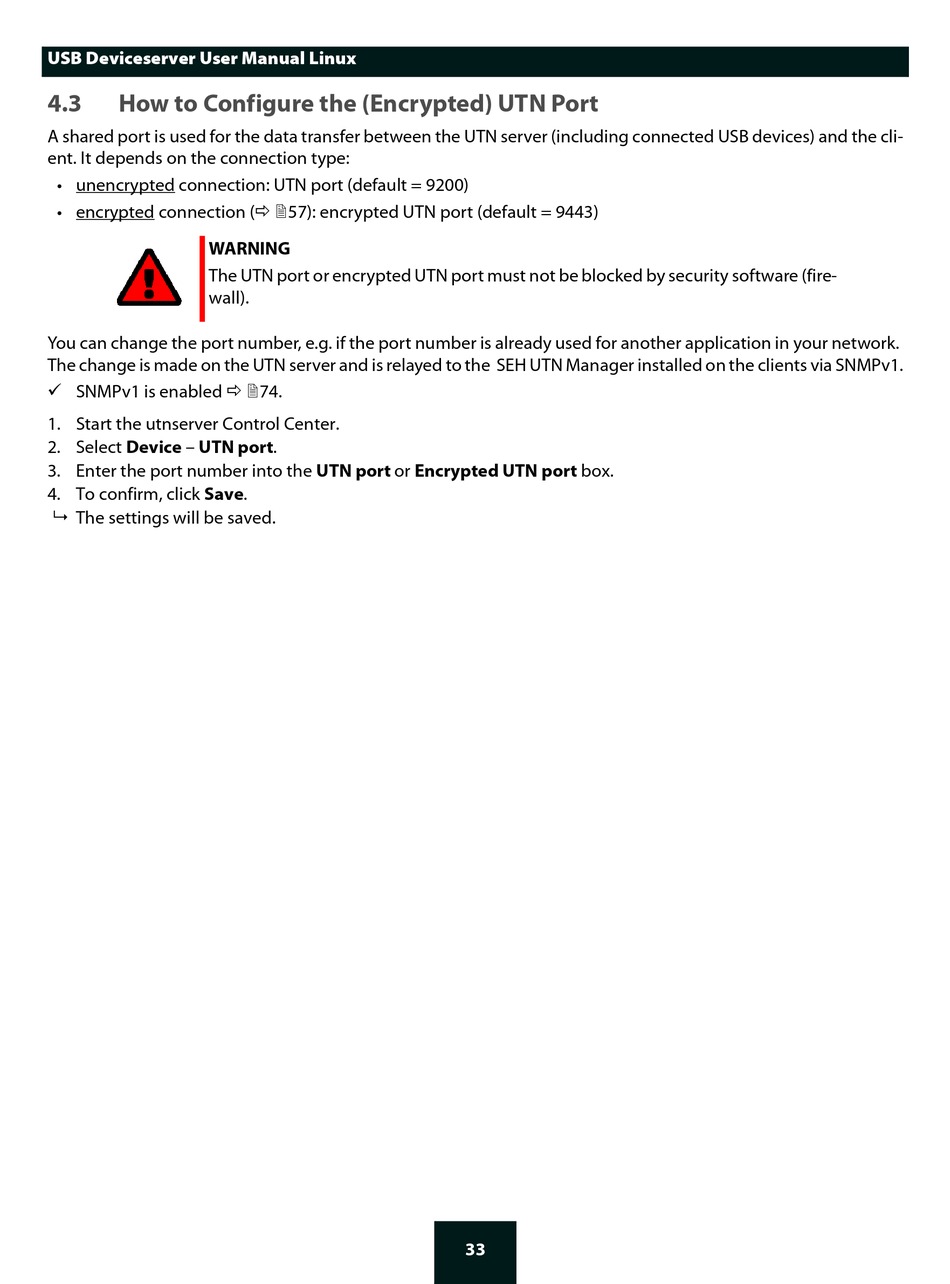

How to Configure the (Encrypted) UTN Port

A shared port is used for the data transfer between the UTN server (including connected USB devices) and the cli-
ent. It depends on the connection type:
• unencrypted connection: UTN port (default = 9200)
• encrypted connection ( 57): encrypted UTN port (default = 9443)
WARNING
The UTN port or encrypted UTN port must not be blocked by security software (fire-
wall).
You can change the port number, e.g. if the port number is already used for another application in your network.
The change is made on the UTN server and is relayed to the SEH UTN Manager installed on the clients via SNMPv1.
 SNMPv1 is enabled  74.
1. Start the utnserver Control Center.
2. Select Device – UTN port.
3. Enter the port number into the UTN port or Encrypted UTN port box.
4. To confirm, click Save.
 The settings will be saved.
33
