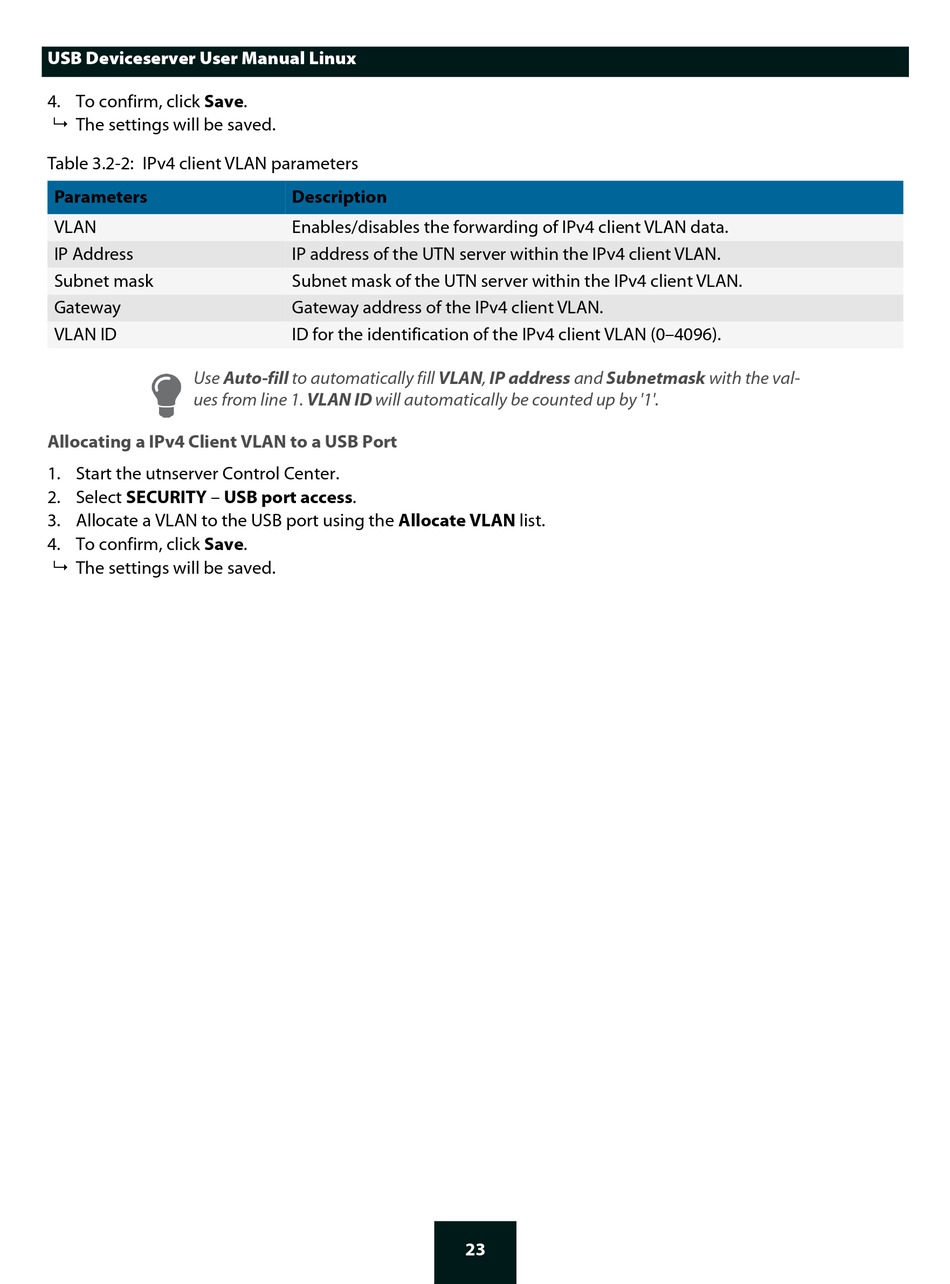

USB Deviceserver User Manual Linux
4. To confirm, click Save.
 The settings will be saved.
Table 3.2-2: IPv4 client VLAN parameters
Parameters
VLAN
IP Address
Subnet mask
Gateway
VLAN ID
Use Auto-fill to automatically fill VLAN, IP address and Subnetmask with the val-
ues from line 1. VLAN ID will automatically be counted up by '1'.
Allocating a IPv4 Client VLAN to a USB Port
1. Start the utnserver Control Center.
2. Select SECURITY – USB port access.
3. Allocate a VLAN to the USB port using the Allocate VLAN list.
4. To confirm, click Save.
 The settings will be saved.
Description
Enables/disables the forwarding of IPv4 client VLAN data.
IP address of the UTN server within the IPv4 client VLAN.
Subnet mask of the UTN server within the IPv4 client VLAN.
Gateway address of the IPv4 client VLAN.
ID for the identification of the IPv4 client VLAN (0–4096).
23
