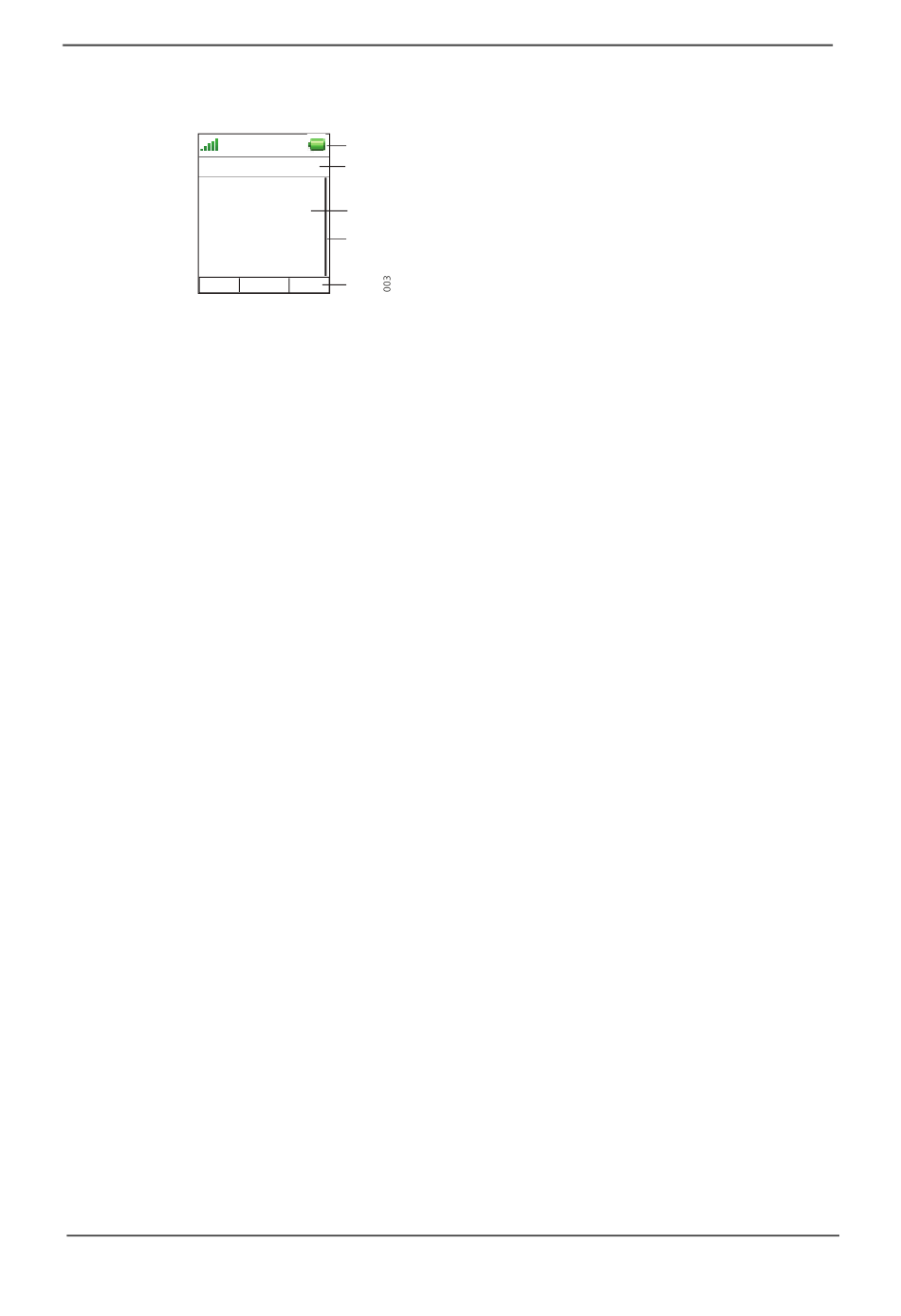

Figure 2. Example of a display configuration in idle mode.
• The Status bar (1) display icons, which provide information about signal strength, missed
calls, new messages, the phone and key locks, sound off, and time and battery status.
The status bar is always visible.
• The Header bar (2) displays the current date, headset connection, Bluetooth connection,
and system connection.
• The Active area (3) displays information such as the name of the system to which the
handset is connected to. A user identity provided from the system or an Owner ID can
also be displayed if configured in the Settings menu. This is also the area for dialog
window text. For example "missed calls" or to confirm an action.
• The Scroll bar (4) may be displayed to the right of the "Active area" when a menu screen
has more than six menus or when a message is too long to be displayed in one go.
• The Soft key bar (5) is used for Soft keys which can be used as shortcuts for functions in
the handset.
