E.2.1 Headers
The Serial Communication accessory board has a header socket at J2 for physical connection to
other boards above it, and a header socket at J12 on the bottom side to connect to boards below it.
J2 and J12 are 2 × 25 SMT header sockets with a 0.1" pin spacing. Figure E-3 shows the layout of
another board to be plugged into the Serial Communication accessory board — this footprint is
identical for the Prototyping Board and the two accessory boards. The values are relative to the
mounting hole.
(All measurements are in inches followed by millimeters enclosed in parentheses.)
MiniCore RCM5700/RCM6700 User's Manual

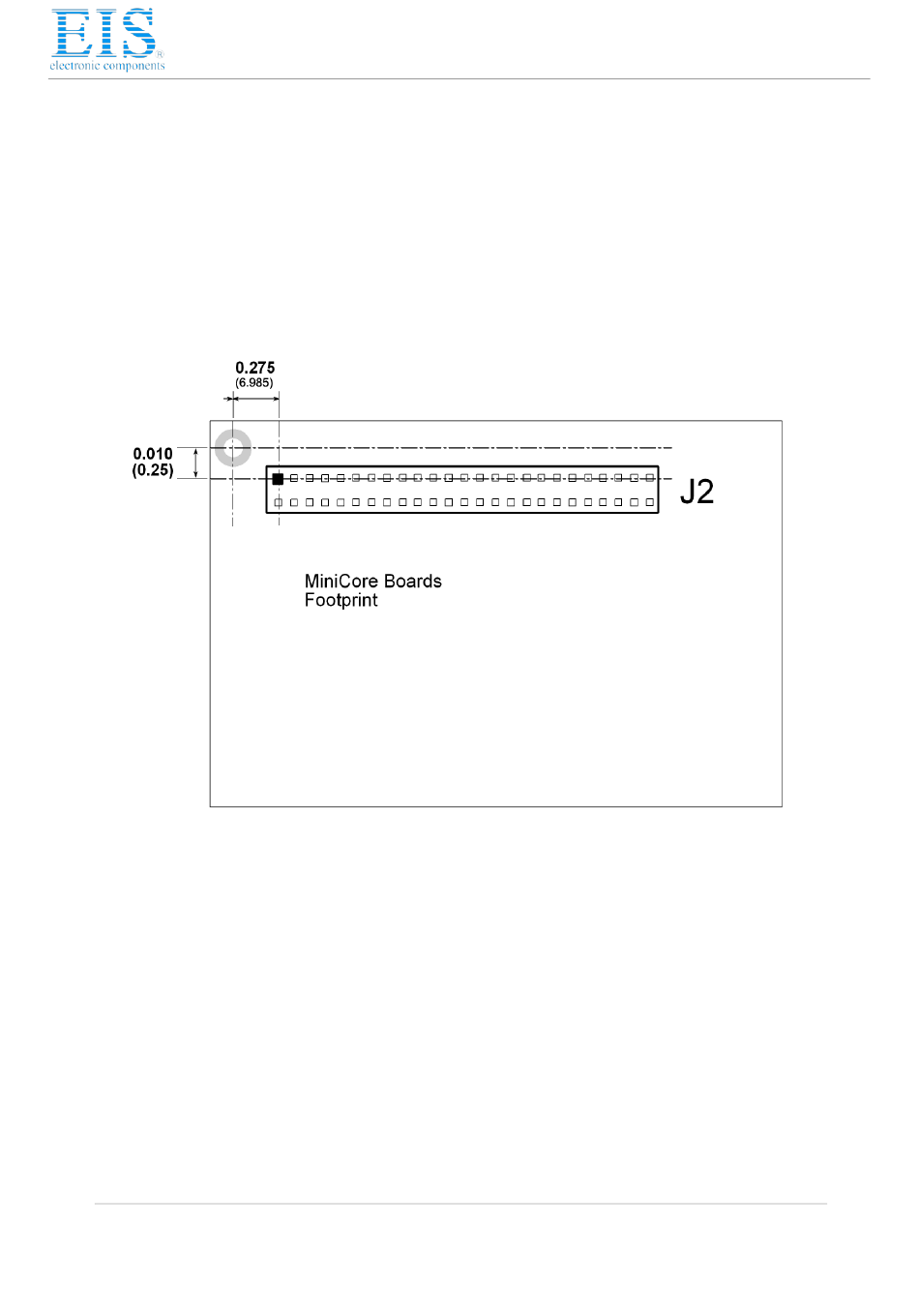

Figure E-3. MiniCore Boards Footprint
digi.com
85
