D.2 Mechanical Dimensions and Layout

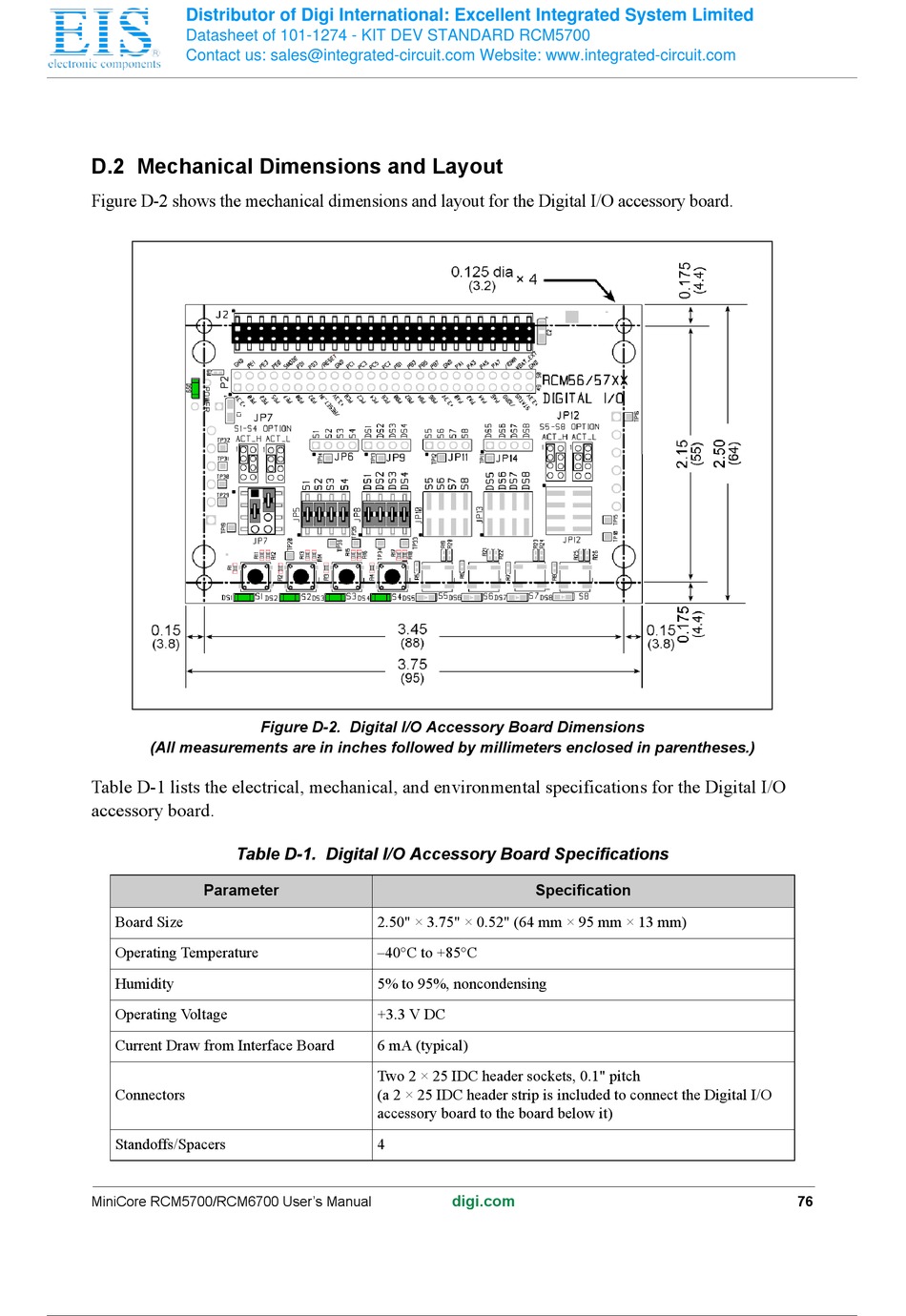

Figure D-2 shows the mechanical dimensions and layout for the Digital I/O accessory board.
Figure D-2. Digital I/O Accessory Board Dimensions
(All measurements are in inches followed by millimeters enclosed in parentheses.)
Table D-1 lists the electrical, mechanical, and environmental specifications for the Digital I/O
accessory board.
Table D-1. Digital I/O Accessory Board Specifications
Parameter
Board Size
Operating Temperature
Humidity
Operating Voltage
Current Draw from Interface Board
Connectors
Standoffs/Spacers
MiniCore RCM5700/RCM6700 User's Manual
Specification
2.50" × 3.75" × 0.52" (64 mm × 95 mm × 13 mm)
–40°C to +85°C
5% to 95%, noncondensing
+3.3 V DC
6 mA (typical)
Two 2 × 25 IDC header sockets, 0.1" pitch
(a 2 × 25 IDC header strip is included to connect the Digital I/O
accessory board to the board below it)
4
