B.6 Interface Board Jumper Configurations
Figure B-7 shows the header locations used to configure the various Interface Board options via
jumpers.

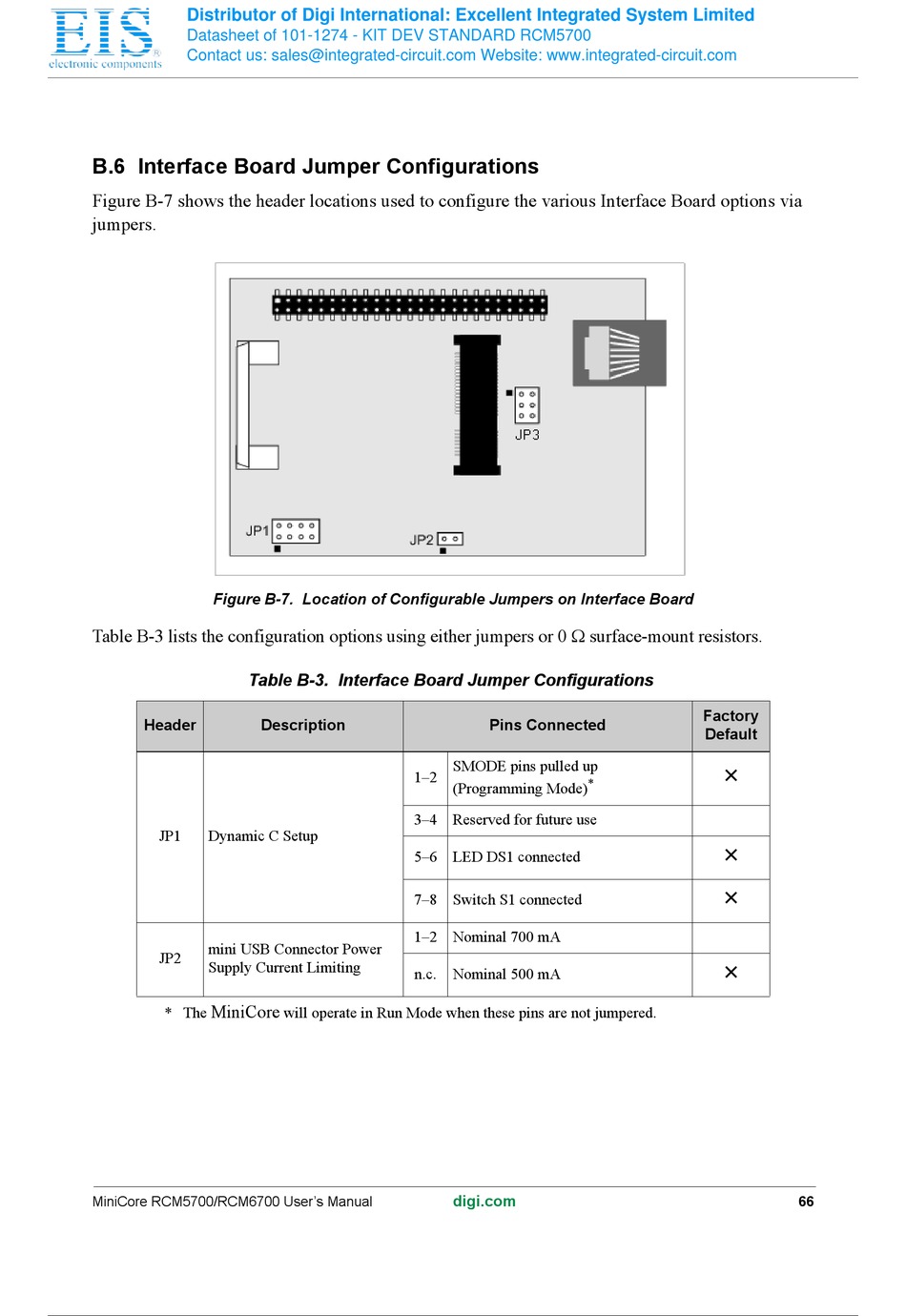

Figure B-7. Location of Configurable Jumpers on Interface Board
Table B-3 lists the configuration options using either jumpers or 0  surface-mount resistors.
Table B-3. Interface Board Jumper Configurations
Header Description
JP1 Dynamic C Setup
mini USB Connector Power
JP2
Supply Current Limiting
MiniCore
* The
MiniCore RCM5700/RCM6700 User's Manual
SMODE pins pulled up
1–2
(Programming Mode)
3–4 Reserved for future use
5–6 LED DS1 connected
7–8 Switch S1 connected
1–2 Nominal 700 mA
n.c. Nominal 500 mA
will operate in Run Mode when these pins are not jumpered.
digi.com
Pins Connected
*
Factory
Default
×
×
×
×
66
