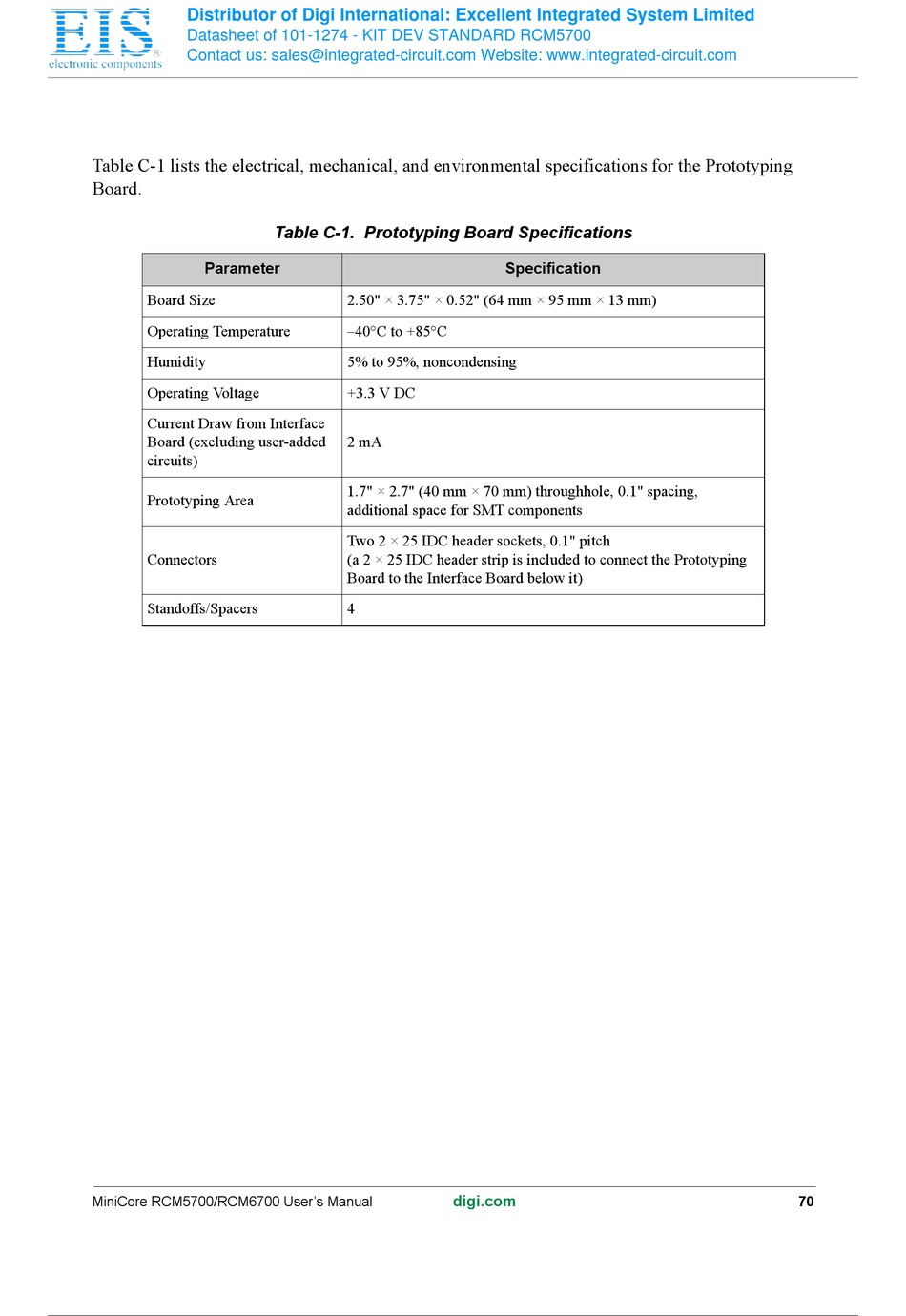

Table C-1 lists the electrical, mechanical, and environmental specifications for the Prototyping
Board.
Parameter
Board Size
Operating Temperature
Humidity
Operating Voltage
Current Draw from Interface
Board (excluding user-added
circuits)
Prototyping Area
Connectors
Standoffs/Spacers
MiniCore RCM5700/RCM6700 User's Manual
Table C-1. Prototyping Board Specifications
2.50" × 3.75" × 0.52" (64 mm × 95 mm × 13 mm)
–40°C to +85°C
5% to 95%, noncondensing
+3.3 V DC
2 mA
1.7" × 2.7" (40 mm × 70 mm) throughhole, 0.1" spacing,
additional space for SMT components
Two 2 × 25 IDC header sockets, 0.1" pitch
(a 2 × 25 IDC header strip is included to connect the Prototyping
Board to the Interface Board below it)
4
Specification
