C.2 Mechanical Dimensions and Layout

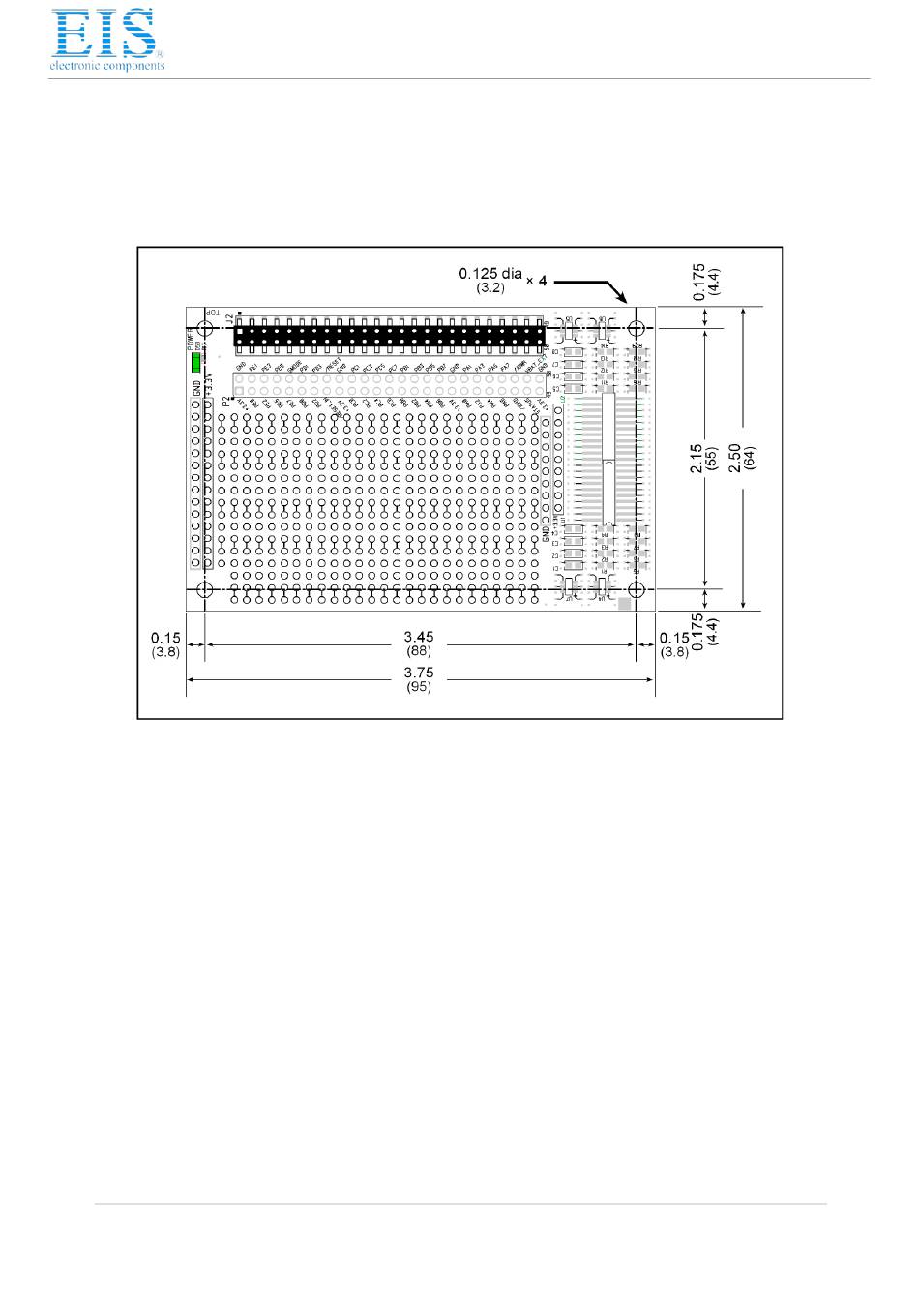

Figure C-2 shows the mechanical dimensions and layout for the Prototyping Board.
(All measurements are in inches followed by millimeters enclosed in parentheses.)
MiniCore RCM5700/RCM6700 User's Manual
Figure C-2. Prototyping Board Dimensions
