Figure 4-10 shows the use of the Rabbit 5000/6000 microprocessor ports in the RCM5700/
RCM6700 modules.
The ports on the Rabbit microprocessor used in the RCM5700/RCM6700 are configurable, and so
the defaults can be reconfigured. Table 4-3 lists the Rabbit factory defaults and the alternate con-
figurations.
MiniCore RCM5700/RCM6700 User's Manual

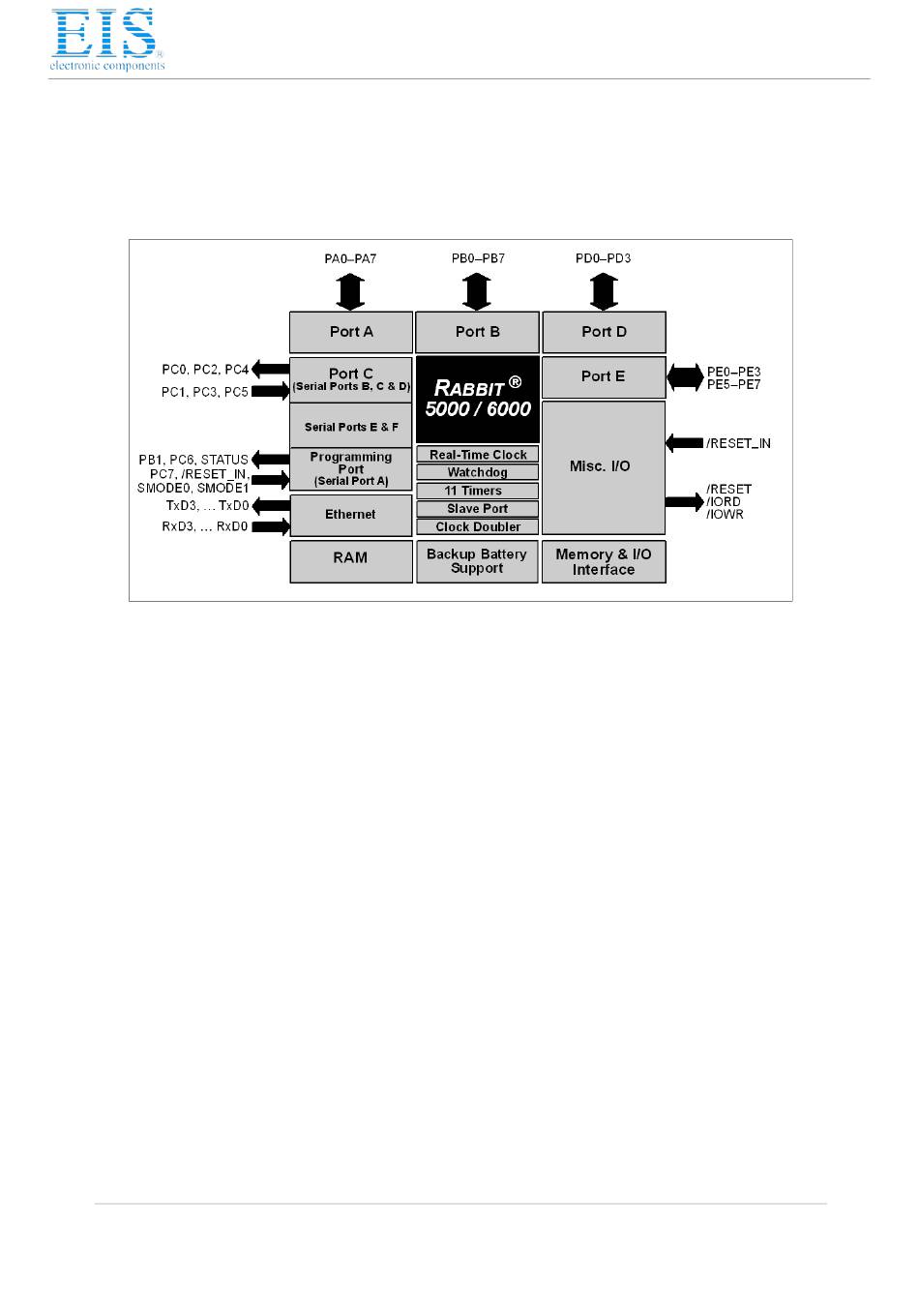

Figure 4-10. Use of Rabbit 5000/6000 Ports
digi.com
27
