C.3 Using the Prototyping Board
The Prototyping Board provides the user with MiniCore connection points brought out conveniently
to labeled points below header J2. The pinouts for header socket J2 are shown in Figure C-4.
There is a 1.7" × 2.7" through-hole prototyping space available on the Prototyping Board. The
holes in the prototyping area are spaced at 0.1" (2.5 mm). +3.3 V and GND traces run along the left
edge of the Prototyping Board for easy access. Small to medium circuits can be prototyped using
point-to-point wiring with 20 to 30 AWG wire between the prototyping area, the +3.3 V and GND
traces, and the surrounding area where surface-mount components may be installed. Small holes are
provided around the surface-mounted components that may be installed around the prototyping
area.
MiniCore RCM5700/RCM6700 User's Manual

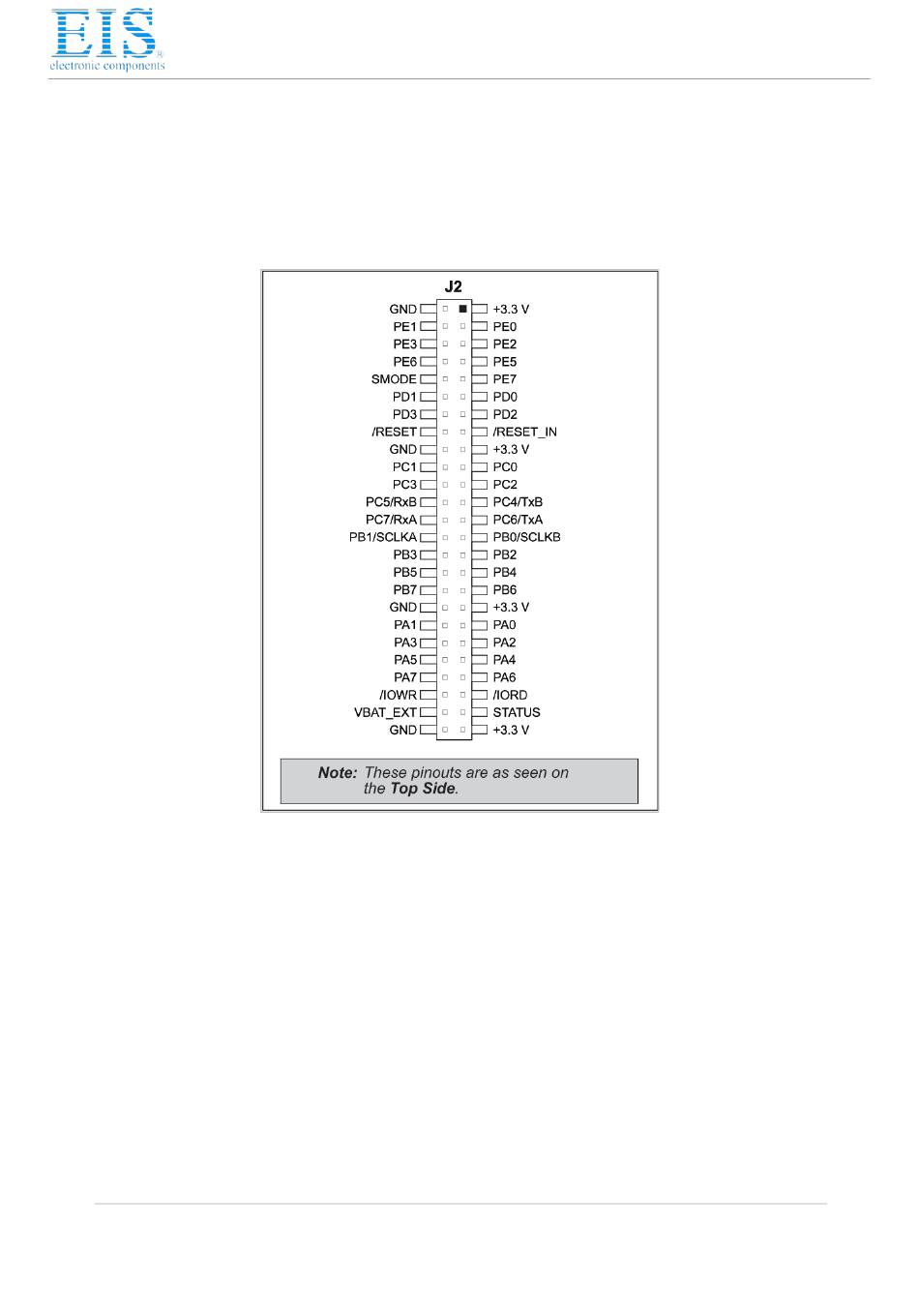

Figure C-4. MiniCore Boards Pinout
