Distributor of Digi International: Excellent Integrated System Limited
Datasheet of 101-1274 - KIT DEV STANDARD RCM5700
Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com
Header
Description
JP2
Tx+
JP3
Tx-
JP4
Rx-
JP5
Rx+
NOTE: The jumper connections are made using 0 surface-mounted resistors.
MiniCore RCM5700/RCM6700 User's Manual

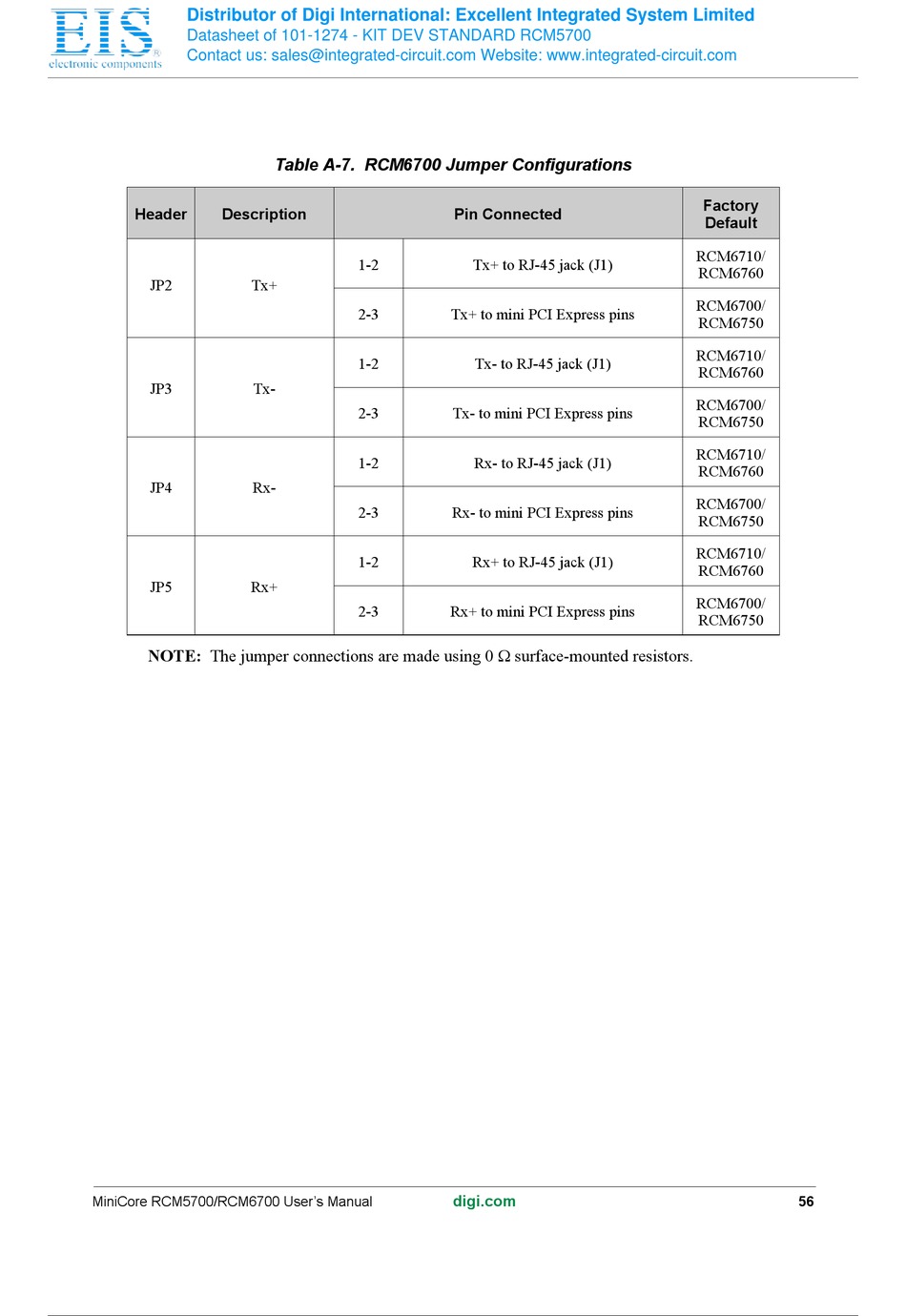

Table A-7.
RCM6700 Jumper Configurations
1-2
2-3
1-2
2-3
1-2
2-3
1-2
2-3
Pin Connected
Tx+ to RJ-45 jack (J1)
Tx+ to mini PCI Express pins
Tx- to RJ-45 jack (J1)
Tx- to mini PCI Express pins
Rx- to RJ-45 jack (J1)
Rx- to mini PCI Express pins
Rx+ to RJ-45 jack (J1)
Rx+ to mini PCI Express pins
digi.com
Factory
Default
RCM6710/
RCM6760
RCM6700/
RCM6750
RCM6710/
RCM6760
RCM6700/
RCM6750
RCM6710/
RCM6760
RCM6700/
RCM6750
RCM6710/
RCM6760
RCM6700/
RCM6750
56
