E.2 Mechanical Dimensions and Layout

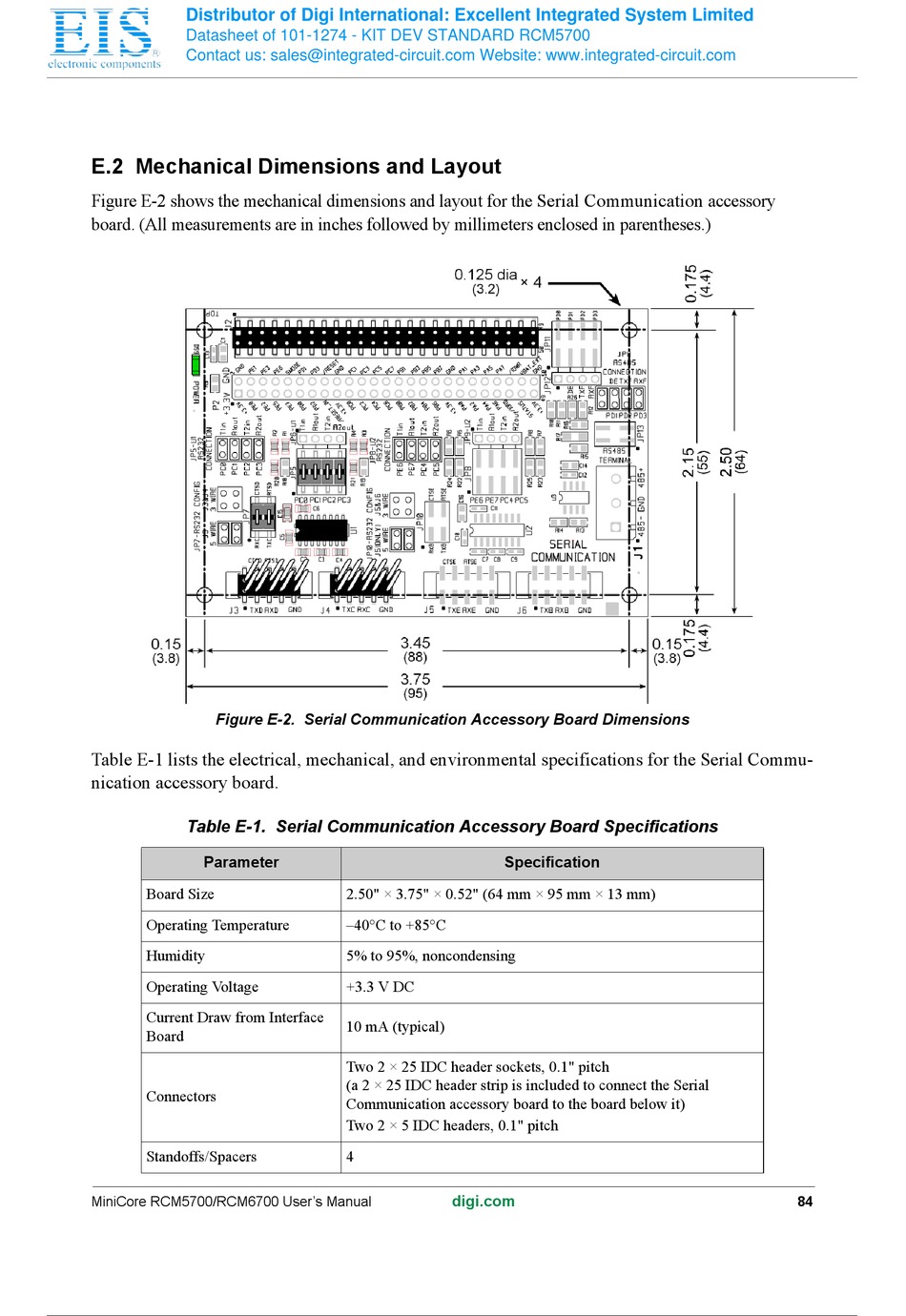

Figure E-2 shows the mechanical dimensions and layout for the Serial Communication accessory
board. (All measurements are in inches followed by millimeters enclosed in parentheses.)
Figure E-2. Serial Communication Accessory Board Dimensions
Table E-1 lists the electrical, mechanical, and environmental specifications for the Serial Commu-
nication accessory board.
Table E-1. Serial Communication Accessory Board Specifications
Parameter
Board Size
Operating Temperature
Humidity
Operating Voltage
Current Draw from Interface
Board
Connectors
Standoffs/Spacers
MiniCore RCM5700/RCM6700 User's Manual
Specification
2.50" × 3.75" × 0.52" (64 mm × 95 mm × 13 mm)
–40°C to +85°C
5% to 95%, noncondensing
+3.3 V DC
10 mA (typical)
Two 2 × 25 IDC header sockets, 0.1" pitch
(a 2 × 25 IDC header strip is included to connect the Serial
Communication accessory board to the board below it)
Two 2 × 5 IDC headers, 0.1" pitch
4
