2.2 Hardware Connections

There are three steps to connecting the Interface Board for use with Dynamic C and the sample
programs:
1. Insert standoffs/connectors on the Interface Board.
2. Install the MiniCore module on the Interface Board.
3. Connect the USB cable between the Interface Board and the workstation PC.
2.2.1 Step 1 — Prepare the Interface Board for Development
Insert a short plastic standoff supplied from the Development Kit in one of the corner holes from
the bottom of the Interface Board, then secure it with a long plastic standoff from above as shown
in Figure 2-2. Repeat this step so that plastic standoffs/connectors are in place at all four posi-
tions.
MiniCore RCM5700/RCM6700 User's Manual

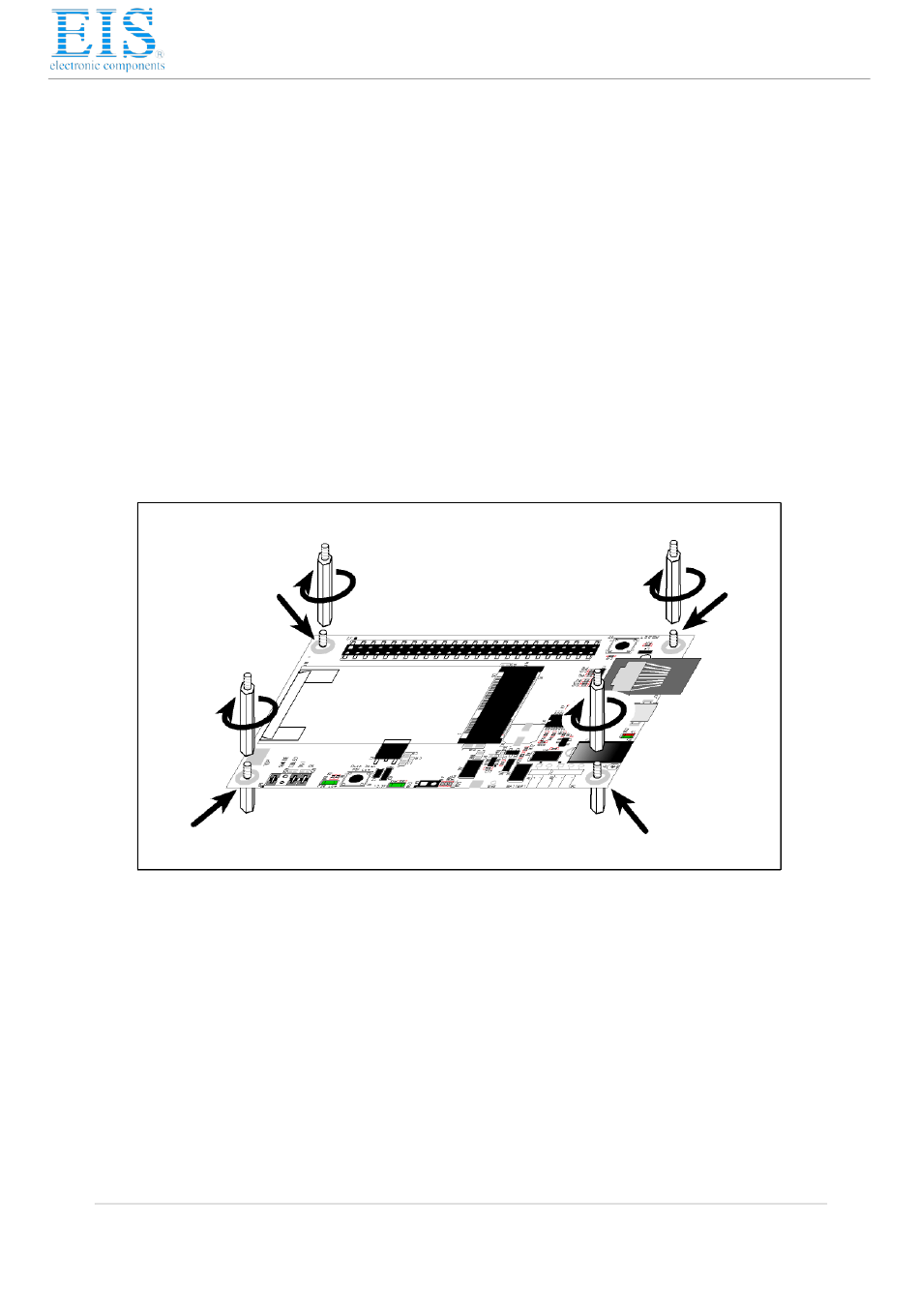

Figure 2-2. Insert Standoffs/Connectors
digi.com
12
