E.1 Introduction
The Serial Communication accessory board included in the Deluxe Development Kit provides
two 3-wire serial ports to use in conjunction with selected sample programs. The Serial Commu-
nication accessory board is shown below in Figure E-1, with its main features identified.

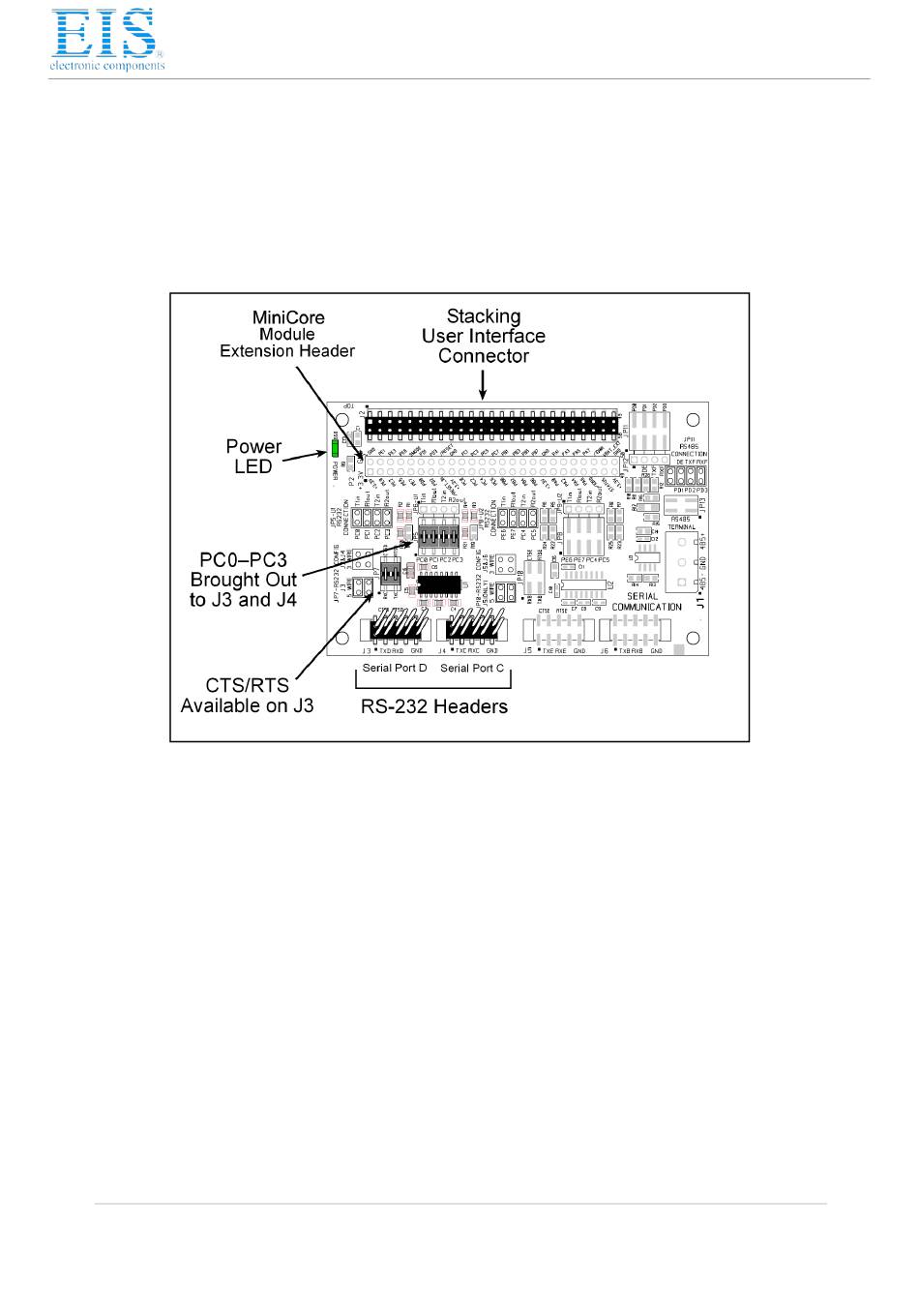

Figure E-1. Serial Communication Accessory Board
E.1.1 Serial Communication Accessory Board Features
• Power Connection
MiniCore header socket connections.
—The power LED lights whenever power is connected to the Serial Communica-
• Power LED
tion accessory board.
• Module Extension Headers
below header J2. Developers can solder wires directly into the appropriate holes, or, for more
flexible development, a 2 × 25 header strip with a 0.1" pitch can be soldered into place. See
Figure E-4 for the header pinouts.
—Serial Ports C and D are brought out as 3-wire RS-232 ports on headers J4
• RS-232 Headers
and J3 respectively. Header J4 can be set up as a 5-wire RS-232 serial port with flow control
provided by Serial Port C.
MiniCore RCM5700/RCM6700 User's Manual
—Power is supplied to the Serial Communication accessory board via the
—The complete pin set of the MiniCore module is duplicated
