D.3 Using the Digital I/O Accessory Board
The Digital I/O accessory board provides the user with MiniCore connection points brought out
conveniently to labeled points below header J2. The pinouts for header socket J2 are shown in

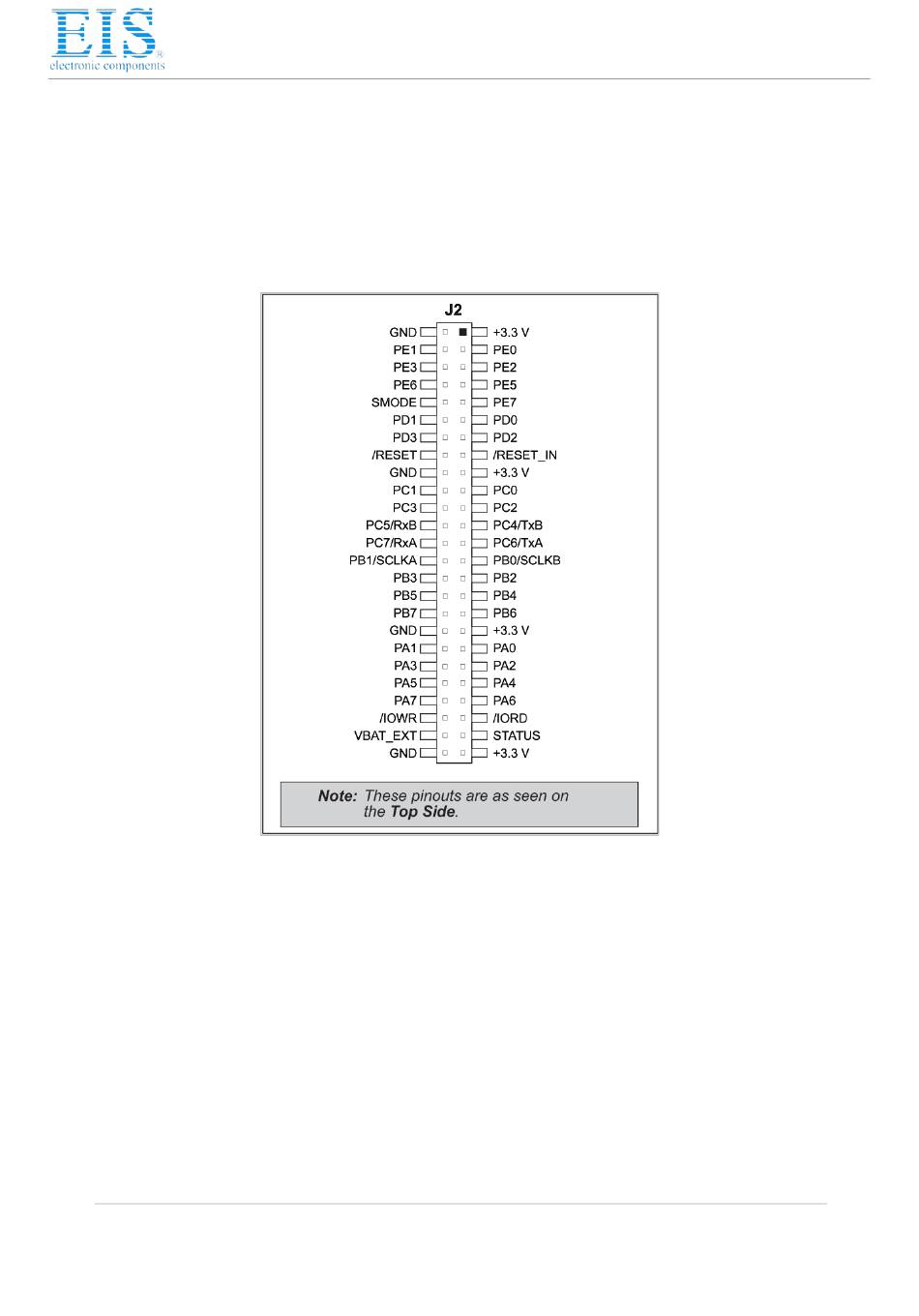

Figure D-4.
MiniCore RCM5700/RCM6700 User's Manual
Figure D-4. MiniCore Boards Pinout
digi.com
78
