It is recommended that you allow for an "exclusion zone" of 0.08" (2 mm) around the
RCM5700/RCM6700 top and bottom and 0.04" (1 mm) around the three non-connector edges
when the RCM5700/RCM6700 is incorporated into an assembly that includes other printed cir-
cuit boards. This "exclusion zone" that you keep free of other components and boards will allow
for sufficient air flow, and will help to minimize any electrical or electromagnetic interference
between adjacent boards. Figure A-2 shows this "exclusion zone" for the RCM5700/RCM6700
model. In the event that you are using a device with additional components installed (such as the
RCM5710, RCM6710, RCM5750, or RCM6750) the exclusion zone in Figure A-2 should be
extended 0.08" (2 mm) beyond the edge of the added components.
MiniCore RCM5700/RCM6700 User's Manual

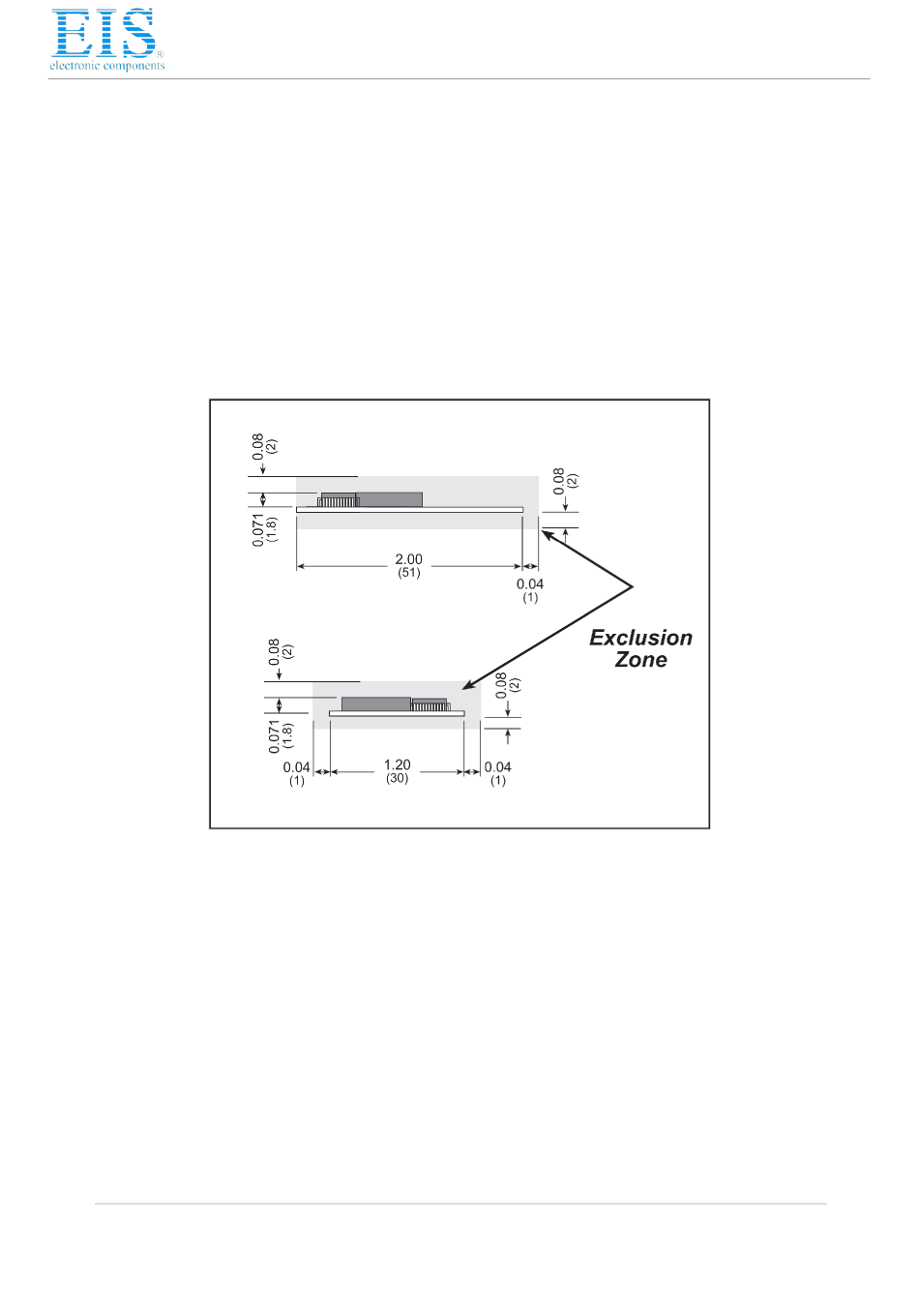

Figure A-2. RCM5700/RCM6700 "Exclusion Zone"
