2.2 Hardware Connections

There are three steps to connecting the Prototyping Board for use with Dynamic C and the
sample programs:
1. Attach the RCM3305 series RabbitCore module to the Prototyping Board.
2. Connect the programming cable between the RCM3305 series RabbitCore module and
the workstation PC.
3. Connect the power supply to the Prototyping Board.
2.2.1 Step 1 — Attach Module to Prototyping Board
Turn the RCM3305 series module so that the Ethernet jack is facing the direction shown in
Figure 2 below. Align the pins from the headers on the bottom side of the module into
header sockets JA and JB on the Prototyping Board.
(RCM3305/RCM3315 look
slightly different)

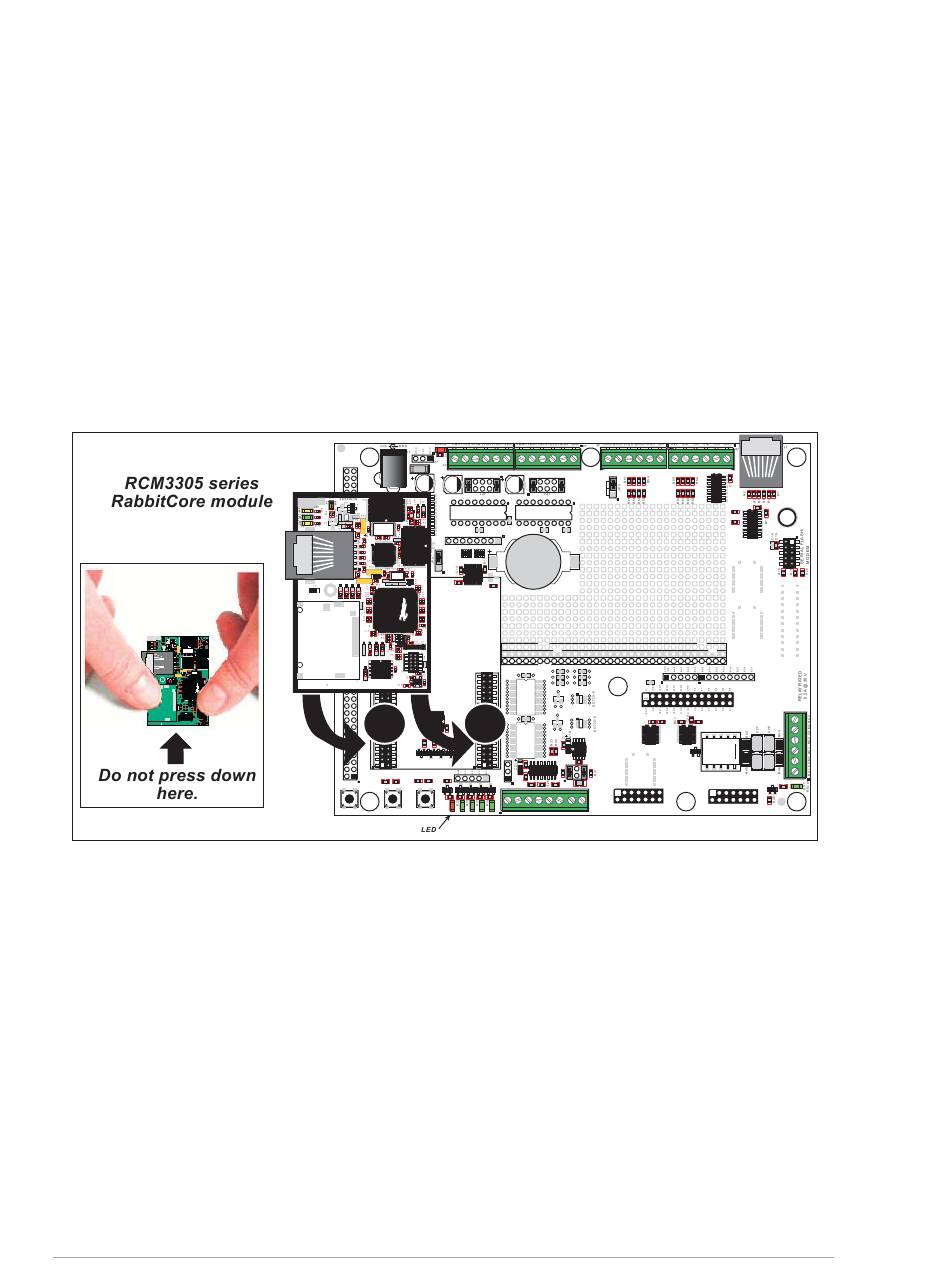

Figure 2. Install the RCM3305/ Series Module on the Prototyping Board
NOTE: It is important that you line up the pins from the headers on the bottom side of the
RCM3305 series module exactly with the corresponding pins of header sockets JA and
JB on the Prototyping Board. The header pins may become bent or damaged if the pin
alignment is offset, and the module will not work. Permanent electrical damage to the
module may also result if a misaligned module is powered up.
Press the module's pins firmly into the Prototyping Board header sockets—press down in
the area above the header pins using your thumbs or fingers over the connectors as shown
in Figure 2. Do not press down on the middle of the RCM3305 series module to avoid
flexing the module, which could damage the module or the components on the module.
Should you need to remove the RCM3305 series module, grasp it with your fingers along the
sides by the connectors and gently work the module up to pull the pins away from the sockets
where they are installed. Do not remove the module by grasping it at the top and bottom
