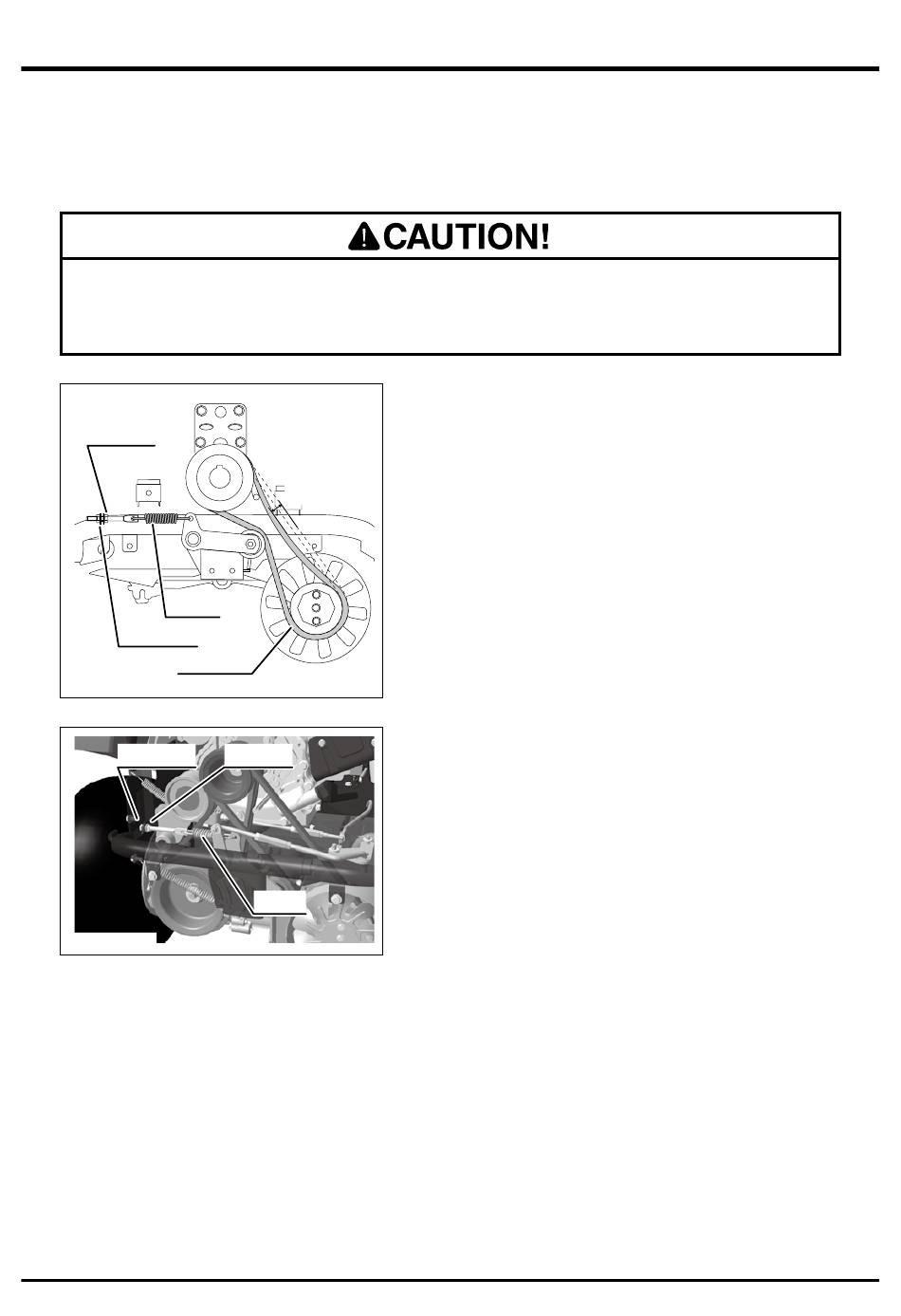

Drive Belt
• Adjust belt tension properly. Inproperly tensioned belt may reduce performance
and its service life.
Lock Nut
Spring
Adjust Nut
Drive Belt
5347M-0507-080E
Adjust Nut
5355M-0507-030E
Maintenance
A
Lock Nut
Spring
1.
Remove upper and lower rear covers.
2.
Check V-belt tension. Push V- belt by finger
and check that deflection at center point A is
in the range of 10 to 20 mm. If it is out of this
range, adjust with adjust nut.
3.
Visually inspect belt. Replace belt if it is
damaged. For replacement, contact your
CANYCOM representative.
4.
Install upper and lower rear covers.
-64-
